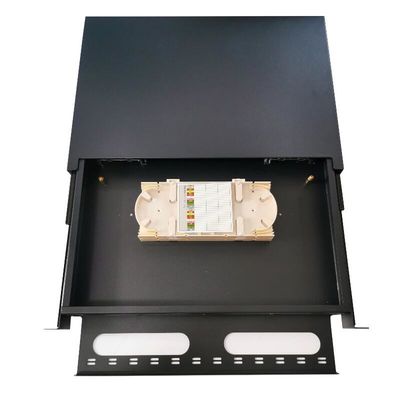

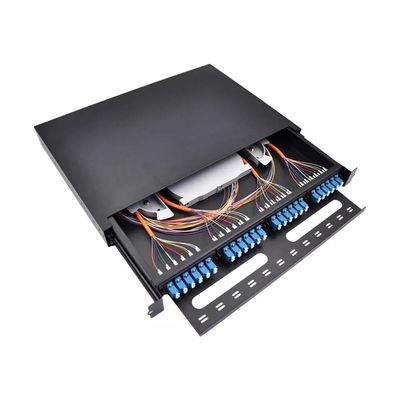

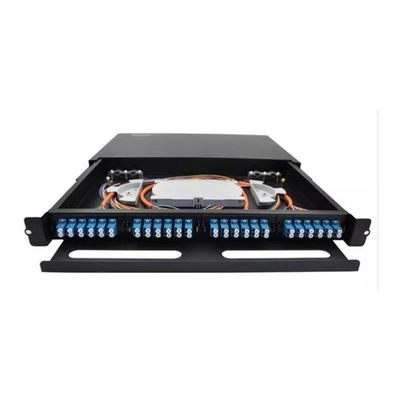

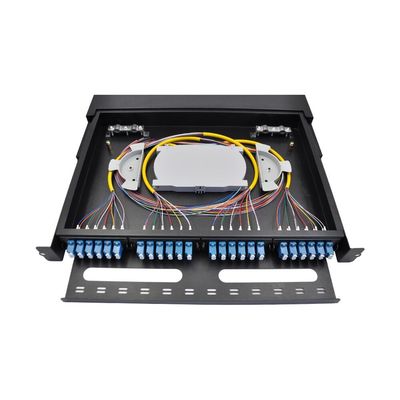

24 Port LC Duplex 48Fibers Patch Panel/Enclosure Sliding Rail type 1U 19" Rack Mounted,Black
Description:
An optical distribution frame (ODF) is a frame used to provide cable interconnections between communication facilities,which can integrate fiber splicing, fiber termination, fiber optic adapters & connectors and cable connections together in a single unit.It can also work as a protective device to protect fiber optic connections from damage.
Rack mount ODF is usually modularity in design with firm structure. It can be installed on the rack with more flexibility according to the fiber optic cable counts and specifications.
This kind of optical distribution system is more convenient and can provide more possibilities to the future variations. Most of the rack mount ODF is 19”,which ensures that they can be perfectly installed on to the commonly used standard transmission rack.
Specification:
|
Parameters |
|
|
Model |
TW-1U4MDA03-LCA |
|
Max. No. of Cores |
48 Cores LC Duplex |
|
Main Body Thick |
1.2mm |
|
Max of Splice Tray |
4pcs |
|
Splice Tray Type |
24 Fibers |
|
Color of Splice Tray |
Black or White |
|
Material |
Cold rolled steel sheet |
|

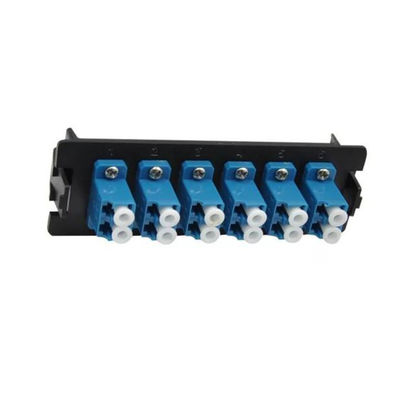

Adapter Panel |
LC,ST,FC,SC |
|
Cassete type |
MPO |
|
Withstanding Voltage (V/min) |
3000 (DC), no breakdown, no flashover |
|
Installation Type |
Rack Mount |
|
Color |
Black |
|
Operating Temperature (°C) |
-40~ +60 |
|
Dimensions (mm) |
430*362.4*44mm
|
|
Weight (kg) |
4kg |
Features:
1. 100% optic test
2. Good exchange ability and good durability;
3. Available in fiber bunch, ribbon fan-out, pigtail available;
4. Meets ISO9001, ROHS and Bell core GR 326-core standards;
5. Customized specifications welcomed.
6. Fast delivery with super high quality
7. Long time after-sales service warranty
8. Customize is available according to the requirements
