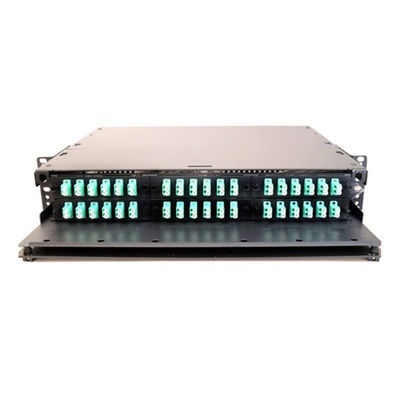

2U LGX Rack Mount Fiber Enclosure 6 Adapter Panel LC UPC Duplex 6 Slots 72F , Unloaded
Description:
2U Patch Panel, additional options include a 1U, 3U and 4U versions.
This is a full LGX compatible patch panel that accommodates LGX adapter plates or LGX MTP/ MPO Cassettes. These units have a pull out tray and offer full access from the front and rear.

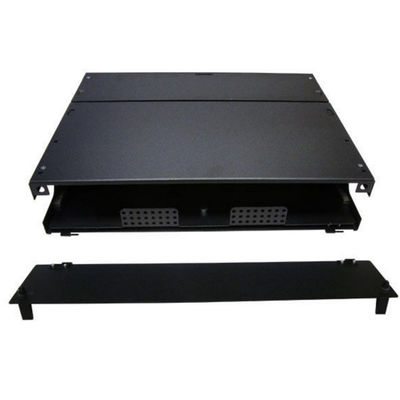

They also feature a full smoked, front hinged access panel along with a hinged access panel in the rear. Come with mounting hardware and cable management accessories.
Specification:
|
Connector Type |
LC,FC,ST,SC or MPO to LC Cassette module |
|
Size |
1U 19inch |
|
Weight |
7kg/pc |
|
Simplex or Duplex |
SC.ST,FC Simplex or LC Duplex or LC Quad |
|
Color |
Black |
|
Material |
Cold Rolled Steel Sheet |
|
Application |
For Cable Distribution |
|
Warranty |
Many years |
Features:
1. LGX Compatible
2. Rack Mountable
3. Holds 6 LGX adapter panels for 12, 24 or 36 Duplex LC Port Configurations
4. 19" Standard Size, Light Weight and Robust Structure
5. Changeable Modules Inside
6. Suitable for both Ribbon and Round Cable
7. Improved design to ensure fiber optic cable bend radius not less than 40mm
8. Powder Coated
9. Smoked Lexan Front Cover

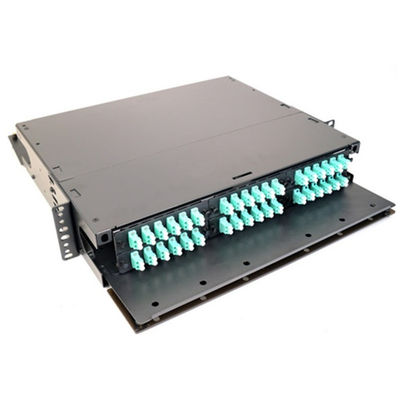

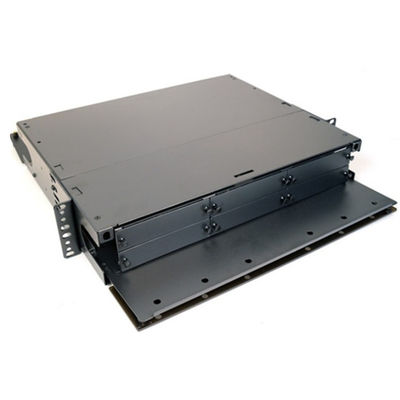

10. Slide-out Tray for Easy Access
11. Front and Rear Hinged Doors
Application:
1. Enterprise network & Datacenter
2. Indoor application
3. Accepts Indoor and Outdoor Pre-terminated cables and MTP/MPO Modules and Splicing
