Splice MPO MTP Patch Panels 144F SC APC 4U Fiber Patch Panel 12 Adapter

1
MOQ
Can be disscussed
Price
Splice MPO MTP Patch Panels 144F SC APC 4U Fiber Patch Panel 12 Adapter
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Cold-rolled Steel Sheet
Size: 433*350*4U
Max Capacity: 144 Core SC
Adapter Panel: 12 Pcs
Main Body's Depth: 1.5mm
Color: Black
Warranty: Many Years
Type: LC, ST, FC Adapter Panel MTP, MPO To LC Cassette Module
High Light:

Splice MPO MTP Patch Panels

,

MPO MTP Patch Panels 144F

,

4U Fiber Patch Panel

Basic Infomation
Place of Origin: Made In China
Brand Name: Twilight Optic or OEM
Model Number: TW-4U12MDA01-SCD
Payment & Shipping Terms
Packaging Details: Standard Carton
Delivery Time: 25-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000pcs/month
Product Description

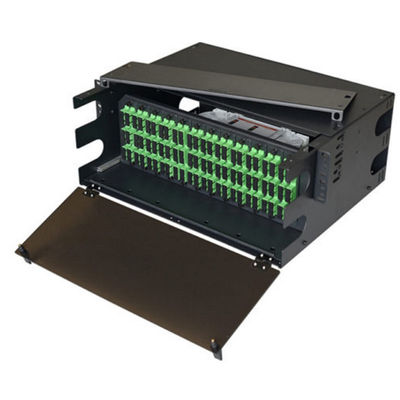

Fiber Patch and Splice Panel High Density Slide-Out 4U 12 Adapter Panel 144F SC APC





Description:

This 4U fiber distribution unit provides high density fiber capacity of up to 288 fibers when utilizing 12 of the LC Quad adapter panels shown and 12 of 24fiber splice trays.

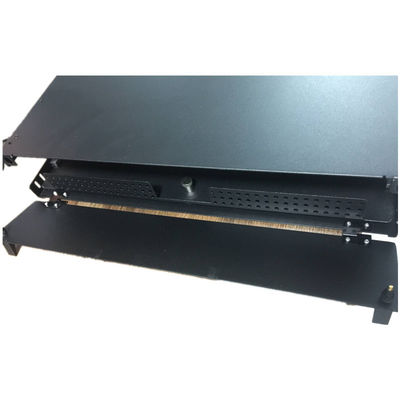

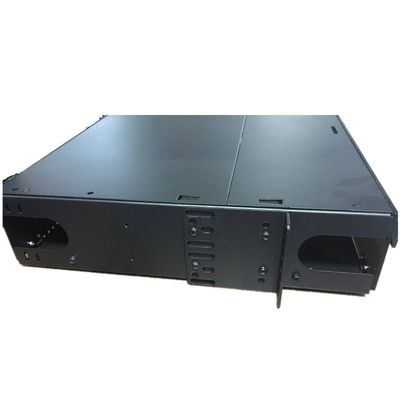

The slide out master panel tray locks into the retracted and fully extended positions. The fiber housing has a split top design, allowing for easy termination access while bridge lances that run along the front of the unit provide easy tie down ability for fiber management entering or exiting the fiber enclosure.



Specification:



Connector Type

LC,FC,ST,SC or MPO to LC Cassette module

Size

4U 19inch

Weight9

15 kg/pc

Simplex or Duplex

LC Quad or SC Duplex

Color

Black

Material

Cold Rolled Steel Sheet

Application

For Cable Distribution

Warranty

Many years




Features:

1. 288 splice capacity
2. Convenient split-top design
3. Durable powder coat finish
4. Locking master panel
5. Increased fiber management

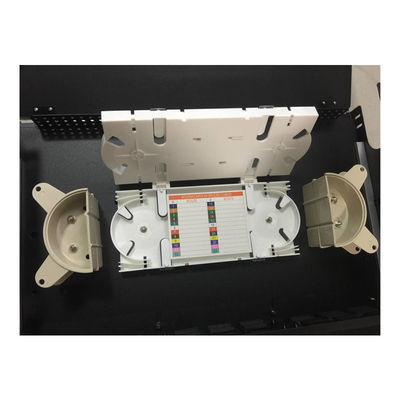

6. Slide out tray design supports storage of splice trays.
7. Supplied with mounting hardware for 19" or 23" mounting.
8. Can be ordered fully terminated with cabling or pigtails,
9. Front lexan door can be customized with custom logo.
10.Black Steel



Splice MPO MTP Patch Panels 144F SC APC 4U Fiber Patch Panel 12 Adapter 0

Splice MPO MTP Patch Panels 144F SC APC 4U Fiber Patch Panel 12 Adapter 1

Splice MPO MTP Patch Panels 144F SC APC 4U Fiber Patch Panel 12 Adapter 2







Splice MPO MTP Patch Panels 144F SC APC 4U Fiber Patch Panel 12 Adapter 3





Splice MPO MTP Patch Panels 144F SC APC 4U Fiber Patch Panel 12 Adapter 4

Splice MPO MTP Patch Panels 144F SC APC 4U Fiber Patch Panel 12 Adapter 5

Splice MPO MTP Patch Panels 144F SC APC 4U Fiber Patch Panel 12 Adapter 6
