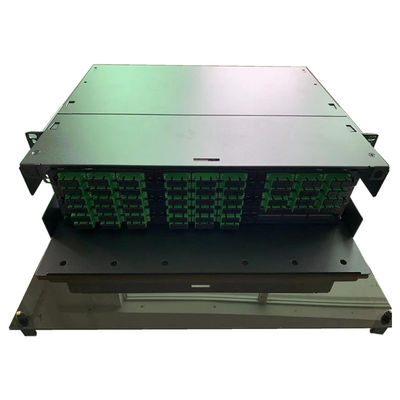

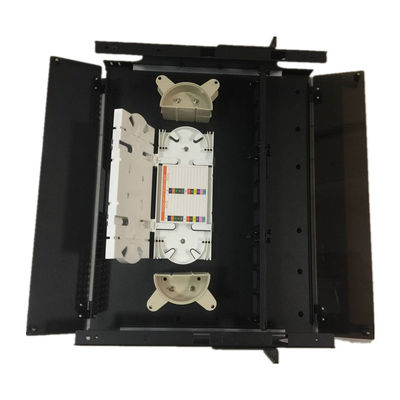

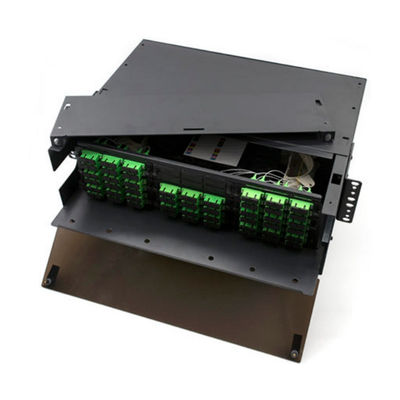

3RU Fiber Patch Panel SC APC 108F Holds 9 LGX Adapter Plates Or 9 MTP/MPO Cassettes
Description:
Designed for high density, our 3U High Density Rack Mount Fiber Patch Panel Enclosure is constructed from 16 gauge steel for performance and durability.
Specification:
|
Connector Type |
LC,FC,ST,SC or MPO to LC Cassette module |
|
Size |
3U 19inch |
|
Weight9 |
12 kg/pc |
|
Simplex or Duplex |
LC Quad or SC Duplex |
|
Color |
Black |
|
Material |
Cold Rolled Steel Sheet |
|
Application |
For Cable Distribution |
|
Warranty |
Many years |
Features:
1. 9 Slots LGX in 3U space
2. Modular with MTP Cassette or Adapter plates
3. Slide-out tray with spring loaded latch
4. Hinged front and rear doors
5. Removable top panel and front faceplate
6. Non-captive side and rear entries for trunks
7. Standard 19" - 23" rack mountable unit
Buying Guide:
1. 3RU, Slide out tray, 9 adapter panel capacity
2. Holds up to (9) ST-M-24 splice trays
3. Max number of Terminations: SC/ST = 108, LC = 216
4. Telecommunication & Premise Installations
Application:
1. Enterprise network & Datacenter
2. Indoor application
3. Accepts Indoor and Outdoor Pre-terminated cables and MTP/MPO Modules and Splicing
