1U MTP MPO Fiber Patch Panel 19 Inch Frame Rack Cabinet 96 Cores Splicing

20
MOQ
Can be disscussed
Price
1U MTP MPO Fiber Patch Panel 19 Inch Frame Rack Cabinet 96 Cores Splicing
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Cold-rolled Steel Sheet
Size: 430*362.4*44mm
Max Capacity: 96 Core
Adapter Panel: 4 Pcs
Main Body's Depth: 1.2mm
Color: Black
Warranty: Many Years
Type: MTP, MPO
High Light:

1U MPO Fiber Patch Panel

,

MPO Fiber Patch Panel

,

MTP Fiber Patch Panel

Basic Infomation
Place of Origin: Made In China
Brand Name: Twilight Optic or OEM
Model Number: TW-1U4MDA03
Payment & Shipping Terms
Packaging Details: Standard Carton
Delivery Time: 15-20 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000pcs/month
Product Description



1U Drawing Type MTP MPO Patch Panels 19 Inch Frame Rack Cabinet 96 Cores Splicing



Description:

1U drawing type Patch Panel is used in data center cabling region, and connected the ports with cable to the back of the panel. it is usually assembled in 19 inch frame rack and cabinet.
Can assemble with LC adapter panel. and it can finish 1U 96 cores splicing.

Specification:
Parameters
Model TW-1U4MDA03
Max. No. of Cores 96 Cors LC
Main Body Thick 1.2mm
Max of Splice Tray 4pcs
Splice Tray Type 24 Fibers
Color of Splice Tray Black or White
Material Cold rolled steel sheet
Adapter Panel LC,ST,FC,SC
Cassete type MPO
Withstanding Voltage (V/min) 3000 (DC), no breakdown, no flashover
Installation Type Rack Mount
Color Black
Operating Temperature (°C) -40~ +60
Dimensions (mm)
430*362.4*44mm
Weight (kg) 4kg



Technical Features:
◆ Drawing type design, with 3 flexible guide rail, operate more fluently and flexibly;
◆ Can install 4 pcs adapter panel, and manage 96cores max;
◆ Usually assembled with 2 layers fusion splice plates with ears, and can splice 48 cores accordingly. If for splicing 96 cores, we can provide 4pcs thin fusion splice plates;accordingly.
If for splicing 96 cores, we can provide 4pcs thin fusion splice plates;
◆ Produced with high-quality cold-rolled steel sheet, the main body's depth is 1.2mm;
◆ With cable management plate, more cabling ways.

1U MTP MPO Fiber Patch Panel 19 Inch Frame Rack Cabinet 96 Cores Splicing 0
1U MTP MPO Fiber Patch Panel 19 Inch Frame Rack Cabinet 96 Cores Splicing 1

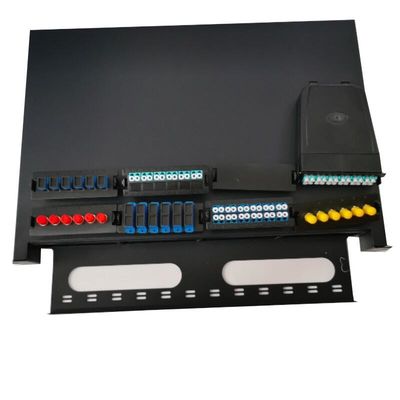

1U MTP MPO Fiber Patch Panel 19 Inch Frame Rack Cabinet 96 Cores Splicing 2

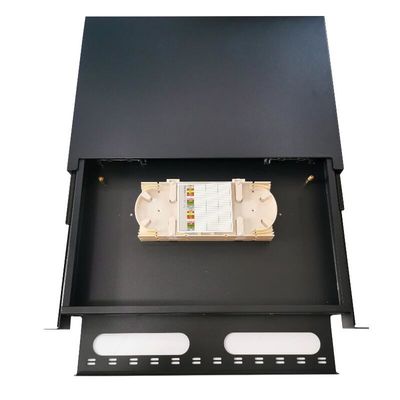

1U MTP MPO Fiber Patch Panel 19 Inch Frame Rack Cabinet 96 Cores Splicing 3

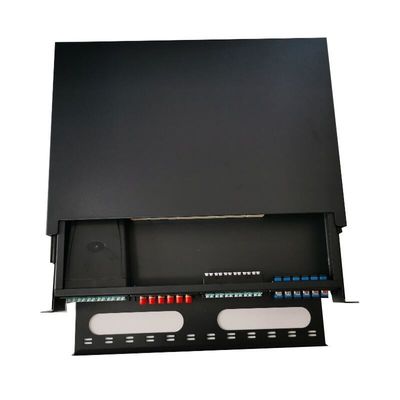

1U MTP MPO Fiber Patch Panel 19 Inch Frame Rack Cabinet 96 Cores Splicing 4
