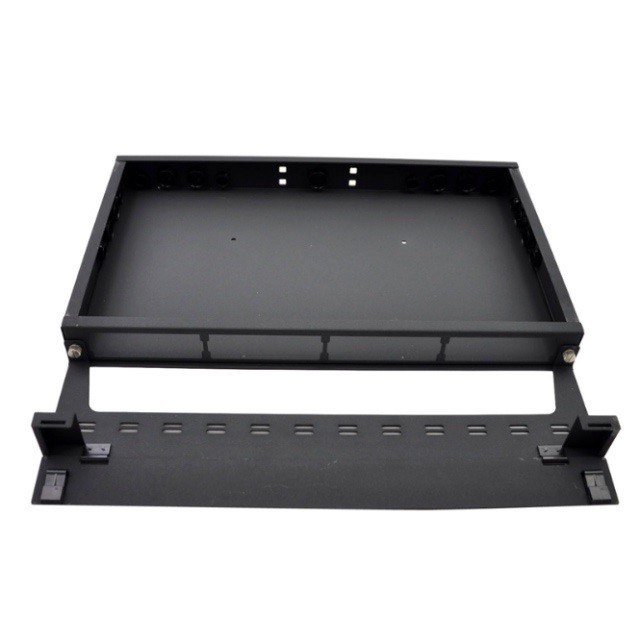

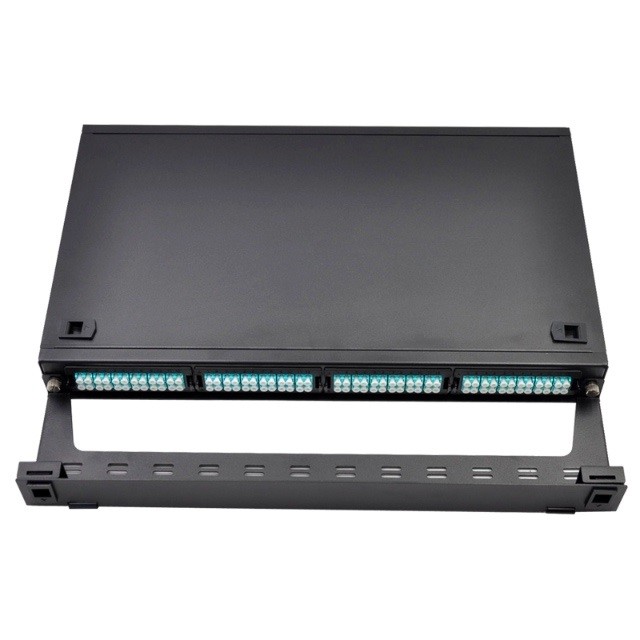

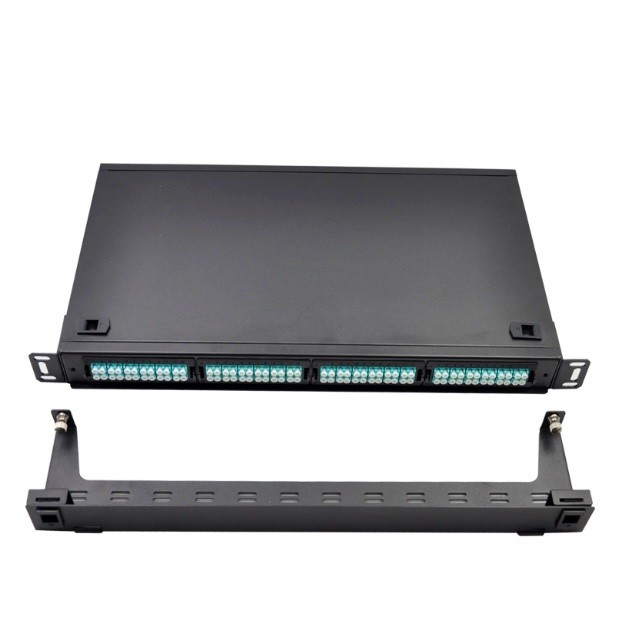

1U 96F MTP MPO Patch Panels for MTP/MPO to LC Fiber Cassette Module
Description:
Specification:
Parameters | |
| Model | TW-1U4MDA02 |
Max. No. of Cores | 96 Cors LC |
Main Body Thick | 1.5mm |
Max of Splice Tray | 4pcs |
Splice Tray Type | 24 Fibers |
Color of Splice Tray | Black or White |
Material | Cold rolled steel sheet |
Adapter Panel | LC,ST,FC,SC |
Cassete type | MPO/MTP to LC |
Withstanding Voltage (V/min) | 3000 (DC), no breakdown, no flashover |
Installation Type | Rack Mount |
Color | Black |
Operating Temperature (°C) | -40~ +60 |
Dimensions (mm) | 430*354.1*44mm |
Weight (kg) | 4kg |
Features:
♦ It is made of high quality cold rolled steel plate with a thickness of 1.5mm.

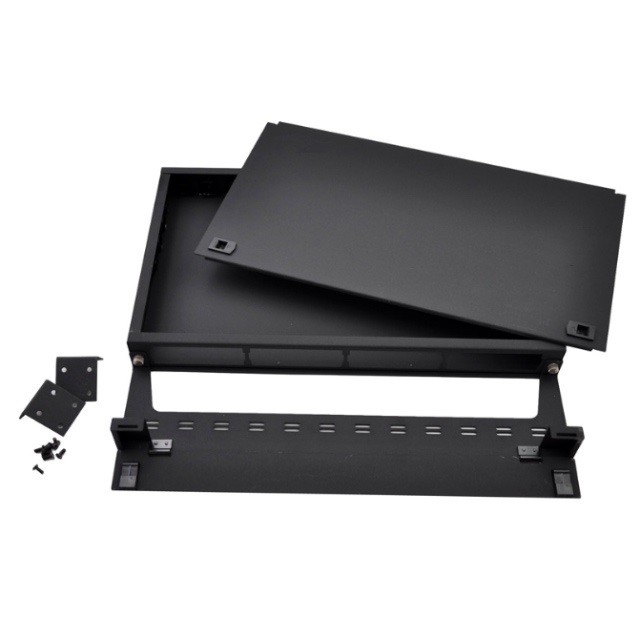

♦ No burr, no bubbles, no screw fixing, clip type top cover, no tool opening.
♦ After strict degreasing, pickling, rust-proof phosphating and pure water cleaning, which meets RoHS environmental protection standards.
♦ Suitable for 19 inch standard frame.
♦ Compact design for space saving.

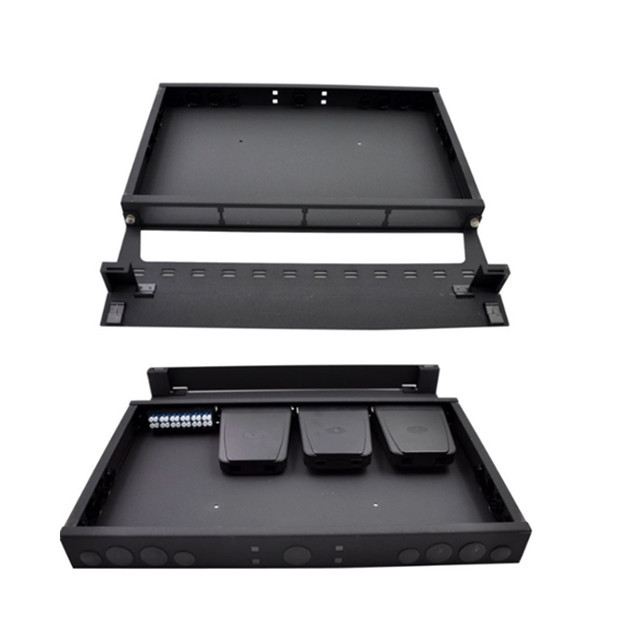

♦ Modular design, which can be used in multiple module boxes and configured in MPO-LC Type Distribution Box.
♦ The MPO ribbon multi-core fiber is divided into multiple lc interfaces to realize parallel conversion of MPO-LC.
Application:
1. CATV,Metro test equipment
2. Telcommunication networks
3. Local area networks(LAN)
4. Wide area networks(WAN)
5. Premise installations
