MPO Optical Fiber Termination Box Splice Patch Panel 24 Port SC Simplex
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Cold-rolled Steel Sheet | Size | 430*362.4*44mm |
|---|---|---|---|
| Max Capacity | 24 Core SC | Adapter Panel | 4 Pcs |
| Main Body's Depth | 1.2mm | Color | Black |
| Warranty | Many Years | Type | MTP, MPO |
| High Light | MPO Optical Fiber Termination Box,Optical Fiber Termination Box Splice,Patch Panel 24 Port SC |
||
Product Description

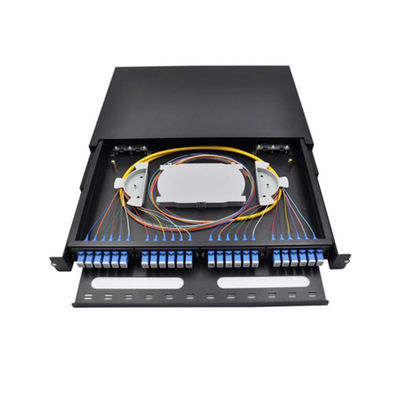

19" Rack Optical Fiber Termination Splice Metal Box 24 Port SC Simplex 4 Adapter Panel
Description:
Cablenet can supply a range of quality fibre optic patch panels. They cover a wide range of fibre connections from 12 fibres up to 96 fibres.
They feature a sliding tray mechanism and internal cable management, including cable clamps and colour-coded splice trays.
Specification:
|
Parameters |
|
|
Model |
TW-1U4MDA03-SC |
|
Max. No. of Cores |
24 Cores SC |
|
Main Body Thick |
1.2mm |
|
Max of Splice Tray |
4pcs |
|
Splice Tray Type |
24 Fibers |
|
Color of Splice Tray |
Black or White |
|
Material |
Cold rolled steel sheet |
|
Adapter Panel |
LC,ST,FC,SC |
|
Cassete type |
MPO |
|
Withstanding Voltage (V/min) |
3000 (DC), no breakdown, no flashover |
|
Installation Type |
Rack Mount |
|
Color |
Black |
|
Operating Temperature (°C) |
-40~ +60 |
|
Dimensions (mm) |
430*362.4*44mm
|
|
Weight (kg) |
4kg |
Features:
1) Standard size, light weight and reasonable structure
2) Splice tray inside changeable
3) Suitable for ribbon and single fiber
4) Various panel plate to fit different adapter interface
5) Front mark on the plate is easy for identification and operation
6) Easy for management and operation
7) Come with fiber optic pigtails and adapters
