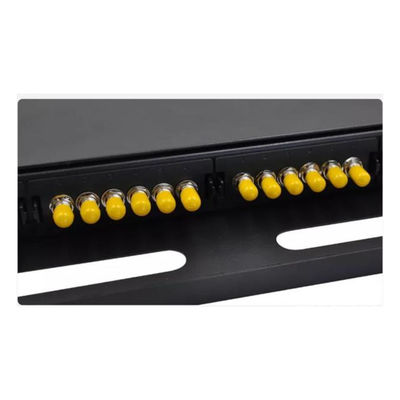

24 Port Fiber Optic ODF Simplex 24F with ST Patch Panel Face Plate 6 slot
Description:
1U 24 ports fiber optic patch panels are a vital part of any fiber-optic network. A fiber patch panel can save you valuable input ports on expensive networking equipment, with types of rack-mount and wall-mount, 12 to 24 ports.
Instead of pulling out a ton of wires and replacing them, you simply connect to the new module. If you have demands in larger ports, we also accept customized service. If you have any demands in fiber optic termination panel.
Specification:
|
Parameters |
|
|
Model |
TW-1U4MDA03-ST |
|
Max. No. of Cores |
24 Cores ST |
|
Main Body Thick |
1.2mm |
|
Max of Splice Tray |
4pcs |
|
Splice Tray Type |
24 Fibers |
|
Color of Splice Tray |
Black |
|
Material |
Cold rolled steel sheet |
|
Adapter Panel |
LC,ST,FC,SC |
|
Cassete type |
MPO |
|
Withstanding Voltage (V/min) |
3000 (DC), no breakdown, no flashover |
|
Installation Type |
Rack Mount |
|
Color |
Black |
|
Operating Temperature (°C) |
-40~ +60 |
|
Dimensions (mm) |
430*362.4*44mm |
|
Weight (kg) |
4kg |

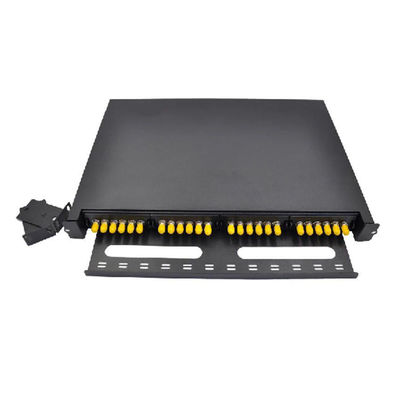

Standard 19” 1U patch panel for network racks.

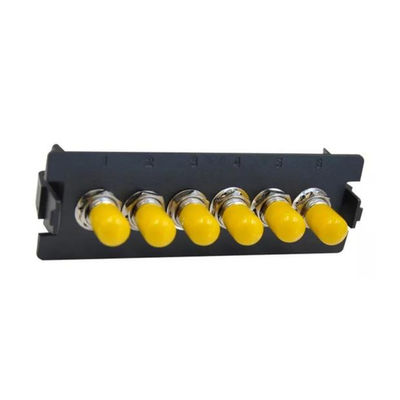

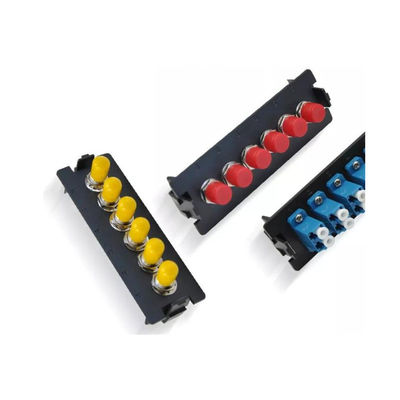

Easily changeable front adapter panels for 24 SC simplex, SC duplex or LC duplex adapters.

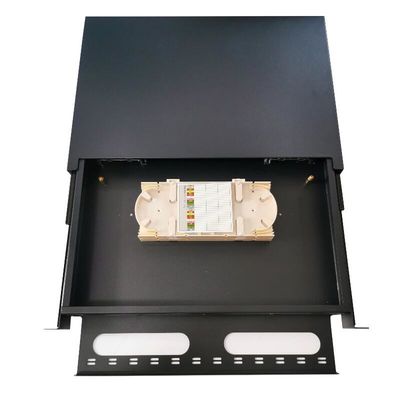

2pcs of 12/24F splice trays.
High quality finish, no sharp edges.
Recessed adapter panels giving optical cable better bend radius
