MPO/MTP Slider Drawer Patch Panel 96FO 1u 4 Miniplate LC Duplex 12 Slot For Data Center
Description:
MPO/MTP fiber optic patch cords are with MPO/MTP fiber optic connectors.
They are several fiberglass connections in one such patch cord, for example, 4 fiber, 8 fiber, 12 fiber, etc.

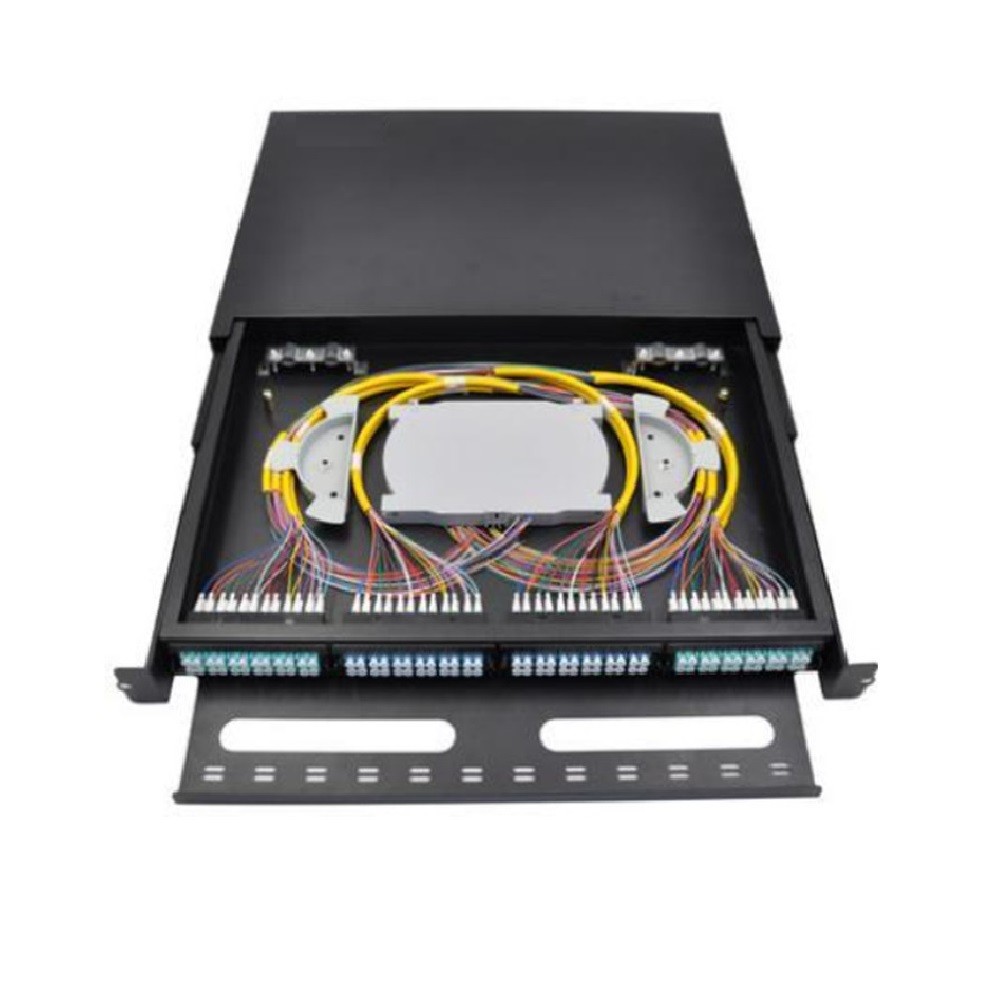

MPO 1U Patch Panel is used in the data center cabling region and connected the ports with cable to the back of the panel.It is usually assembled in 19 inch frame rack and cabinet.
You can assemble with 4 pcs dapter panel, and it can reach to 1U 96 cores splicing.
Specification:
|
Parameters |
|
|
Model |
TW-1U4MDA03-SC |
|
Max. No. of Cores |
96 Cores LC Duplex |
|
Main Body Thick |
1.2mm |
|

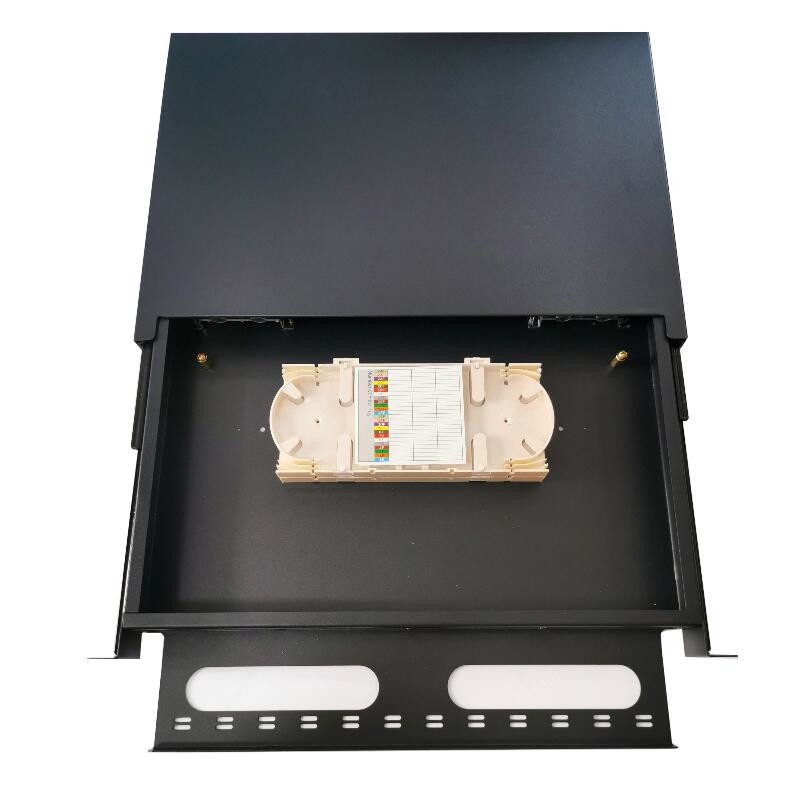

Max of Splice Tray |
4pcs |
|
Splice Tray Type |
24 Fibers |
|
Color of Splice Tray |
Black or White |
|
Material |
Cold rolled steel sheet |
|

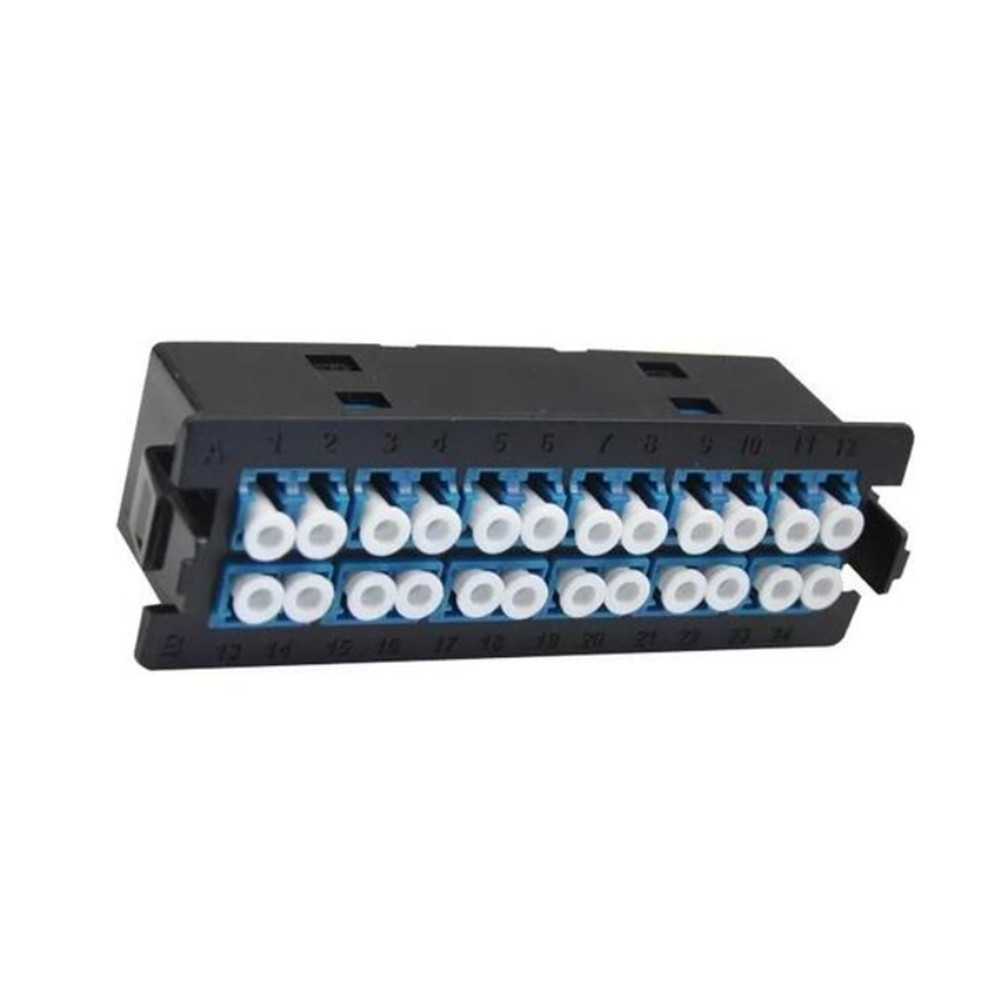

Adapter Panel |
LC,ST,FC,SC |
|
Cassete type |
MPO |
|
Withstanding Voltage (V/min) |
3000 (DC), no breakdown, no flashover |
|
Installation Type |
Rack Mount |
|
Color |
Black |
|
Operating Temperature (°C) |
-40~ +60 |
|
Dimensions (mm) |
430*362.4*44mm
|
|
Weight (kg) |
4kg |
Application:
1. CATV, metro Test equipment
2. Telecommunication networks
3. Local area networks (LAN)
4. Wide area networks (WAN)
5. Premise installations
