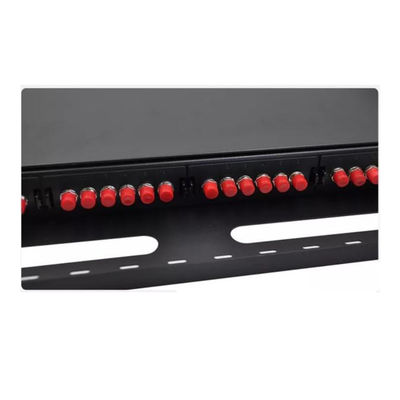

High Density 19 Inch Rack Mount 24 Port FC Fiber Optic Patch Panel for Fiber Cables
Description:
| Parameters | |
| Model | TW-1U4MDA03-FC |
| Max. No. of Cores | 24 Cores SC |
| Main Body Thick | 1.2mm |
| Max of Splice Tray | 4pcs |
| Splice Tray Type | 24 Fibers |
| Color of Splice Tray | Black or White |
| Material | Cold rolled steel sheet |
| Adapter Panel | LC,ST,FC,SC |
| Cassete type | MPO |
| Withstanding Voltage (V/min) | 3000 (DC), no breakdown, no flashover |
| Installation Type | Rack Mount |
| Color | Black |
| Operating Temperature (°C) | -40~ +60 |
| Dimensions (mm) |
430*362.4*44mm
|
| Weight (kg) | 4kg |
