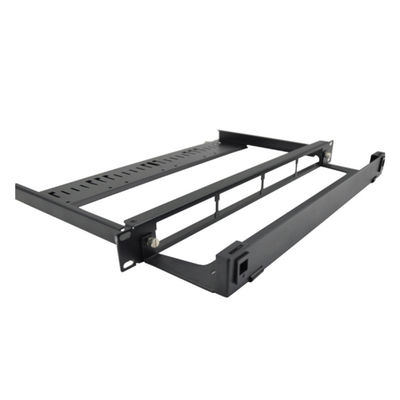

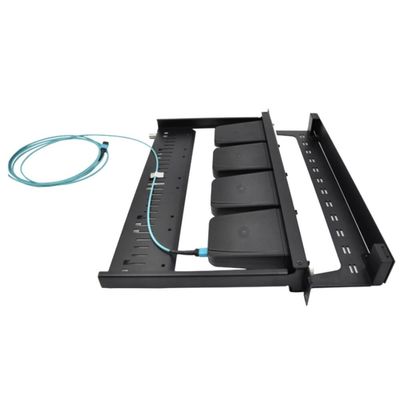

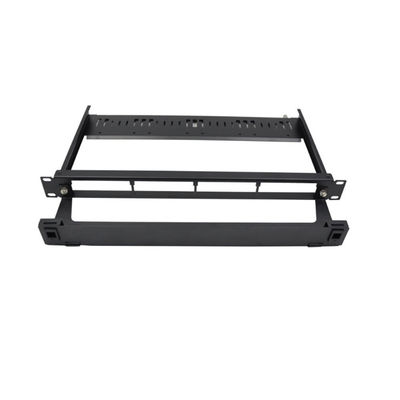

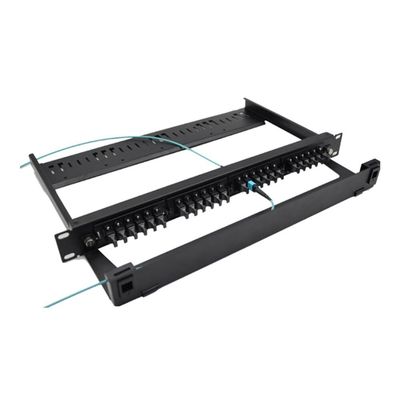

1U Simply Type Rack Mount Fiber Enclosure 96 Core 4 MPO Cassettes
Description:
Specification:
|
Parameters |
|
| Model |
TW-1U4MDA01-A |
|
Max. No. of Cores |
96 Cors LC |
|
Main Body Thick |
1.5mm |
|
Max of Splice Tray |
4pcs |
|
Splice Tray Type |
24 Fibers |
|
Color of Splice Tray |
Black or White |
|
Material |
Cold rolled steel sheet |
|
Adapter Panel |
LC,ST,FC,SC |
|
Cassete type |
MPO/MTP to LC |
|
Withstanding Voltage (V/min) |
3000 (DC), no breakdown, no flashover |
|
Installation Type |
Rack Mount |
|
Color |
Black |
|
Operating Temperature (°C) |
-40~ +60 |
|
Dimensions (mm) |
430*338.5*43.6MM |
|
Weight (kg) |
4kg |
Features:
1. Maximizes density with up to 96 fiber connections in 1U for efficient utilization of rack space.
2. Allows for an easy upgrade path moving 40GbE to 4x 10GbE or 100GbE to 4x 25GbE connectivity.
3. Provides reduced overall insertion loss with low channel to channel variability for improved channel link loss performance.
4. Improved reliability and quick deployment to reduce installation time and cost.
Storage and installation
1. Store at -0 to +70 °C
2. Install at -0 to +50 °C
3. Operate at : -20 to +60 °C
4. Fitting : designed for 1 unit EIA 19″ rack mount.
Application:
High Density 96Fibers 1U 19” Breakout Fiber Patch Panel are used in high-density network applications as specified in the Data Center Cabling for cross connects in main distribution,
horizontal distribution, and equipment distribution areas.
