Name: Pre Terminated Outlet Kit PTO Match Fiber Distribution Patchcord
Brand: Hunan Foconnec Technology Co., Limited
SKU: TW-PTO
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Fiber Optic Wall Outlet Distribution Box

Outlet Port: 2,4

Cable: Indoor Cable,outdoor Armoured Cable

Cable Count: 1,2,4

Cable Material: LSZH

Cable Colour: White,Blue,Black

Adpter Type: SC,LC

Packaging Dimensions: 270x265x60mm

Highlight:

PTO Match Fiber Distribution Patchcord

Pre Terminated Outlet Kit

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: Twilight Optic

Model Number: TW-PTO

Payment & Shipping Terms

Packaging Details: Inner box and carton box

Delivery Time: 7-10 working days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 1000pcs per week

Gallery

Pre Terminated Outlet Kit PTO Match Fiber Distribution Patchcord

Product Description

Pre-Terminated Outlet kit PTO Match Fiber Distribution Patchcord

Description:

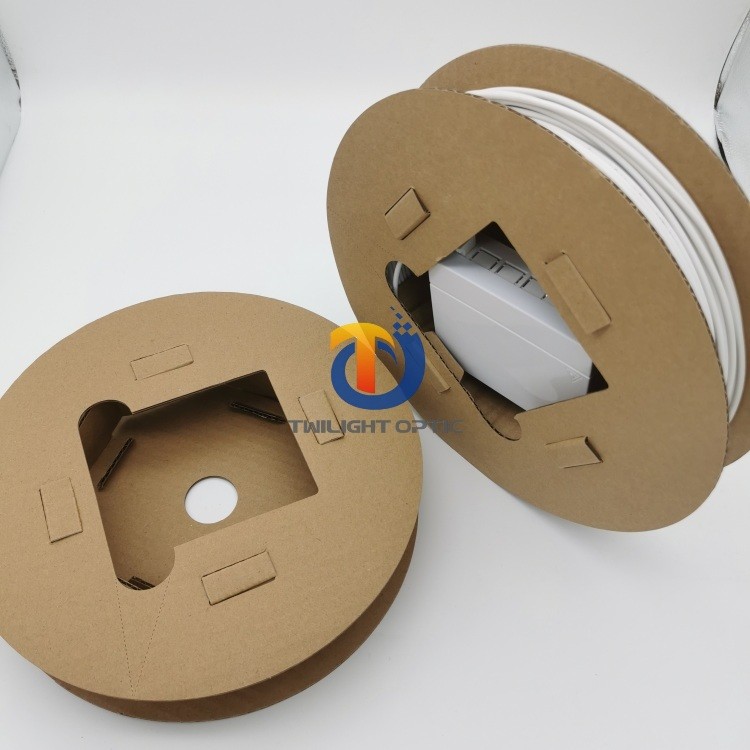

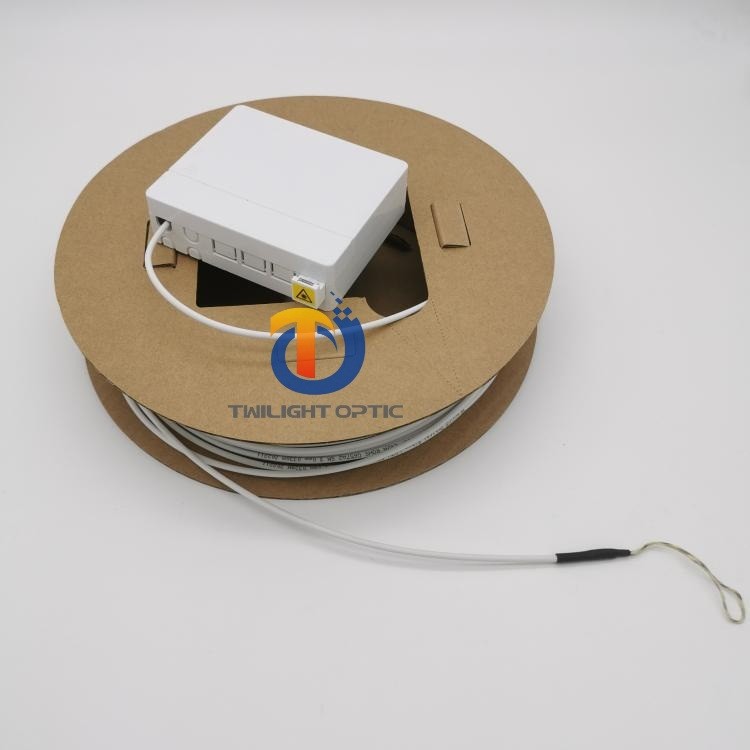

The Pre-Terminated Outlet kit (PTO) is a product configured for speed and ease of installation in Fiber to the Home (FTTH) and Fiber to the Business (FTTB) deployments. The PTO consists of a low-profile fiber optic outlet box loaded with adapters and a pre-terminated length of cable, conveniently packaged with a cable spool inside a protective carton. With the PTO, installing the last drop cable and fiber optic outlet in a FTTx deployment is a very simple and fast process. The installer simply removes the spool-loaded cable from the carton and attaches the pre-terminated outlet to the wall. The PTO outlet is mounted to the wall using screws, without opening the outlet and disturbing the fiber terminations inside. Alternatively, the PTO can be snapped onto a standard DIN rail. PTO installation does not require any special tools or skills, and eliminates the need for termination or splicing in the outlet. The result is a decrease in the time, cost and failure rate of installations per customer.PTO installation does not require any special tools or skills and eliminates the need for termination or splicing in the outlet. The result is a decrease in the time, cost and failure rate of installations per customer.

Features:

• SC or LC connectors and shuttered adaptors

• Available in UPC and APC end face finish

• Singlemode G657a2 fiber, others o request

• Fast tool less installation

• 3mm indoor LSZH cable, others on request

• Factory terminated and 100% tested

• Different cable lengths

• 1, 2 or 4 fibers

• Wide temperature range

• RoHS compliant

Specification:

			Parameter
			Value
			Remark

			Size (H×W×D)
			100×80×30mm
			HxWxD

			Material
			Plastic

			Color
			(RAL9001)

			Storage of fibers
			G657A1 or G657A2

			Splice Capacity
			1,2,4 cores

			Splice method
			Fusion splice
			40mm-45mm sleeves

			Adapter ports
			SC or LC Duplex

			Input cable
			3mm or figure 8 (2*3mm)
			from side or bottom

			Installation Models
			Wall Mounted

Production Images
Packing Images

Company Information

Twilight Optic Established in 2008, is a professional Hitech enterprise engaged in manufacture and distribution of fiber optic products . Main products including fiber optic patch cord,pigtail, PLC splitter,adapter,FBT coupler,attenuator,connector,media converter ,patch panel, splice closure etc. Which are applicate in Fiber optic telecommunications, LAN,FTTH,CATV&CCTV,High speed transmission systems
