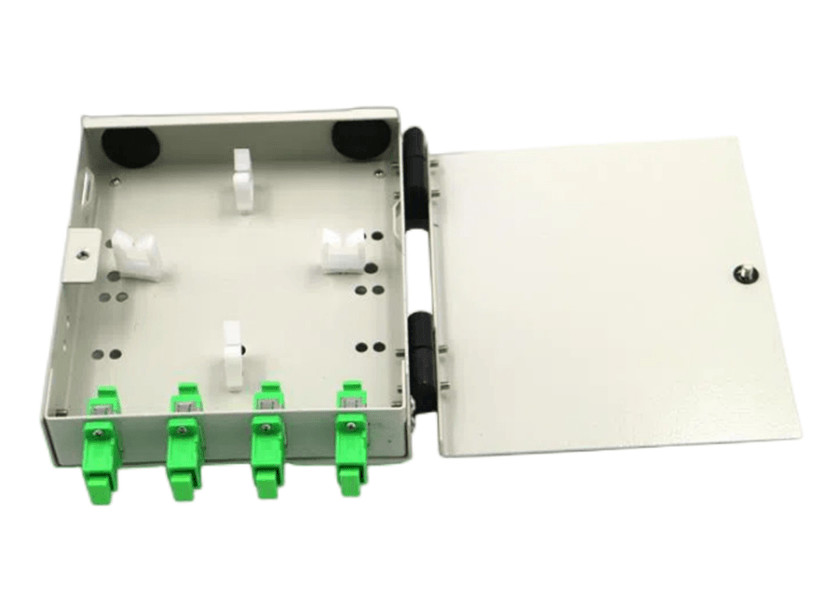

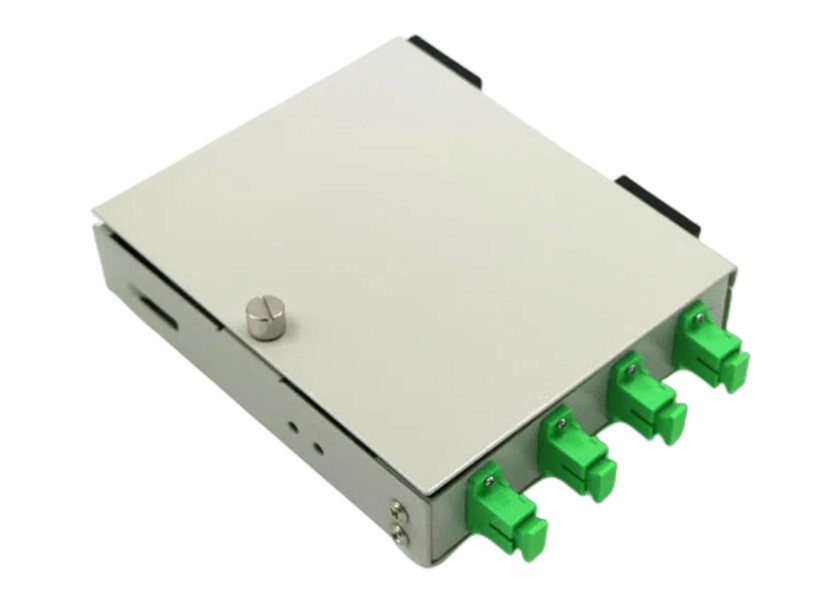

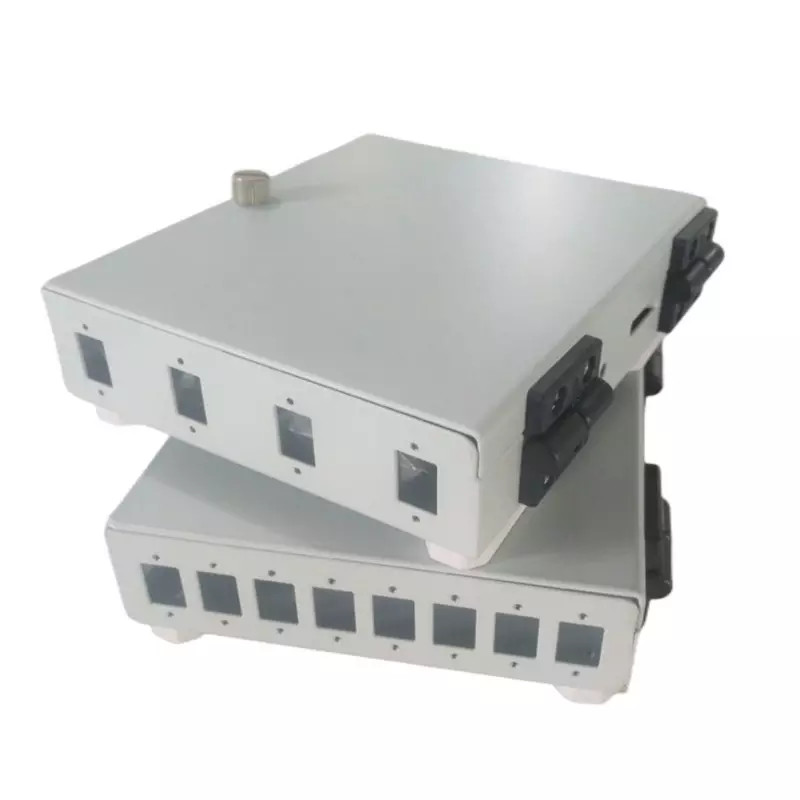

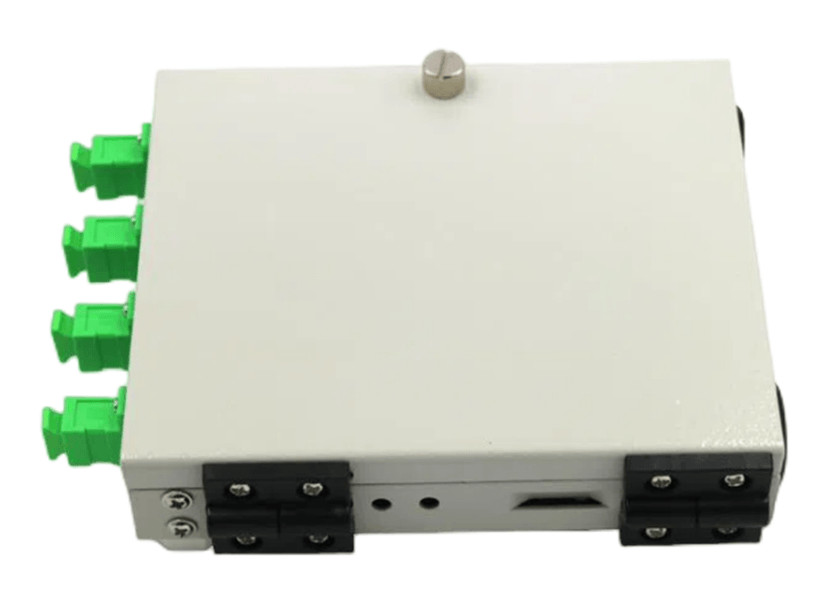

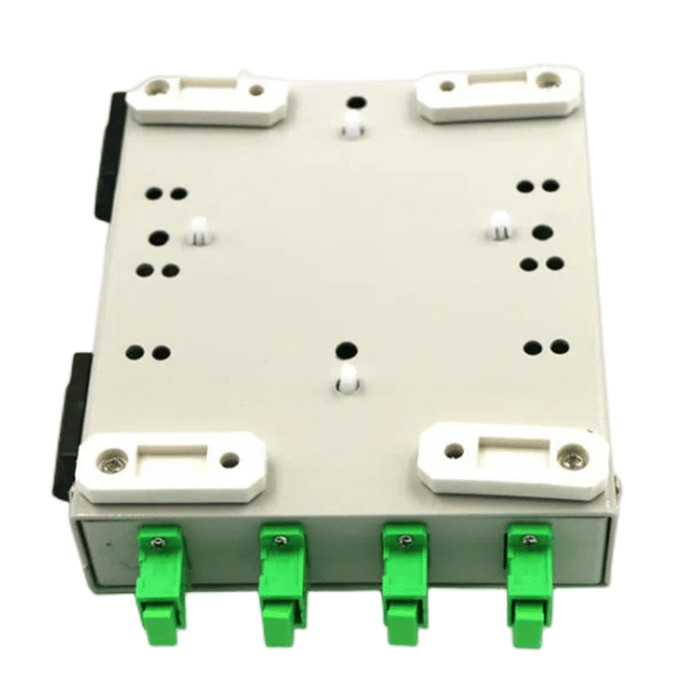

Mini Wall Mount Clamshell SC 4Port Fiber Optic Termination Box Cold-roll Steel
Description
The product is used in the end termination of residential building and small independent building,to fix and splice with pigtails.The Mini Fiber Distribution Frame can be applied in the network system, FTTH/FTTD and DSL. Also, each unit comes with fiber adaptors, cable mounting accessories and protection sleeve. For any hybrid combination on the adaptor plate, please contact us for details.
| Name | Fiber Optic Termination Box MINI Wall-mount 4/8Port |
| Adapter | SC/LC/ST/FC |
| Material | Cold-roll Steel |
| Color | Light Gray |
| Dimension | 115*135*42MM |
| Mounting Type | Wall Mount |
| Max Capacity | SC 4Ports, LC 8ports |
| Cable Ports | 2Inlet Ports, 4Outlet Ports |
|
cable diameter(mm)
|
5-12mm |
|
Net weight (kg)
|
0.4
|
Features
A. Small size, light weight, good-looking appearance;
B. Installed on the wall, with mechanical protection function;
C. Max capacity is 4-8 cores,and 4-8 adapter outputs,available for FC,SC,ST adapter.
Technical Index
► Fiber radius of curvature: ≥30mm
► Optical disk additional loss: ≤ 0.01dB
► Temperature Range: - 10°C ~ + 80°C
► Anti lateral pressure: ≥2000N / 10 cm
► Shock resistance: ≥20N.m
| Material | Cold Rolled Steel Sheet |
| Size (mm) L×W×H |
115*135*42
|
| Cable Diameter (mm) | 5-12mm |
| Inlet/Outlet Port | 2/4 |
|
Capacity
|
4 (single core)
|
| Net Weight (kg) | 0.49 |
| Painting Method | Electrostatic Painting |
| Color | Light Gray |
|
Model
|
TW-FTB-04A
|
|
Main body
|
1 set
|
|
M4x25 Self -tapped screws/plastic expansion screws
|
4 set
|
|
60mm heat-shrink tube
|
4 pcs
|
|
M2x5 Round screw
|
8 pcs
|
|
Cable tie:3*100
|
4 pcs
|
|
13-19mm Stainless steel throat buckle
|
1 pcs
|
|
Bare fiber protection sleeve( 400MM)
|
1 pcs (optional)
|
|
Instruction
|
1 pcs
|
3. Put the splicing cable and pigtails to the slot of special splice tray.
4. Coil the excess cable in the special splice tray,fix them with nylon cable tie,and then insert the end pigtail into the adapter at the exit.
5. Tighten the adapters, lead the pigtails out through the box.(optional for FC,SC,ST adapters)
6. Close the cover, tighten the specific Screws, finish installation.
