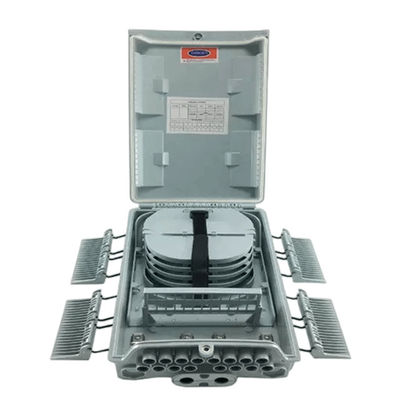

16Port 120F Fiber Optic Terminal Box Aerial-hanging Wall-mount SC/LC/FC/ST
Description
FATB-0416A fiber access termination box is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
| Name | 5trays 120Fibers 16Ports FATB Fibre Optik Distribution Enclosure |
| Use | FTTH FTTX FTTB Solutions |
| Application Type | Indoor/Outdoor |
| Installation Way | Wall-mount / Pole-mount / Aerial-hanging |
| Connector Type | SC/LC/FC/ST |
| Fiber Type | SM / MM (OM1, OM2, OM3, OM4) |
| Color | Grey/Black |
| Material | PC+ABS |
| Max Capacity | 120Fibers (5trays x 24F), PLC Splitter (2pcs 1x8) |
| Weight | 1.85kgs |
Features
► Water-proof design with IP-65 Protection level.
► Integrated with flap-up splice cassette and adapter holder.
► Maximum 120F splice capacity, stainless anti-rust bolts and nuts.
► Easy for maintenance and expansion.
► Fiber bend radius control more than 40mm.
► 180 degree access with buckled lock structure.
► 2pcs of 1*8 PLC splitter can be installed.
► 16 pcs of mechanical ports for 3-7mm drop cable.
► 1 mid-span cable entrance(10-16.5mm) for uncut cable and 2 reserved cable entrances for distribution cable gland(8-13.5mm).
Configuration
|
Material |
PC+ABS |
| Size | 340*220*95mm |
|
Max Capacity |
Splice 120 Fibers (5 trays x 24F) |
| PLC Splitter 2pcs of 1x8(SC) | |
| Nos of Adapter | 24pcs SC/UPC or SC/APC |
|
Weight |
1.85kgs |
| Color | Grey/Black |
Application
► Wall-mounted Installation
► Pole-mounted Installation
► Aerial-hanging Installation
► Suitable for 2x3mm indoor FTTH drop cable and outdoor 4-7mm figure-8 self-supporting drop cable
Standard Accessories
♦ Splice cassette and cable management tool
♦ Installation nuts and bolts
♦ Protection sleeves
♦ Hose clamp
♦ Cable tube
♦ Key
♦ Wrench
♦ Rubber seal for cable entrance
Optional Accessories
♦ Pole mounted Kits
Details Picture
