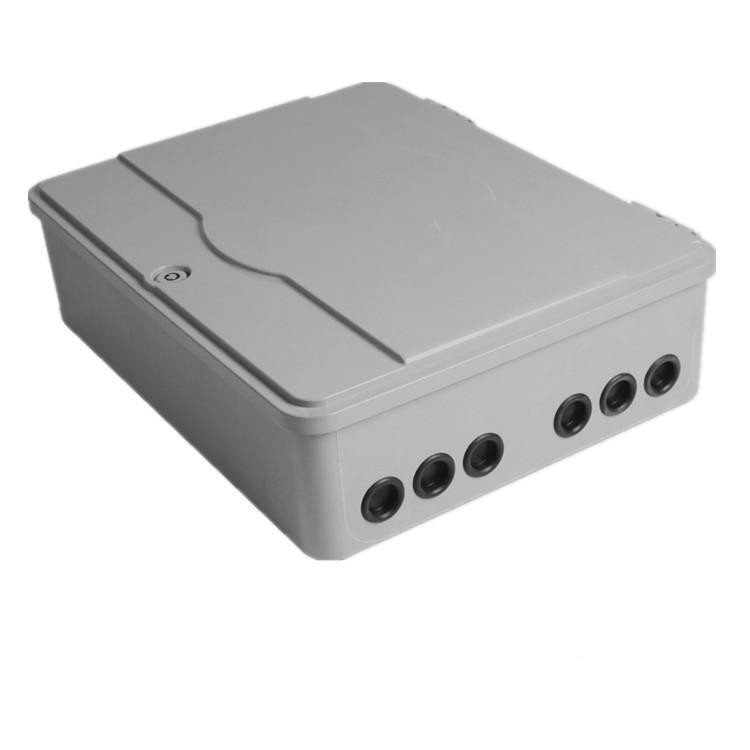

Smc 72 Core Outdoor Optic Fiber Distribution Box Waterproof Ftth Box
SMC Fiber Optic Distribution Box / Fiber Splitter Box is used as a termination point for the feeder cable to connect with drop
cable. The fiber splicing, splitting, distribution can be done in this box, and meanwhile, it provides solid protection and
management for the FTTx network building.
It is mainly used at user access points in FTTH-ODN network.
It can be divided into indoor and outdoor type according to the installation scenarios, as well as distribution type
and optic split type according to the functions.
Characteristics
• High strength composite material (SMC), good mechanical performance, elegant appearance, sturdiness and durability

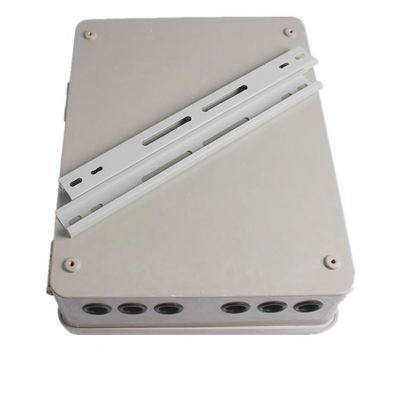

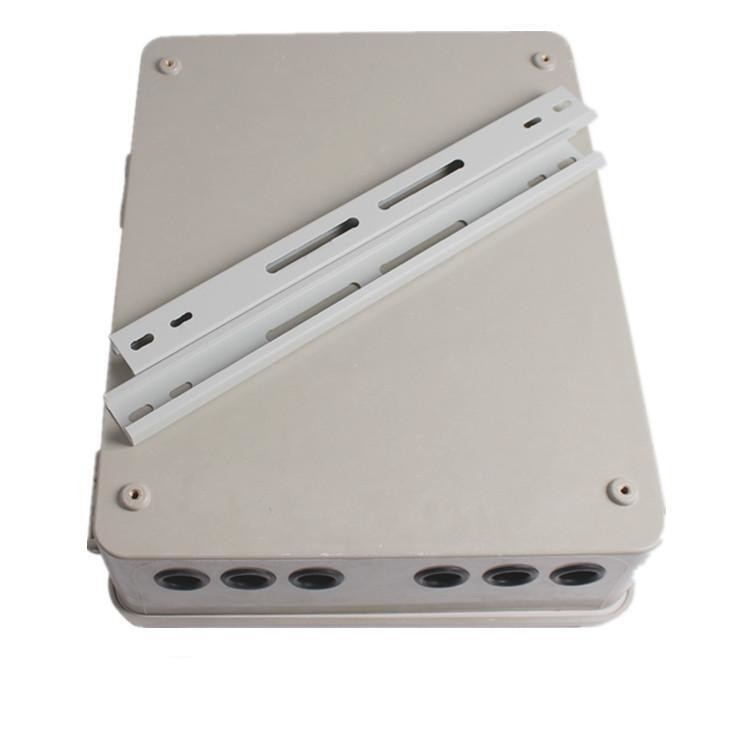

• Suitable for indoor and outdoor,, wall-mounted, pole, aerial installation
• FC, SC and LC adapters available.
• Fibre route reasonable, fibre bending radius at any place is greater than 30mm
• The mark is clear on each fibre connection and distribution
• Box door opening angle: 180 degrees

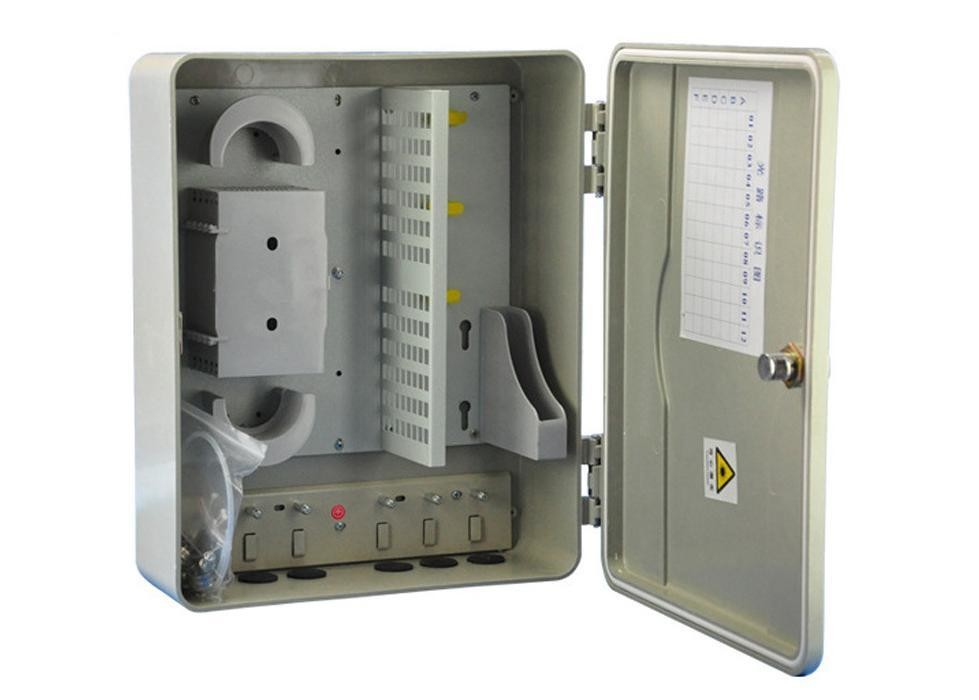

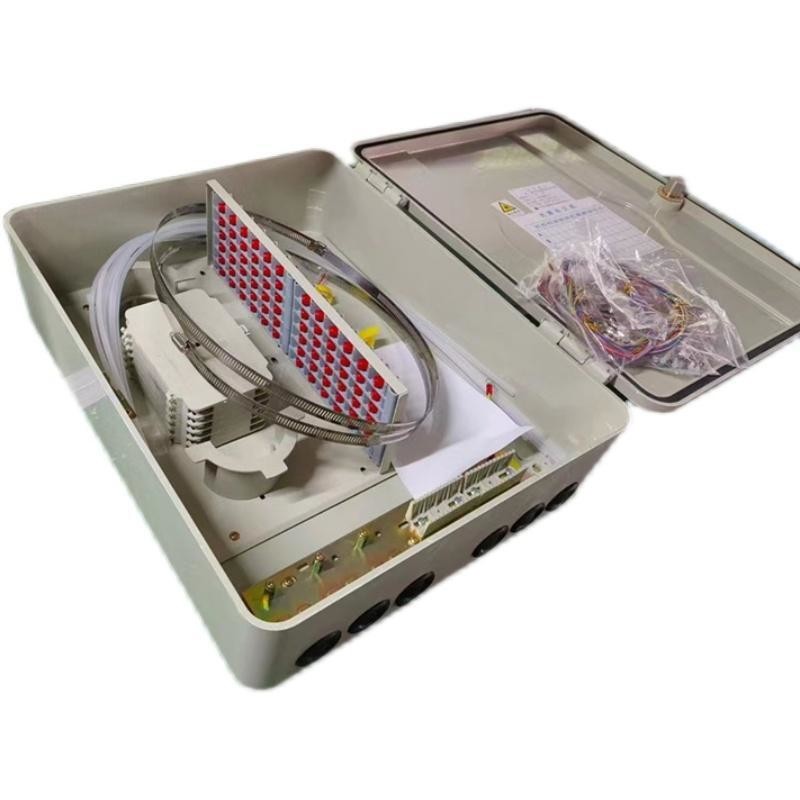

• The splice tray can be taken down and put on the bench for splicing, convenient operation
• The redundant fibre is wound and protected
Specification:
Product name | Fiber Splitter Distribution Box |
Dimension( L×W×H ) | 488mm×388mm×140mm |
Weigth(kg) | 9kg |
Function | cable terminal,passive splitter |
Adaptor type | SC /LC/ST/FC |
Cable Diameter | 0.9~26mm |
Max capacity(F) | 72 |
Material | SMC |
Applications:
Optical LAN & WAN & CATV
FTTH project & FTTX Deployments
Broadband High-bit rate data transmission
Active device terminations
Testing instruments
Optical fiber communication networks
PON Networks
Optical Signal Distribution
