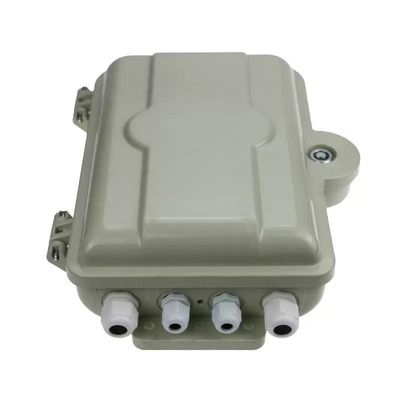

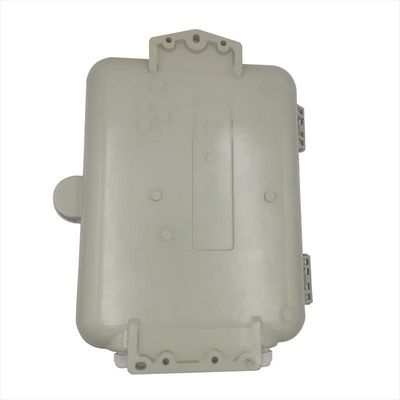

24 Cores Smc Fiber Optic Jucntion Box Distribution Terminal Box Outdoor /Indoor
SMC Fiber Optic Distribution Box / Fiber Splitter Box is used as a termination point for the feeder cable to connect with drop cable.
The fiber splicing, splitting, distribution can be done in this box, and meanwhile, it provides solid protection and management for
the FTTx network building.
It is mainly used at user access points in FTTH-ODN network.
It can be divided into indoor and outdoor type according to the installation scenarios, as well as distribution type
and optic split type according to the functions.
Configuration
| S/N | Part name | Description | Quantity | Remark |
| 1 | Box | Material: SMC Dimension: 380*290*100mm; |
1 set | Standard |
| 2 | Splice Protective Sleeve | for single fibers | 24pcs | Standard |
| 3 | Pigtail | SC/FC | As per needs | Optional |
| 4 | Adaptor | SC/FC | As per needs | Optional |
Characteristics
• High strength composite material (SMC), good mechanical performance, elegant appearance, sturdiness and durability
• Suitable for indoor and outdoor,, wall-mounted, pole, aerial installation

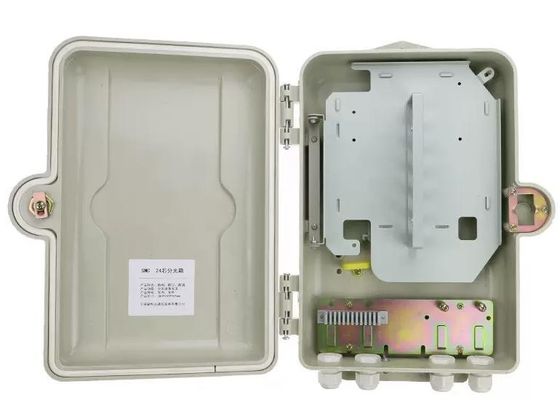

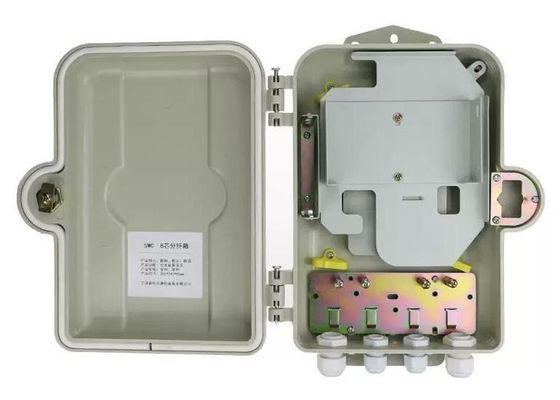

• Splitter Type: Insert splitter, 1:4, 1:8, 1:16, 1:32 • Turn-over structure, layout is reasonable, splicing zone below and distribution zone above
• FC, SC and LC adapters available , modular design, convenient for fixation and maintenance
• Fibre route reasonable, fibre bending radius at any place is greater than 30mm
• The mark is clear on each fibre connection and distribution
• The door opening angle is greater than 120° for easy operation and maintainance
• The splice tray can be taken down and put on the bench for splicing, convenient operation
• The redundant fibre is wound and protected
Applications:
Optical LAN & WAN & CATV
FTTH project & FTTX Deployments
Broadband High-bit rate data transmission
Active device terminations
Testing instruments
Optical fiber communication networks
PON Networks
Optical Signal Distribution
