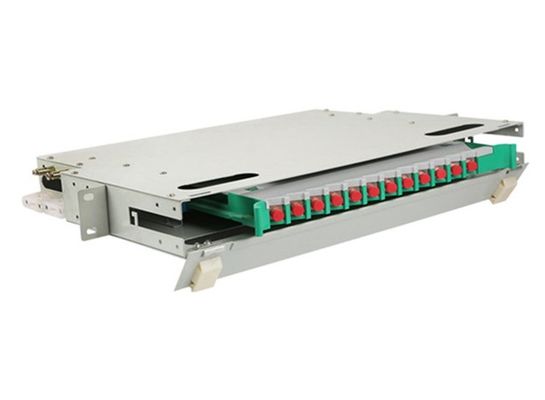

1U Rack Mount 12Core FC Adapter 19" Fiber Optic Terminal Box Fiber Patch Panel ODF
Specification:
| We support fiber capacity | 12/24/48/72/96/144 cores |
| Fiber Port | FC, SC, ST and LC |
| Number of ODF disks | 12 for 1, 24 for 2, 48 for 4, 72 for 6, 96 for 8, and 144 for 12 |
| Working temperature | -10 °C ~ +40 °C |
| Storage temperature | -25 ° C ~ +55 ° C |
| Relative humidity | ≤ 85% (+30 ° C) |
| Atmospheric pressure | 70Kpa~106Kpa |
| Nominal operating wavelength | 850nm, 1310nm, 1550nm |
| Insertion loss | ≤ 0.5dB |
| Return loss | PC ≥ 40dB, UPC ≥ 50dB, APC ≥ 60dB |
| Electrical strength | ≥3KV(DC)/1min without breakdown |
| Insulation resistance | ≥1000MΩ/500V (DC) |
| Life | ≥1000 times |
| Application range | Small and medium-sized wiring system for fiber to the cell, fiber to the building, remote module office and wireless base station |
Description:
ODFwith pigtails and adapters contain one ODF, adapters and pigtails. Parts are shipped separately, The installer assembles the pigtails and adapters in the ODF on site.
Boxes can be supplied to contain from 12 to 192 fibers. All ODFs are withdrawable and designed for mounting in 19” racks.
They are equipped with splice holders and guiding for fibers. We can also supply you with other combinations on request.
Features:
1. Fully modular design and full frontal operation
2. Cold rolling steel sheet body, which is artistic and durable
3. Integrate splicing and wiring together, maximizing high density
4. Installed on standard 19 inch rack
5. Suitable for ribbon and non-ribbon fibre optic cables
6. Universal adapters SC, FC, ST and LC can be installed
7. Fibre cable and patch cords both have storage space of more than 2m
8. With cold-roll steel box, splicing unit, distribution unit and panel
9. Various panel plate to fit different adapter interface
10. Suitable for single fiber and ribbon & bundle fiber cables
11. Special design ensures the excess fiber cords and pigtails in good order
12. No interval and easy for management and operation
Application:
1. Telecommunication
2. CATV
3. LAN & WAN
4. Network
5. Broadband
