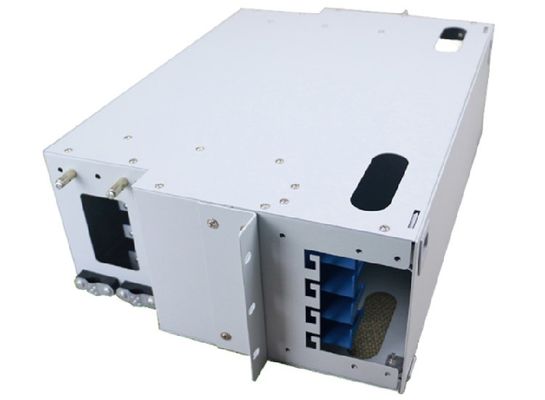

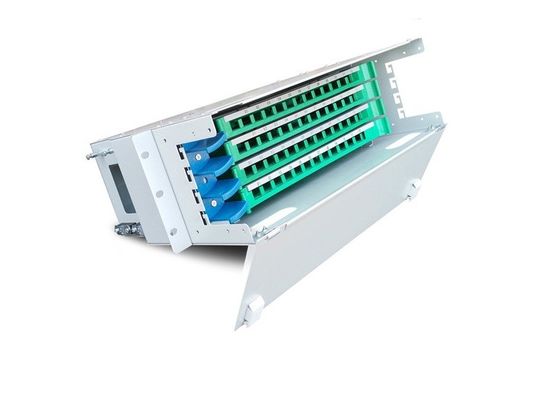

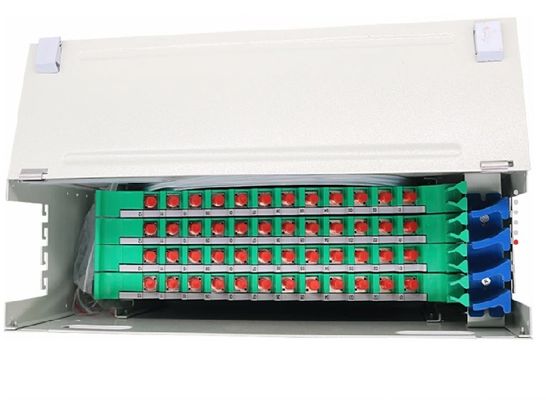

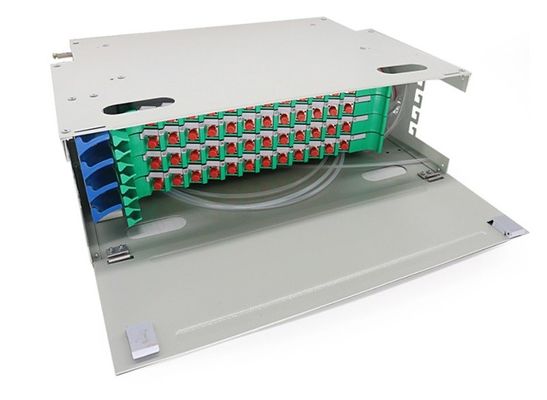

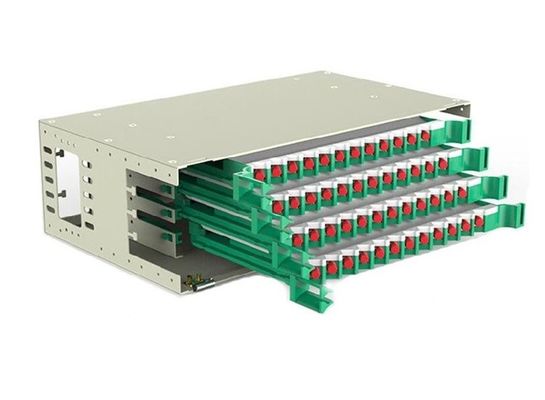

48 Core FC Fiber Optic ODF/ Distribution Frame /Patch Panel 19'' 1U Rack Mount Enclosure
Specification:
| Operating temperature | -5°C +40°C |
| Relative humidity | ≤90% (when the temperature is below 30°C) |
| Atmosphere pressure | 70Kpa – 106Kpa |
| Storage temperature | -40°C - +70°C |
| Insertion loss | ≤0.20dB |
| Return loss | PC≥45dB ,UPC≥50dB,APC≥60dB |
| Durability | >1000times |
| Insulating resistance | ≥1000 MΩ 500V |
| Voltage-resistance strength | Under the effect of 3000V, 1min, non-puncture, and no arc-over |
| Wavelength | 850nm, 1310nm, 1550nm |
Description:
An optical distribution frame (ODF) is a frame used to provide cable interconnections between communication facilities, which can integrate fiber splicing, fiber termination, fiber optic adapters & connectors and cable connections together in a single unit. The basic requirement is ODF should allow for easy access to the connectors on the front and rear of those ports for insertion and removal. It is usually used as the interface between optical transmission network, optical transmission facility and between optical cables in access network of optical fiber subscribers. It can also work as a protective device to protect fiber optic connections from damage.
Wolonte 19" ODF offers flexible cabling access, expandable frame design and comprehensive cable management. A series of optical distribution frames of 12 fibers, 24 fibers, 48 fibers, 72 fibers and 96 fibers counts type are available.
Generally, the ODF unit box is a necessary part of the indoor optical distribution frame. 12 cores fusion splicing and distribution module plays the main role and its function is splicing, fiber storage and protection. A completed ODF unit will be with adapter, pigtail and accessories like splice protection sleeve, nylon tie, snake like tube, screw.
Features:
1. 19' standard mounting, available for all kinds of rack and cabinet.
2. Metal, static electric plastic sprayed. Neat appearance, reasonable structure. With cable fixed and protection function; With functions of fiber optic cable terminating;
3. All are designed as modules; all operation could be done at the front side of the box. Flexible installation. Convenient for operation and maintenance.
4. Designed as a drawer. This could be pulled out and pushed easily. A unit with splice and distribution integrated.
5. Suitable for both ribbon and bunch fiber cables.
6. Each splice trays can be clamped with 12FC, SC, ST, LC(Duplex) adapters/30° oblique installation, preventing eyes form harm of laser and ensuring the fiber bending radius.
7. Operation and storage temperature: -25oC - +55oC
8. Dielectric intensity: ≥3KV(DC)/1minNo breakdown, no arcing
9. Insulation Resistance: ≥1000M&/500V(DC)
10.Shelter plate of fiber bending radius≥40mm
