ODF 19 Rack Patch Panel Sc Adapter Fc Patch Panel 6U 96 Core

Negotiable
MOQ
Negotiable
Price
ODF 19 Rack Patch Panel Sc Adapter Fc Patch Panel 6U 96 Core
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Optical Distribution Frame ODF
Installation Method: Rack Mounted
Material: Cold Rolled Steel
Size: 485×300×232mm
Capacity: 96 Core
Adapter: SC,FC,LC,ST
Color: Light Gray
Weight: 12kg
Highlight:

ODF 19 Rack Patch Panel

,

19 Rack Patch Panel Sc

,

Fc Patch Panel 6U

Basic Infomation
Place of Origin: Guangdong
Brand Name: Twilight Optic
Model Number: TW-ODF96
Payment & Shipping Terms
Packaging Details: Inner box and carton box,1 pcs/Carton, Carton Size : 500*310*270mm G/W: 12KG
Delivery Time: 7-15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs per week
Product Description

ODF Patch Panel Optical Distribution Frame Rack Mount 19" 96 Core FC SC Adapter



The ODF patch panel is modulized design with plastic drawable trays inside. It could be pre-installed
with various kinds of fiber optic adapters and pigtails.
It is with standard 19 inch size and properly designed to control the bend radius of
the cable inside the enclosure to avoid extra optical loss. This patch panel is ideal
for indoor fiber optic cables connection storage, distribution and management.



Features:

1. Modular design with splicing and distribution function

2. Splice tray inside changeable

3. Standard size, can be used in 19'', 23'' standard distribution frame

4. Suitable for SC, FC, ST, LC adapters

5. Front mark on the plate is easy for identification and operation

6. Splice Tray Capacity 12 cores

7. Front door and rear door for front and rear access.



Specification:

Capacity Height Dimension Remark
12 fibers 1U 485*300*50mm 1pc splice tray, rach tray 12 fibers
24 fibers 1U 485*300*72mm 1pc splice tray, each tray 12 fibers
48 fibers 2U 485*300*125mm 4pcs splice tray, each tray12 fibers
72fibers 4U 485*300*178mm 6pcs splice tray, each tray12 fibers
96fiber 6U 485*300*232mm 8pcs splice tray, each tray 12 fibers

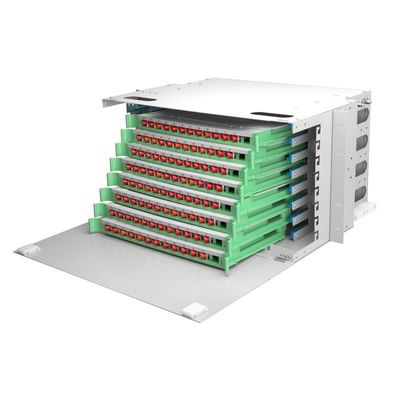

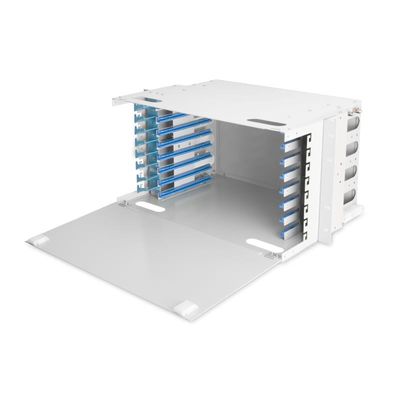

ODF 19 Rack Patch Panel Sc Adapter Fc Patch Panel 6U 96 Core 0ODF 19 Rack Patch Panel Sc Adapter Fc Patch Panel 6U 96 Core 1

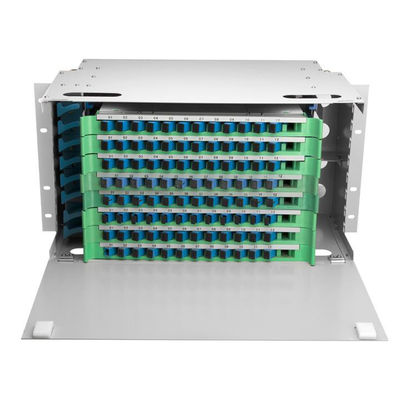

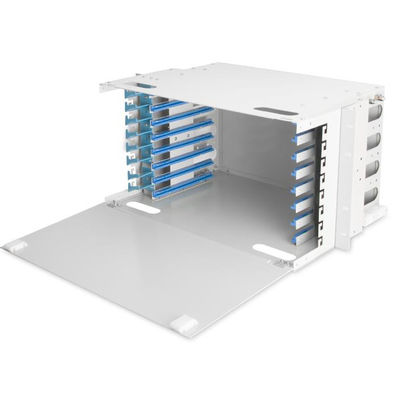

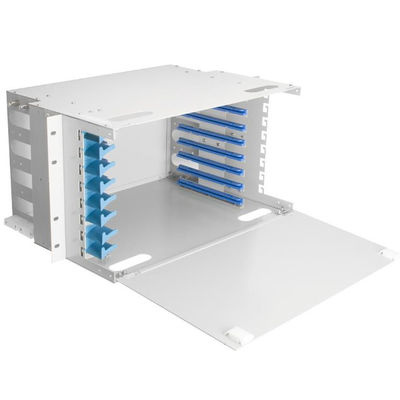

ODF 19 Rack Patch Panel Sc Adapter Fc Patch Panel 6U 96 Core 2ODF 19 Rack Patch Panel Sc Adapter Fc Patch Panel 6U 96 Core 3ODF 19 Rack Patch Panel Sc Adapter Fc Patch Panel 6U 96 Core 4

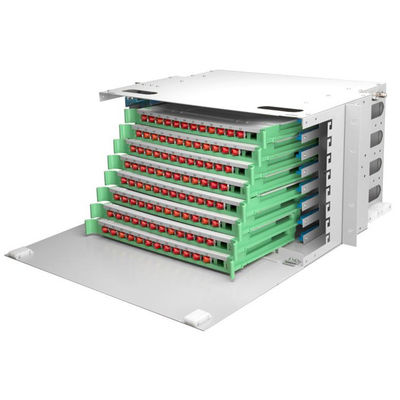

ODF 19 Rack Patch Panel Sc Adapter Fc Patch Panel 6U 96 Core 5





Application:

Telecommunications

Fiber to the home (FTTH)

LAN/WAN

CATV
