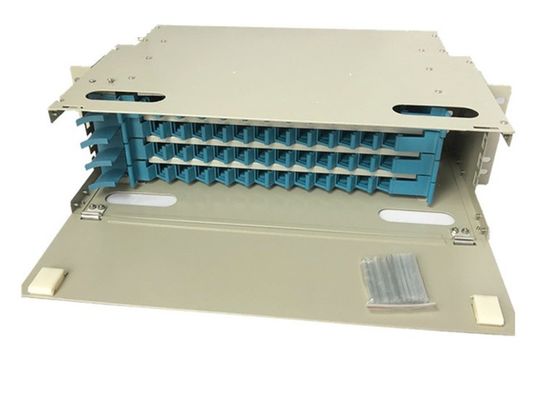

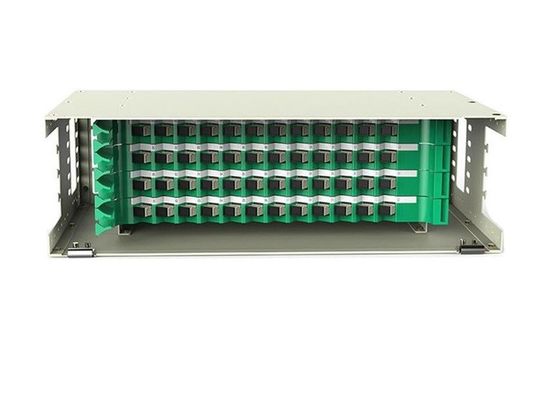

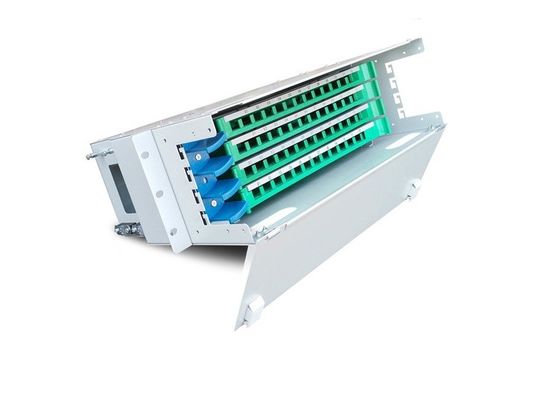

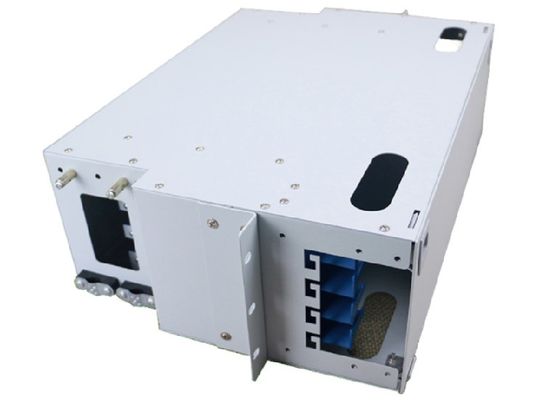

ODF 48 Port SC Multimode 48 Core Optical Distribution Frame Unit Patch Panel Rack Mount
Specification:
| Operating temperature | -5°C +40°C |
| Relative humidity | ≤90% (when the temperature is below 30°C) |
| Atmosphere pressure | 70Kpa – 106Kpa |
| Storage temperature | -40°C - +70°C |
| Insertion loss | ≤0.20dB |
| Return loss | PC≥45dB ,UPC≥50dB,APC≥60dB |
| Durability | >1000times |
| Insulating resistance | ≥1000 MΩ 500V |
| Voltage-resistance strength | Under the effect of 3000V, 1min, non-puncture, and no arc-over |
| Wavelength | 850nm, 1310nm, 1550nm |
Description:
ODF optical distribution frame unit is used for the termination and distribution of backbone optical cable in the fibre communication system.
With ODF patch panel, it’s easy to realize the connection, distribution and branch of the optical fibre cable.
The introduced modular high capacity optical fibre distribution rack utilizes unique structures such as patch panels and drawers to make the operation of optical fibre splicing and distribution more convenient. In addition, vertical distribution route and intermediate distribution panels are used to effectively solve the problem of fiber patch cord distribution.
Features:
1. Fully modular design and full frontal operation
2. Cold rolling steel sheet body, which is artistic and durable
3. Integrate splicing and wiring together, maximizing high density
4. Installed on standard 19 inch rack
5. Suitable for ribbon and non-ribbon fibre optic cables
6. Universal adapters SC, FC, ST and LC can be installed
7. Fibre cable and patch cords both have storage space of more than 2m
8. With cold-roll steel box, splicing unit, distribution unit and panel
9. Various panel plate to fit different adapter interface
10. Suitable for single fiber and ribbon & bundle fiber cables
11. Special design ensures the excess fiber cords and pigtails in good order
12. No interval and easy for management and operation
Application:
1.Telecommunications
2. Fiber to the Home (FTTH)
3. LAN / WAN
4. CATV
The installation procedure of the box
A. Open the front cover of the box or the top (if necessary), take down the fiber splice tray; let in the fibers
from the fiber entry and fix them on the box; the devices for fixation are as follows: the adjustable collet,stainless fiber cable ring & nylon tie;
B. The fixation of steel core (if necessary): thread the steel core through the fixed device (optional) and screw down the bolt;
C. Leave about 500mm-800mm long spare fibers from the peeled point of fiber cable to the entrance of the splice tray, cover it with plastic protective tube, fix it with plastic tie at the T type holes; splice fibers as
usual;
D. Store the spare fibers and pigtails, plug the adapters in the slots on the tray; or first plug in the adapters and then store the spare fibers, please pay attention to the direction of coiling fibers
E. Cover the splice tray, push in the splice tray or fix it with the slot at the edge of the box;
F. Install the box inside 19" standard mounting equipment.
G. Connect the patch cord as usual.
