Mini Wall Mounting Box Clamshell FTTD / FTTH Optic Termination Box DSL

Negotiable
MOQ
Negotiable
Price
Mini Wall Mounting Box Clamshell FTTD / FTTH Optic Termination Box DSL
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Fiber Optic Termination Box
Adapter: SC LC
Material: Metal Housing
Max Capacity: SC 8Ports,LC 16ports
Color: Light Gray
Dimension: 115*135*42mm
Mounting Way: Wall Mounting
Cable Entry Ports: 2
Highlight:

Wall Mounting Box Clamshell

,

Wall Mounting Box FTTD

,

Optic Termination Box DSL

Basic Infomation
Place of Origin: Guangdong
Brand Name: Twilight Optic
Model Number: TW-FTB-04/08A
Payment & Shipping Terms
Packaging Details: Inner box and carton box,20 pcs/Carton, Carton Size : 47*47*54cm, G/W: 30KG.
Delivery Time: 7-10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs per week
Product Description

Mini Wall Mount Clamshell Fiber Optic Termination Box 8 Core



The Mini Fiber Distribution Frame can be applied in the network system, FTTH/FTTD and DSL. Also, each unit comes with fiber adaptors, cable mounting accessories and protection sleeve. For any hybrid combination on the adaptor plate, please contact us for details.



Features

  • 4 fibers or 8 fibers are available. Others can be customized
  • Compact size, suitable for mini-network terminal distribution
  • Clamshell design, easy to operate.
  • Mountable adapter: SC simplex or LC duplex
  • The fiber radius of curvature is over 40mm.
  • The blockless splitter can be installed as an option.
  • Working temperature: -40℃~+60℃
  • small size,light weight,pleasing in appearance
  • wall mounted with mechanical protection function
  • hinge and convenient press-pull button lock design
  • Fiber radius of curvature: ≥30mm
  • Optical disk additional loss: ≤ 0.01dB
  • Anti lateral pressure: ≥2000N / 10 cm
  • Shock resistance: ≥20N.m

Technical specification

Material Cold rolled steel sheet
Capacity 8Core
Painting method Electrostatic Painting
Color Light Gray
Dimension
115*135*42
cable diameter(mm)
5~12
inlet/outlet
2/8
Net weight (kg)
0.49

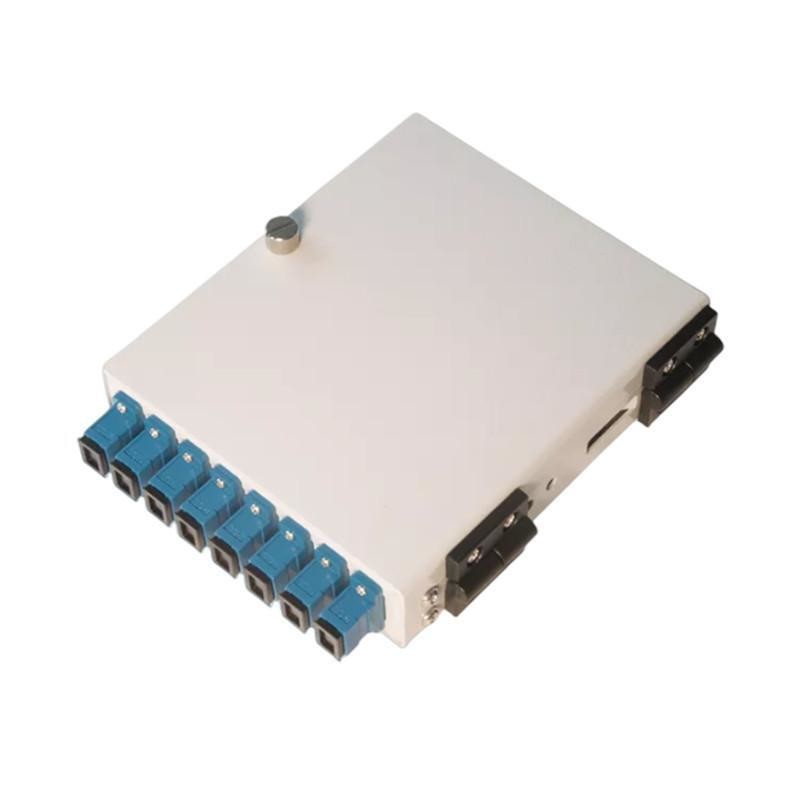

Mini Wall Mounting Box Clamshell FTTD / FTTH Optic Termination Box DSL 0

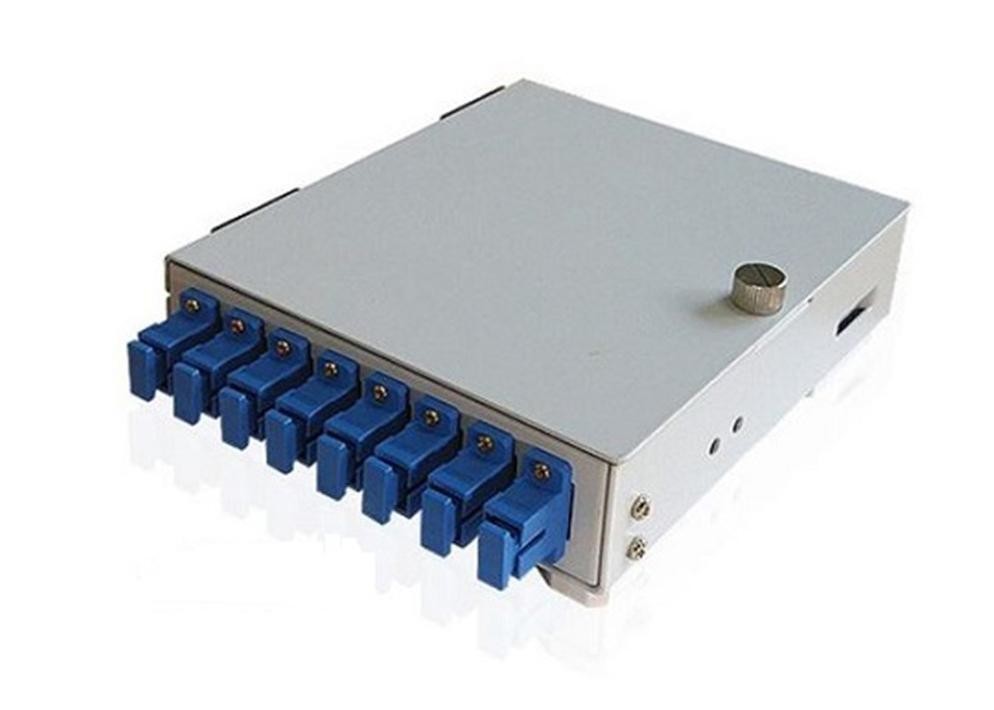

Mini Wall Mounting Box Clamshell FTTD / FTTH Optic Termination Box DSL 1Mini Wall Mounting Box Clamshell FTTD / FTTH Optic Termination Box DSL 2

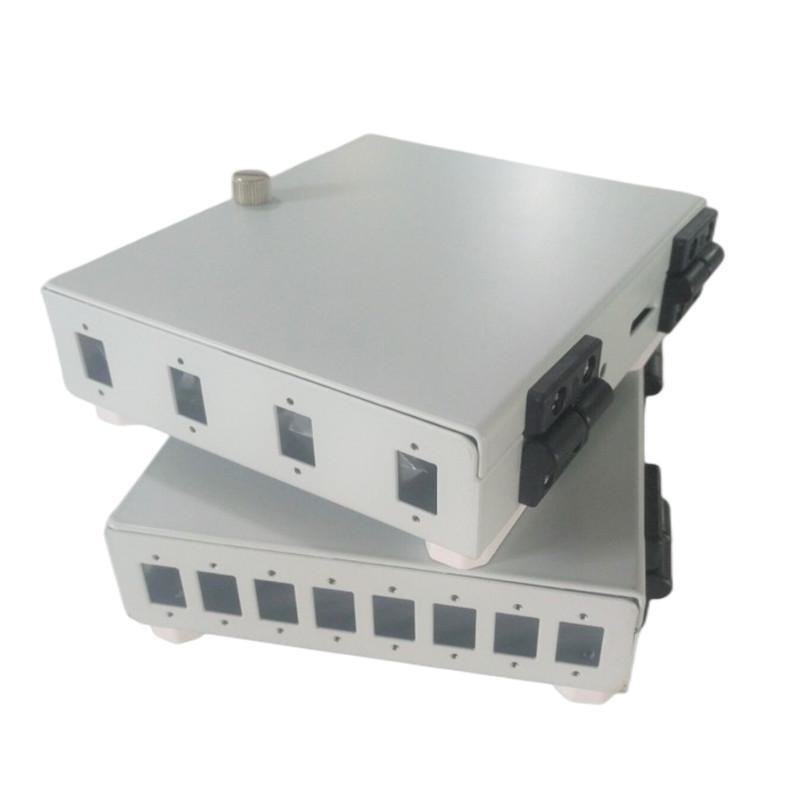

Mini Wall Mounting Box Clamshell FTTD / FTTH Optic Termination Box DSL 3

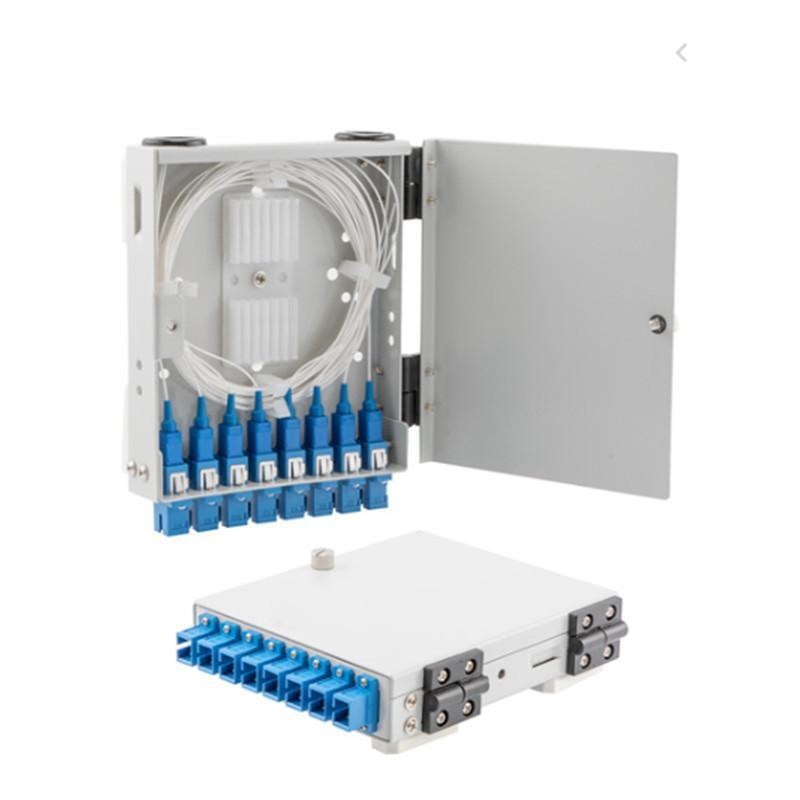

Mini Wall Mounting Box Clamshell FTTD / FTTH Optic Termination Box DSL 4Mini Wall Mounting Box Clamshell FTTD / FTTH Optic Termination Box DSL 5
