8Core 16Core Fiber Optic Terminal Box FC / LC PLC Splitter Box IP65

Negotiate
MOQ
Negotiate
Price
8Core 16Core Fiber Optic Terminal Box FC / LC PLC Splitter Box IP65
Features Gallery Product Description Request A Quote
Features
Specifications
Name: 8Core 16Core ABS Box Type PLC Fiber Optic Distribution Enclosure
Application: FTTH FTTB FTTX Network
Adapter Type: SC/FC/LC/ST
Cable Type: SM/MM (OM1, OM2, OM3, OM4)
Dimension: 285*175*110mm
Cable Diameter: 7-18mm
Protection Level: IP65
Color: Black
Highlight:

FC Fiber Optic Terminal Box

,

Fiber Optic Terminal Box LC

,

PLC Splitter Box IP65
Basic Infomation
Place of Origin: China
Brand Name: Twilight Optic
Model Number: TW-AFAT-002A
Payment & Shipping Terms
Packaging Details: 10 pcs/ Carton, Size: 41x33x61cm, G/W:20KG
Delivery Time: 3-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/day
Product Description

De8Core 16Core PLC Splitter Fiber Optic Terminal Box SC/FC/LC/ST IP65 Black



Description



AFAT-002A integrates distribution and splitting in one, can realize the direct fusion and branching of the optical cable, and is suitable for the wiring connection in the optical communication equipment. Through the adapter and jumper to bring in the signal to realize optical distribution function, it is also suitable for fiber optic cables and pigtail protective connection; the unique three-tier design of the box body can be used as a fiber splitter or splice box; the flip board can be flipped≥180°,it is more convenient to install the box or maintenance. If remove the board, it can bed as a splice closure to meet different choices.

Name                                             8Core 16Core ABS Box Type PLC Fiber Optic Distribution Enclosure
Application FTTH FTTB FTTX Network
Adapter Type SC/FC/LC/ST
Cable Type SM/MM (OM1, OM2, OM3, OM4)
Dimension 285*175*110mm
Cable diameter 7-18mm
Protection Level IP65
Color Black
Adapter Mode Simplex/Duplex
Max Capacity 16Cores





Features

♦  The product is made of high-quality impact resistant plastic and has a standard user interface that can be re-opened.

♦  Can accommodate two 1x8 PLC splitter LGX module or steel tube type.

♦  Anti-ultraviolet,anti- impact and waterproof function.

♦  Unique flip board, flip angle ≥ 180 °, fusion area and distribution area is more obvious, reducing the cable crossing.

♦  Fiber optic cable can go in and out of the box without cut the cable.


Specification

Material PC+ABS
Size 285*175*110MM
Cable Diameter 7-18mm
Cable port
2pcs 8-20mm round ports,
4pcs 5-16mm round cable,
16pcs 3-7mm drop cable ports
Max. Split ratio
2pcs 1x8 steel tube splitter,
1pcs 1x8 LGX splitter
Max. Adapter number 18pcs/9pcs
Max. Splice tray
 1pc
Max. Fusion splice 24 cores





Technical parameters

Optical Fiber Radius of Curvature ≥40mm
Splice Tray Additional Loss ≤0.1dB
Temperature Range -40℃ - +60℃
Protection Level IP65
Anti Side Pressure ≥2000N/10cm
Impact Resistance ≥20N.m





Details Picture

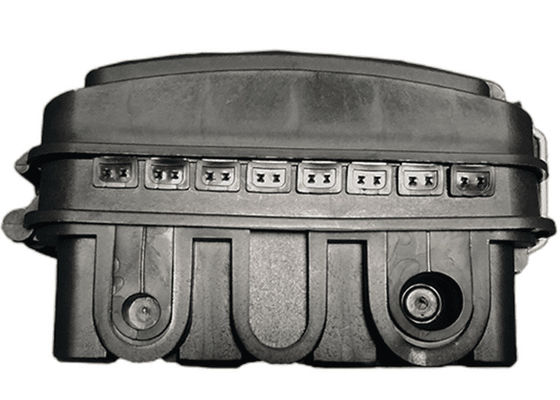

8Core 16Core Fiber Optic Terminal Box FC / LC PLC Splitter Box IP65 0

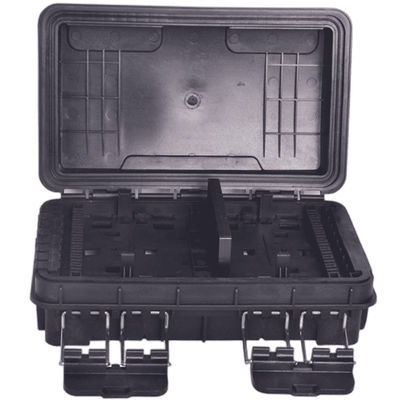

8Core 16Core Fiber Optic Terminal Box FC / LC PLC Splitter Box IP65 1

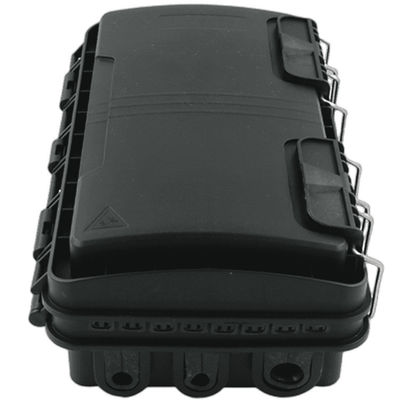

8Core 16Core Fiber Optic Terminal Box FC / LC PLC Splitter Box IP65 2









Installation procedure

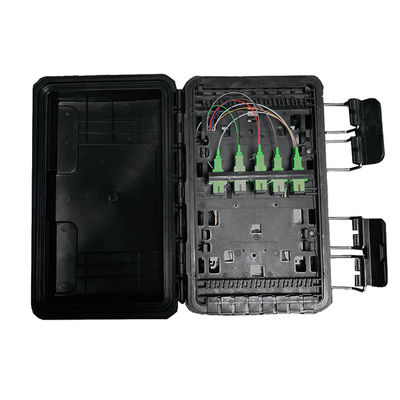

1. Open box, install the adapters on the plastic holder. (Pic1)
8Core 16Core Fiber Optic Terminal Box FC / LC PLC Splitter Box IP65 3
                                                                                      Pic1

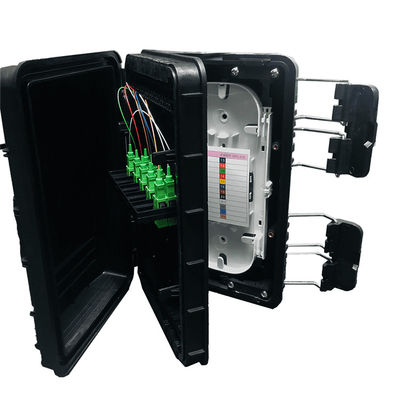

2. Strip the outer jacket,inner jacket, loose tube off the cable, remove the oil filling paste inside the cable, keep the fiber length of
1-1.6m and the steel core of 30-50mm; insert feeder cable through the entry and lock with hoop, strength plate to fix the fiber core.
The excess optical cable is coiled at the bottom, and the fused fiber optic cable is introduced into the fiber tray. Superfluous optical
fiber cable will be fixed and stored at the bottom of the box, bring the cable into the splice tray. (Pic2)

Insert the pigtail connector into the input port on adapter holder, then introduced into the splice tray through the holes opened in
the tray core. After being coiled and finished, the other end of the pigtail is led to the heat shrinkable tube installed in the splicing
groove, and heat the sleeve appropriately to make the fiber and the protection tube integrated into one, and the protected optical
fiber connector is snapped into the splicing groove; put on the PVC cover to prevent falling off.
8Core 16Core Fiber Optic Terminal Box FC / LC PLC Splitter Box IP65 4
                                                                                        Pic2

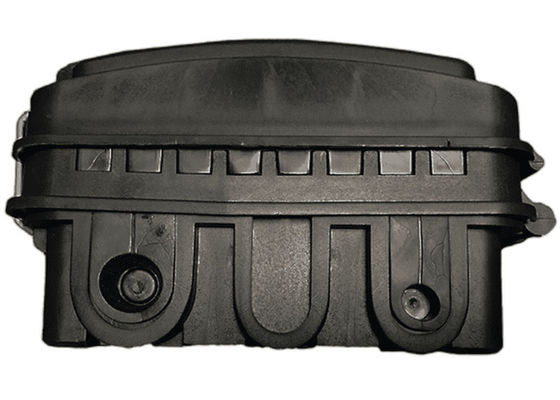

3. Insert the drop cable connectors into the splitter module adapter (output side), then fix the cable into the fixing slots, then
through the rubber seal to lead out the cable. (Pic3)
8Core 16Core Fiber Optic Terminal Box FC / LC PLC Splitter Box IP65 5
                                                                                       Pic3


4. Insert the cable pigtail into the fixing slot, and then pass through the outlet sealing rubber to lead out the cable.

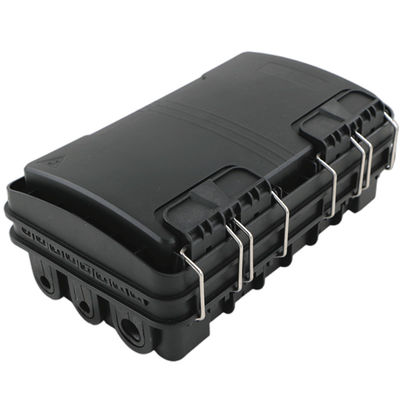

5. Close the lid,snap the buckle to complete the installation,install the metal hooks then hook up on the aerial cable. (Pic4)
8Core 16Core Fiber Optic Terminal Box FC / LC PLC Splitter Box IP65 6
                                                                                      Pic4
