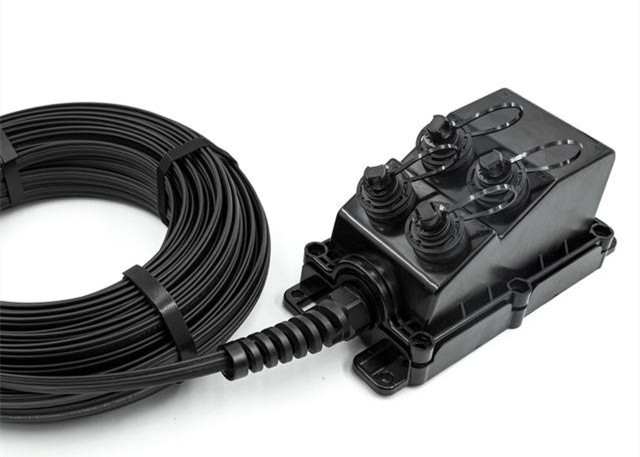

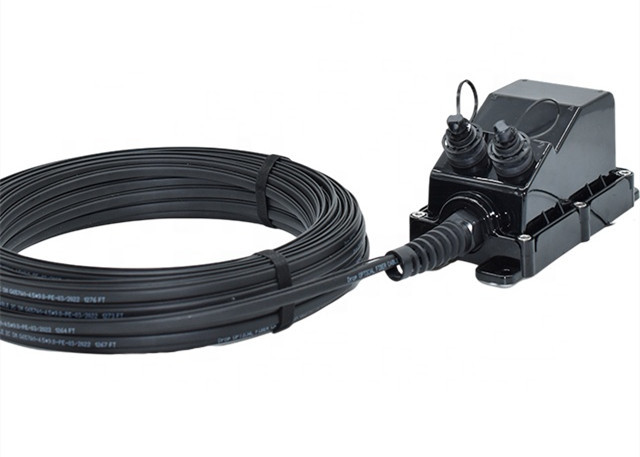

6 Fiber MST Fiber Optic Multiport Service Terminal Enclosures Box with OptiTap compatible SST drop cables

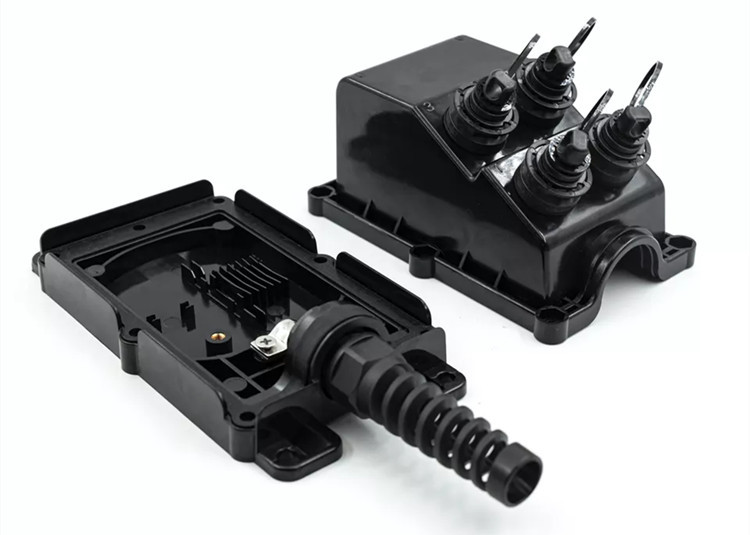

Multiport Service Terminal (MST) Box FastConnect closure used for access points of the FTTx-ODN network. It is a product with all inlet and outlet cables pre-connected, eliminating the need of closure opening and fiber splicing. All ports are equipped with hardened adapters. The operators do not need to splice fibers or open boxes during ODN deployment, which improves service provisioning efficiency. MST box is a new economic fiber distributed solution for outdoor use. Compare traditional products, MST box is easy to operate and has high compatibility. Reduces the total cost of operation (TCO) by 15-30%.
It can be used for wall-mounting, aerial installation or holding pole installation, based on different situation. MST box not only used in FTTH field, but also used in FTTA or other harsh environment.
Features:
High compatibility: can be assembled ODVA, Hconn, Mini SC, PLC, MPO or power adapter.
Factory-sealed or field assembly.
Strong enough: working under 1200N pulling force long term.

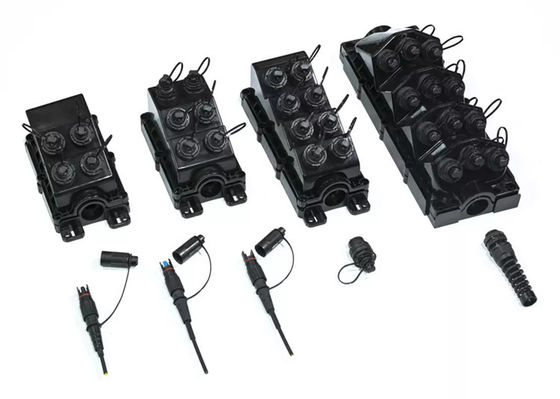

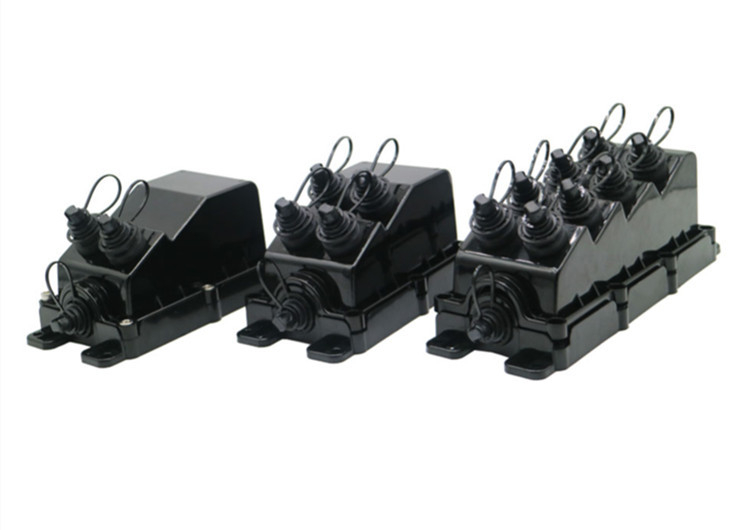

From 2 to 12 ports for single or multifiber harsh connectors.
Available with PLC or splice sleeve for fiber divide .
IP67 waterproof rating.
Wall-mounting, aerial installation or holding pole installation.
Decreased angle surface and height make sure no connector interfering when operating.
Cost effective: save 40% operating time.
Meet IEC 61753-1 standard.
Specifications:
Dimensions(LxWxH) | 210x105x93(4Core) |
Ingress Protection | IP68 |
Working Temperature | -40~85℃ |
Cable Strength Member | Armoured or Non-armoured |
Cable Type | Hybrid or non-hybrid |
Round Cable OD | 5.0mm to 14.0mm |
Flat Cable Dimension | 4.6x8.9mm |
Cable Jacket Material | LSZH,PE or TPU |
Bending Radius | 20D |
Cable Crush Resistance | 200N/cm long term |
Tensile Strength | 1200N long term |
UV Resistance | ISO 4892-3 |
Fire Protection Rating | UL94-V0 |
Number of PLC | 1~2pcs |
Number of Fusion Protection Sleeves | 1~24pcs |
Installation | Wall/Pole/Aerial Mounted |
Applications:
FTTH field
Traditional solution use ONU or FDH (Optical Network Unit/Fiber Distribution Hub), when trunk optical cable arrives to outside of mansions and villas. FTTX Enclosure can replace ONU or FDH because it has fiber distribution function. Inside, it can be fixed 2-4pcs 1*8 or 1*16 PLC, and can be put 24pcs fiber splice protection sleeves. After mating with 1-48F IP67 preassembled waterproof connector, FTTX Enclosure can connect each mansion and villa or low voltage silo directly. It can be fixed outside of mansions and villas, or holding pole installation. FTTX Enclosure can reduce signal loss through less connecting node. For in factory preassembled FTTX Enclosure, it’s no need high skill operator because of no fiber splice operation. Installation efficiency can be increased by 40%.
FTTA field
Traditionally, Remote Radio Unit (RRU) and Building Base band Unit (BBU) connected by optical fiber cable, forme star network technology. Each RRU need one duplex outdoor cable link to BBU. Installation will need more time and cost will be high.FTTX Enclosure work as an Aggregation/Demark box, link RRU and BBU together. From BBU to FTTX Enclosure, only need one multi-fiber hybrid cable. Then FTTX Enclosure divide fibers to each RRU through IP67 preassembled waterproof cable assemblies. RRU can get power through assembled power connector on FTTX Enclosure.It can avoid needless duplication.
