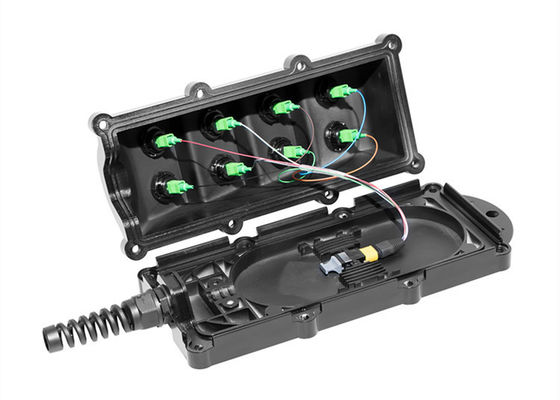

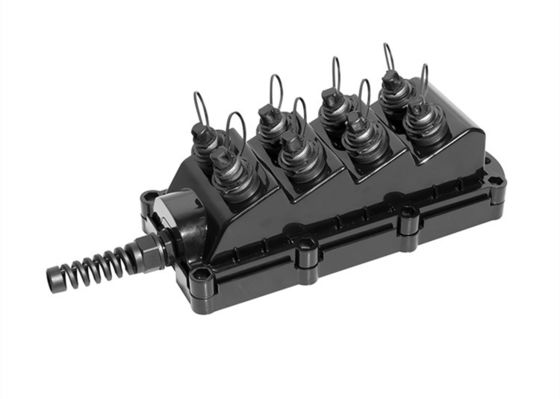

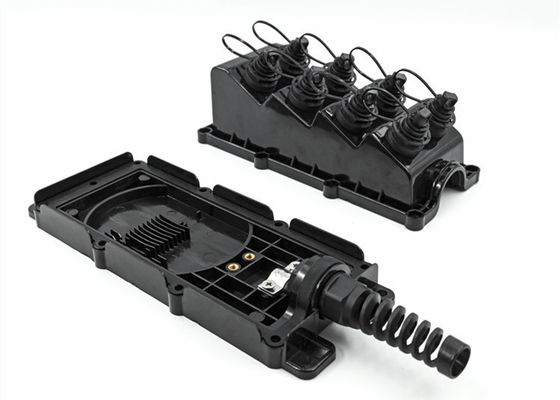

8 Port MST Box OptiTap Multiport Service Terminal IP68 FTTX Solution
Fiber MST Fiber Optic Multiport Service FTTX Enclosure is a new economic fiber distributed solution for outdoor use. compare traditional products, FTTX Enclosure is easy to operate and has high compatibility. It can be used for wall-mounting, aerial installation or holding pole installation, based on different situation.FTTX enclosure not only used in FTTH field, but also used in FTTA or other harsh environment.
Features:
High compatibility: can be assembled ODVA, H connector(OptiTap compatible), Mini SC, ODC, PTLC, PTMPO or power adapter.
Factory-sealed or field assembly.
IP68 water and dust protection
Strong enough: working under 1200N pulling force long term.

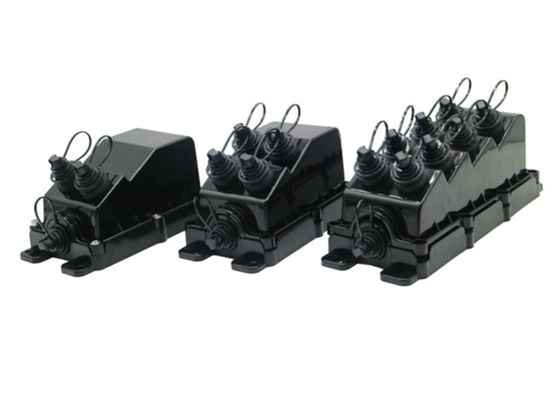

From 2 to 12 ports for single or multifiber harsh connectors.
IP68 waterproof rating.
Wall-mounting, aerial installation or holding pole installation.
Decreased angle surface and height make sure no connector interfering when operating.
Meet IEC 61753-1 standard.
Cost effective: save 40% operating time.
Available with PLC or splice sleeve for fiber divide.
Specifications:
| Dimensions(LxWxH) | 283x105x95mm(8Core) |
| Ingress Protection | IP68 |
| Working Temperature | -40~85℃ |
| Cable Strength Member | Armoured or Non-armoured |
| Cable Type | Hybrid or non-hybrid |
| Round Cable OD | 5.0mm to 14.0mm |
| Flat Cable Dimension | 4.6x8.9mm |
| Cable Jacket Material | LSZH,PE or TPU |
| Bending Radius | 20D |
| Cable Crush Resistance | 200N/cm long term |
| Tensile Strength | 1200N long term |
| UV Resistance | ISO 4892-3 |
| Fire Protection Rating | UL94-V0 |
| Number of PLC | 1~2pcs |
| Number of Fusion Protection Sleeves | 1~24pcs |
Applications:
FTTH Projects
FTTA Projects
Truck cable connectings
Prospecting or military communication
