8 Core Fiber Access Terminal Box Ip68 Cajas Nap With Splice Trays
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Fiber Optical Distribution Nap Box
Size: 385*245*130mm
PLC Splitter: 1pcs Of 1x8
Material: Strengthen Polymer Plastic
Reinforced Adaptor: 8pcs SC / UPC Or SC / APC
Weight: 5kg
Color: Black
Application: Wall Mounting And Pole Mounting
Basic Infomation
Place of Origin: Guangdong
Brand Name: Twilight Optic
Model Number: TW-FATC-005-8
Payment & Shipping Terms
Packaging Details: Inner box and carton box,4 pcs/ Carton, Size:53x43x34cm,G/W:18.5KG
Delivery Time: 7-10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs per week
Product Description

8 Core Fiber Access Terminal Box IP68 Cajas Nap With Splice Trays



The access terminal box is an outdoor pre-terminated network access point closure (NAP) designed for harsh

environments to enable fast and easy deployment of FTTX and special fiber networks. It is used to connect

distribution network cable to access network drop cables in FTTX and fiber networks. IP68 protection together

with hardened outdoor patchcord integration provides perfect solution for harsh outdoor environments and manholes.



Features

  1.  Integrated with flap-up splice trays.
  2.  Impact test:IK10,Pull Force:100N,Full rugged design.
  3.  Maximum 144F splice capacity, stainless anti-rust bolts and nuts.
  4.  Plug-and-play installation, easy for maintenance and expansion.
  5.  Fiber bend radius control more than 40mm.
  6.  180 degree access with buckled lock structure.
  7.  1*8 PLC Splitter can be installed in each splice tray as option.
  8.  Mechanical sealing structure and mid-span cable entry.
  9.  8 pcs of pre-installed reinforced water-proof adapter for SC.
  10.  1 mid-span cable entrance(10-16.5mm) for uncut cable and 2 mechanicals glands for distribution cable (8-16.5mm).



Technical Index

Material Strengthen
Polymer Plastic
Color Black
Capacity 8 core Protection level IP68
Dimension 385*245*130mm Sealing type Mechanical
Cable ports 1 mid-span cable entrance(10-16.5mm) for uncut cable and 2
mechanicals glands for distribution cable (8-16.5mm)
PLC Splitter 1pcs of 1x8
Weight 5kg Connector HUAWEI MINI SC

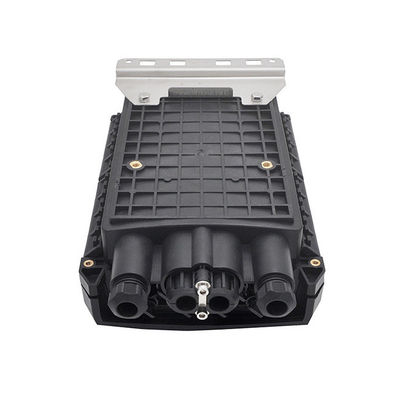

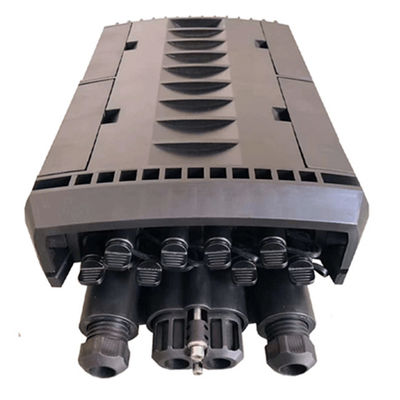

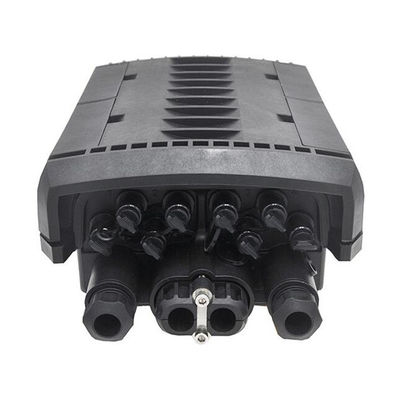

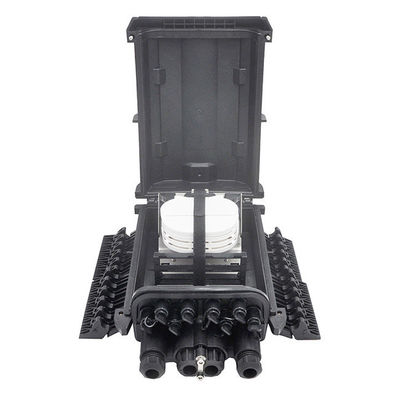

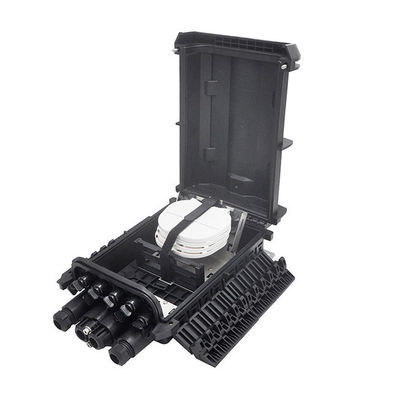

8 Core Fiber Access Terminal Box Ip68 Cajas Nap With Splice Trays 08 Core Fiber Access Terminal Box Ip68 Cajas Nap With Splice Trays 18 Core Fiber Access Terminal Box Ip68 Cajas Nap With Splice Trays 28 Core Fiber Access Terminal Box Ip68 Cajas Nap With Splice Trays 38 Core Fiber Access Terminal Box Ip68 Cajas Nap With Splice Trays 4





Applications
Wall mounting and pole mounting installtion
FTTH pre-installation and filedinstallation


Standard Accessories
Splice cassette and cable management tool,installation nuts and bolts,protection sleeves,
hose clamp,cable tube,wreach,cover holder,rubber seal for cable entrance.
