8 Port ABS PLC Fiber Optical Termination Enclosure SC/LC/ST/FC IP65 Grey/Black
Description
FATM-0209R fiber access termination closure is able to hold up to 16subscribers point as closure. It is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTX network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
| Name | 8Port Waterproof Terminal Box with HUAWEI MINI SC |
| Use | FTTX FTTH FTTB Solutions |
| Suitable Adapter | SC/LC/ST/FC |
| Fiber Type | SM, MM (OM1, OM2, OM3, OM4) |
| Fiber bend radius | More than 40mm |
| Waterproof Level | IP65 |
| Material | PC+ABS |
| Color | Grey/Black |
| Weight | 1.2kg |
| Working Temperature | -40℃ - +70 ℃ |
Features
► Water-proof design with IP-65 Protection Level.
► Integrated with flap-up splice cassette and adaptor holder.
► All stainless metal plate and anti-rusting bolts, nuts.
► Fiber bend radius control more than 40mm.
► Suitable for the fusion splicer or mechanical splice.
► 2Pcs of 1*4 Splitter can be installed as an option.
► Mechanical sealing structure and mid-span cable entry.
► 8 ports cable entrance for drop cable.
► 8 adapter for drop cable patching.
Configuration
|
|
PC+ABS |
|
|
287*172*102mm |
|
|
Splice 8 Fibers (1trays, 16fibers/tray) |
|
2pcs 1*4 PLC Splitter |
|
|
|
16pcs of SC |
|
|
1.2kg |
|
|
Grey/Black |
Applications
► Wall mounting and pole mounting installation.
► FTTH pre-installation and filed installation.
► 2*3mm indoor FTTH drop cable and outdoor figure-8FTTH self-supporting drop cable.
Standard Accessories
► Splice cassette and cable management tool
► Installation nuts and bolts
► Protection sleeves hose clamp
► Cable tube
► Wrench
► Cover
► Holder
► Rubber seal for cable entrance

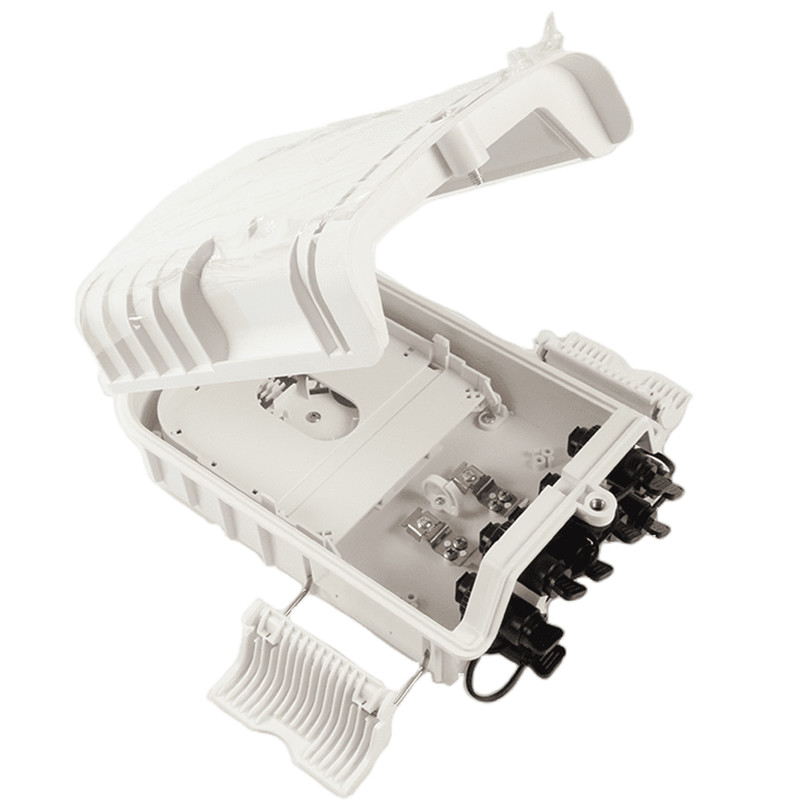

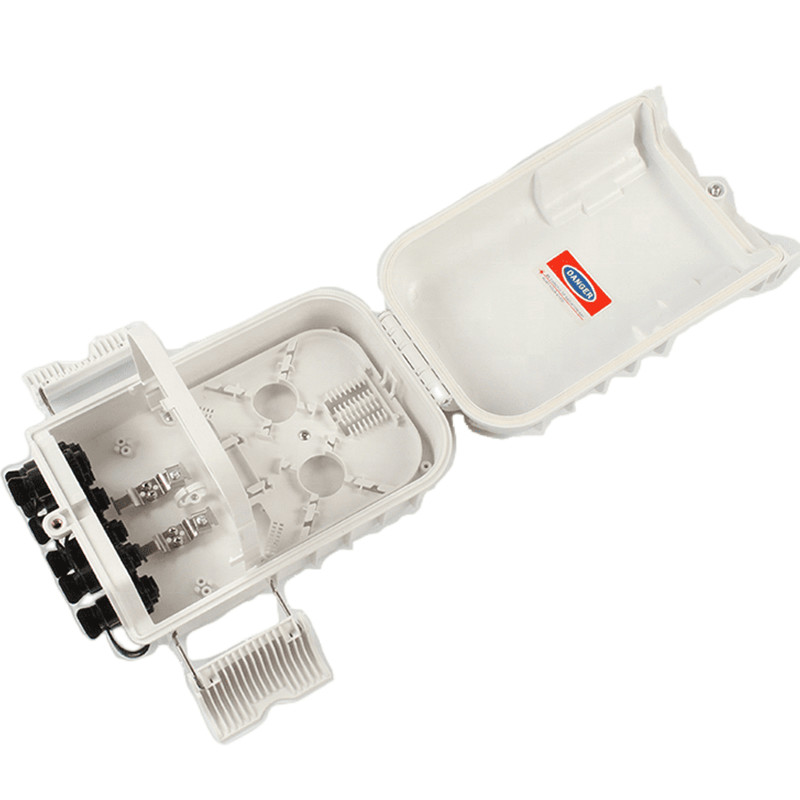

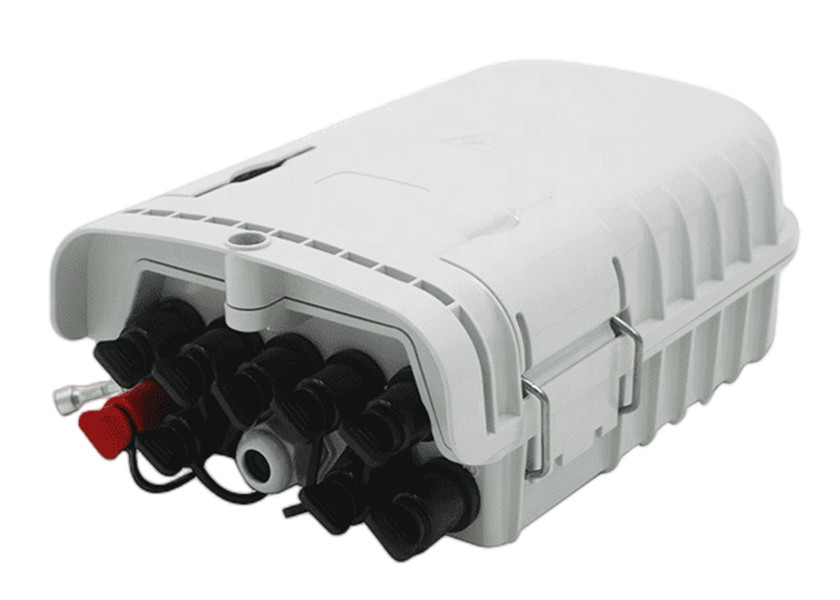

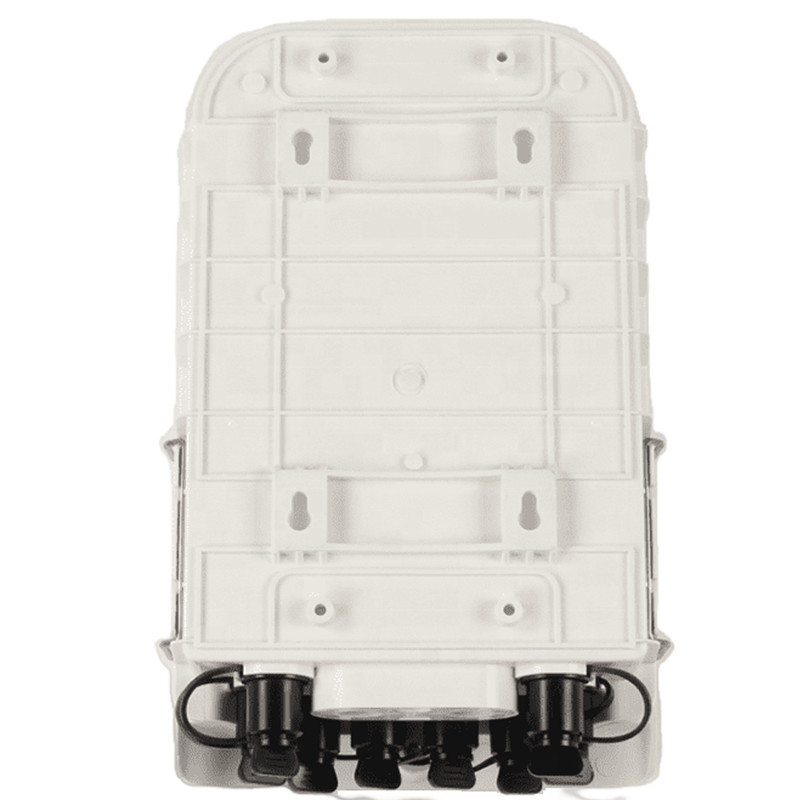

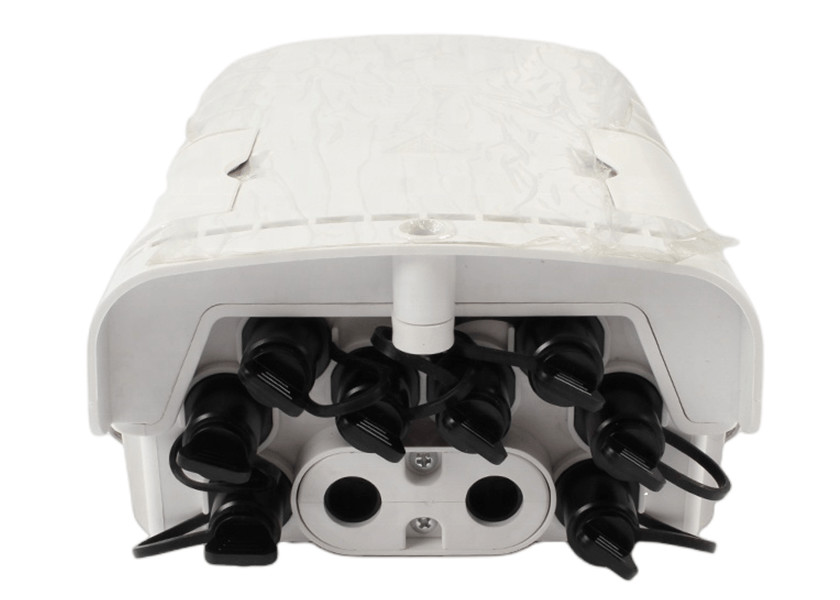

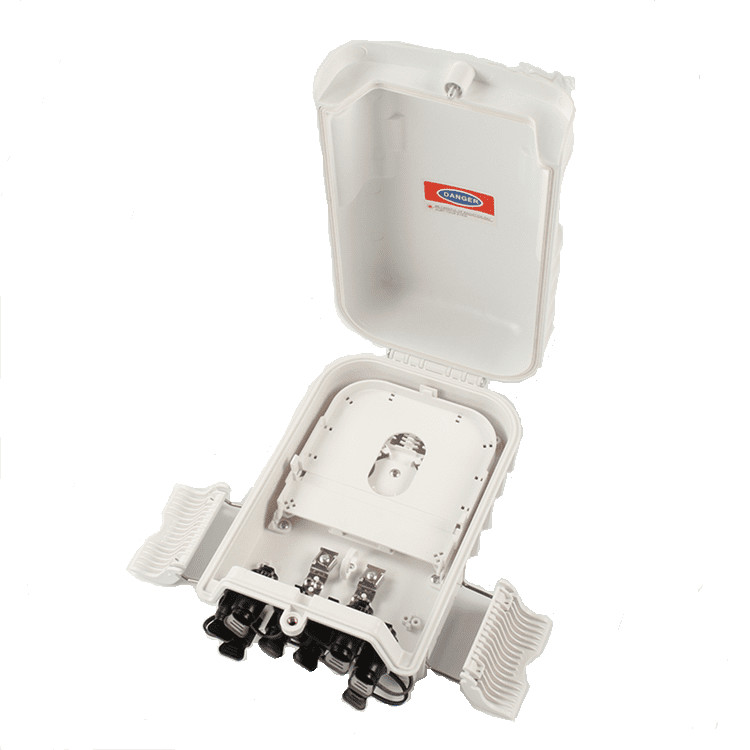

Details Picture
