FTTB 24 Port Fiber Termination Box Wall Mount Black IP68 OM1 96Core
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | 96Core 24Port Fiber Access Terminal Closure | Use | FTTB FTTX FTTH |
|---|---|---|---|
| Waterproof Level | IP68 | Mounting Type | Wall-Mounting/Pole-Mounting |
| Environenvironmental Temperature | -40℃ - +65℃ | Insertion Loss | <0.2dB |
| Adapter Type | SC/LC/ST/FC | Cable Type | SM/MM (OM1, OM2, OM3, OM4) |
| High Light | FTTB 24 Port Fiber Termination Box,24 Port Fiber Termination Box OM1,Fiber Termination Box Wall Mount IP68 |
||
Product Description

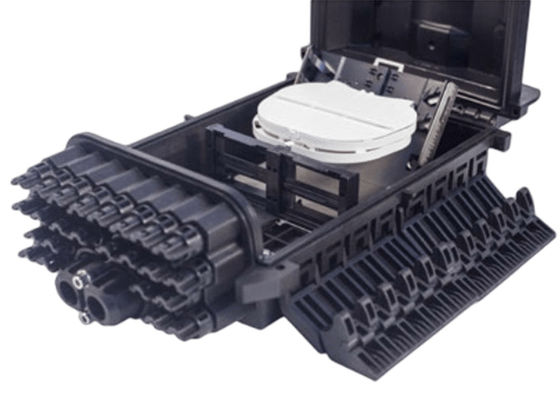

24 Port 96Core Fiber Optic Termination Box Wall-Mounting/Pole-Mounting Black IP68
Description
FATC - 002 - 24 fiber access termination closure is able to hold up to 24 subscribers and 96 splicing points asclosure. It is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber sp licing, sp li t t ing, d istrib ut ion, storage and cable connection in one solid protection box.
| Name | 96Core 24Port Fiber Access Terminal Closure |
| Use | FTTB FTTX FTTH |
| Waterproof Level | IP68 |
| Mounting Type | Wall-Mounting/Pole-Mounting |
| Environenvironmental temperature | -40℃ - +65℃ |
| Insertion loss | <0.2dB |
| Adapter Type | SC/LC/ST/FC |
| Cable Type | SM/MM (OM1, OM2, OM3, OM4) |
| Dimension | 385*245*130mm |
| Weight | 4.5kg |
Features
► Water-proof design with IP-68 Protection level.
► Integrated with flap-up splice cassette and adaptor holder.
► Impact test:IKlO. Pull Force: lOON. Full rugged design
► All stainless metal plate and anti-rusting bolts,nuts.
► Fiber bend radius control more than 40mm.
► Suitable for the fusion splice or mechanical splice.
► 2 pcs of 1*8 Splitter can be installed as an option.
► Mechanical sealing structure and mid-span cable entry.
► 24 ports cable entrance for drop cable.
► 24 adaptors for drop cablepatching
Configuration
|
Material
|
Strengthen Polymer Plastic |
|
Size
|
385*245*130mm |
|
Max Capacity |
Splice 96 Fibers (4trays, 24 fiber/tray) |
|
PLC Splitter 2pcs of 1x8 |
|
|
Nos of Adapter |
24pcs of SC |
|
Weight |
4.5kg |
|
Color |
Black |
Applications
► Wall mounting and pole mounting installtion
► FTTH pre-installation and filed installation
► 4-7mm cable ports suitable for 2x3mm indoor FTTH drop cable and outdoor figure 8 FTTH self-supporting drop cable
Standard Accessories
► Splice cassette and cable management tool
► Installation nuts and bolts
► Protection sleeves
► Hose clamp
► Cable tube
► Wreach
► Cover holder
► Rubber seal for cable entrance.
Optional Accessories
► Pole ring
Details Picture
