120F Fiber Optic Terminal Box Reinforced Adapter 1x8 Optical Splitter IP65
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | FATB Terminal Box With HUAWEI MINI SC Waterproof Adapter | Use | FTTB FTTH FTTX |
---|---|---|---|
Port | 8Ports (reinforced Adapter) | Suitable Adapter | SC/LC/ST/FC |
Waterproof Level | IP65 | Material | PC+ABS |
Size | 345*220*95mm | Weight | 1.85kgs |
Color | Gray/Black | Max Capacity | 120F / 1x8 PLC (SC) |
High Light | 120F Fiber Optic Terminal Box,Fiber Optic Terminal Box Reinforced,1x8 Optical Splitter IP65 |

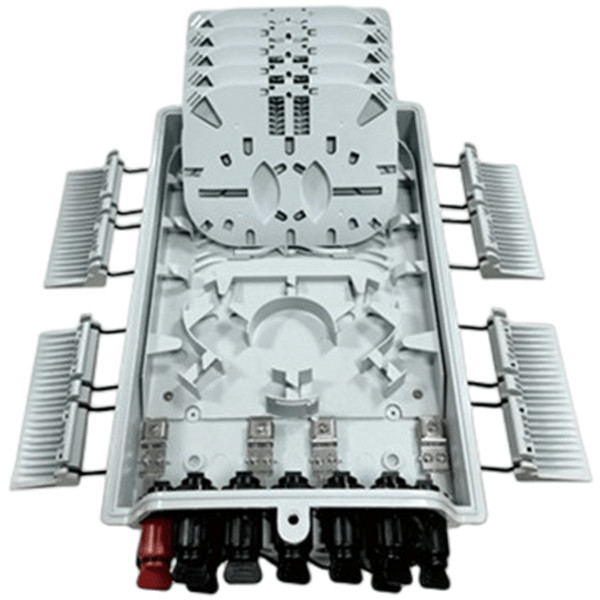

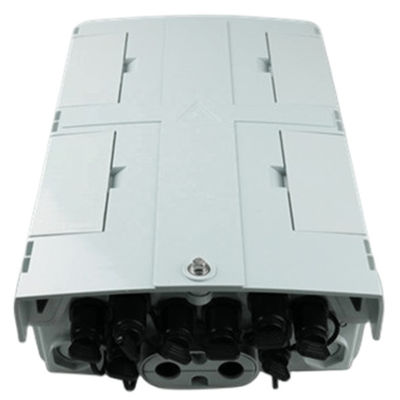

8Core Fiber Optic Terminal Box with HUAWEI MINI SC Reinforced Adapter IP65
Description
FATB-0408R fiber access termination box is able to hold up to 8 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Name | FATB Terminal Box with HUAWEI MINI SC Waterproof Adapter |
Use | FTTB FTTH FTTX |
Port | 8Ports (reinforced adapter) |
Suitable Adapter | SC/LC/ST/FC |
Waterproof Level | IP65 |
Material | PC+ABS |
Size | 345*220*95mm |
Weight | 1.85kgs |
Color | Gray/Black |
Max Capacity | 120F / 1x8 PLC (SC) |
Features
⊙ Water-proof design with IP-65 Protection Level.
⊙ Integrated with flap-up splice cassette and adapter holder.
⊙ Maximum 120F splice capacity, stainless anti-rust bolts and nuts.
⊙ Plug-and-play installation, easy for maintenance and expansion.
⊙ Fiber bend radius control more than 40mm.
⊙ 180 degree access with buckled lock structure.
⊙ 1*8 PLC splitter can be installed in each splice tray as option.
⊙ 1 mid-span cable entrance ( 10-16.5mm ) for uncut cable and 2 reserved cable entrances for distribution cable gland ( 8-13.5mm ).
⊙ 8 pcs of pre-installed reinforced water-proof adapter for SC.
Configuration
Material
|
PC+ABS | Size | 345*220*95MM |
Max Capacity
|
Splice 120 Fibers ( 5 trays x 24 F ) |
Reinforced Adapter |
8pcs SC/UPC or SC/APC ( HUAWEI MINI SC) |
PLC Splitter 1x8 ( SC ) |
|||
Weight
|
1.85kgs | Color | Gray/Black |
Application
⊙ Wall-mounted Installation
⊙ Pole-mounted Installation
⊙ Aerial-hanging Installation
⊙ Suitable for HUAWEI pre-connectorized drop cable with reinforced connector
Standard Accesspries
⊙ Splice cassette and cable management tool
⊙ installation nuts and bolts
⊙ protection sleeves
⊙ hose clamp
⊙ cable tube
⊙ key
⊙ wrench
⊙ rubber seal for cable entrance
Optional Accessories
⊙ Pole mounted kits
