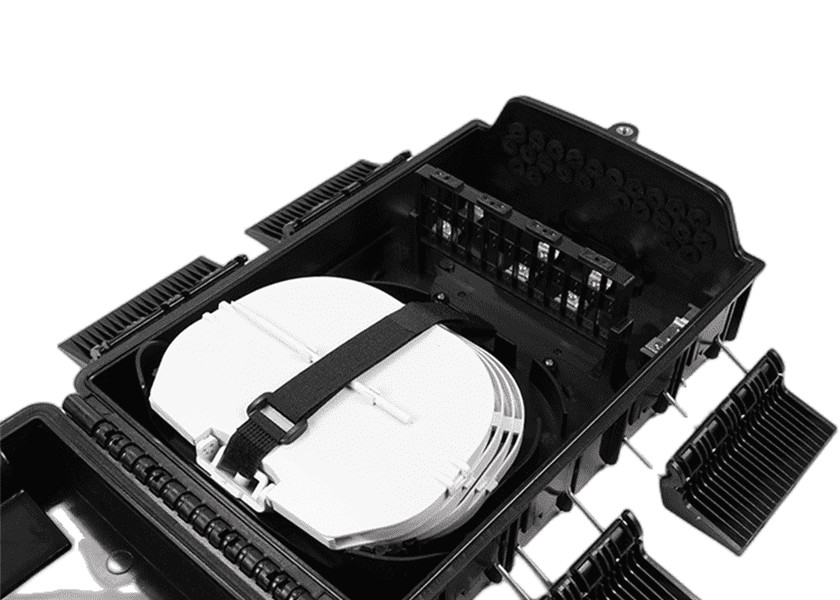

24Port Fiber Optic Terminal Box FATB Indoor/Outdoor SC/LC/FC/ST Aerial-hanging
Description
FATB-0424A fiber access termination box is able to hold up to 24 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
| Name | 5trays FATB Fiber Optic Terminal Enclosure |
| Use | FTTH FTTX FTTB Solutions |
| Application Type | Indoor/Outdoor |
| Installation Way | Wall-mount / Pole-mount / Aerial-hanging |
| Connector Type | SC/LC/FC/ST |
| Fiber Type | SM / MM (OM1, OM2, OM3, OM4) |
| Color | Light Gray/Black |
| Material | PC+ABS |
| Max Capacity | 120Fibers (5trays x 24F), PLC Splitter (3pcs 1x8) |
| Weight | 1.85kg |
Features
♦ Water-proof design with IP-65 Protection Level.
♦ Integrated with flap-up splice cassette and adapter holder.
♦ Maximum 120F splice capacity, stainless anti-rust bolts and nuts.
♦ Easy for maintenance and expansion.
♦ Fiber bend radius control more than 40 mm.
♦ 180 degree access with buckled lock structure.
♦ 3 pcs of 1*8 PLC Splitter can be installed.
♦ 24 pcs of mechanical ports for 3-7 mm drop cable.
♦ 1 mid-span cable entrance (10-16.5 mm) for uncut cable and 2 reserved cable entrances for distribution cable gland (8-13.5 mm).
Configuration
|
Material
|
PC+ABS | Size | 340*220*95mm | |
|
Max Capacity
|
Splice 120 Fibers (5 trays x 24F) |
Nos of Adapter | 24pcs SC/UPC or SC/APC | |
| PLC Splitter 3pcs of 1x8(SC) |
||||
|
Weight
|
1.85kgs | Color | Light Grey/Black | |
Application
♦ Wall-mounted Installation
♦ Pole-mounted Installation
♦ Aerial-hanging Installation
♦ Suitable for 2X3 mm indoor FTTH drop cable and outdoor 4-7 mm figure-8 self-supporting drop cable
Standard Accessories
♦ Splice cassette and cable management tool
♦ Installation nuts and bolts
♦ Protection sleeves
♦ Hose clamp
♦ Cable tube
♦ Key
♦ Wrench
♦ Rubber seal for cable entrance
Optional Accessories
♦ Pole mounted kits
