Simplex Fiber Optic Terminal Box OM3 / OM4 Fiber Splitter Distribution Box

Negotiate
MOQ
Negotiate
Price
Simplex Fiber Optic Terminal Box OM3 / OM4 Fiber Splitter Distribution Box
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Fiber Optic Termination Distribution Box
Use: FTTH FTTX FTTB
Suitable Adapter: SC/LC/ST/FC
Adapter Model: Simplex Or Duplex
Cable Type: SM/MM, OM1, OM2, OM3, OM4
Material: PC+ABS
Color: Grey
Size: 320*240*100mm
High Light:

Simplex Fiber Optic Terminal Box

,

Fiber Optic Terminal Box OM3

,

OM4 Fiber Splitter Distribution Box

Basic Infomation
Place of Origin: China
Brand Name: Twilight Optic
Model Number: TW-FAT-24B-A
Payment & Shipping Terms
Packaging Details: 10 pcs/ Carton, Size:69x29x54cm, G/W:16.5KG
Delivery Time: 3-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/day
Product Description

24Port Fiber Optic Terminal Distribution Box SC/LC/ST/FC Simplex or Duplex



Description



FAT-24B-A fiber access termination box is able to hold up to 24 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Name Fiber Optic Termination Distribution Box
Use FTTH FTTX FTTB
Suitable Adapter SC/LC/ST/FC
Adapter Model Simplex or Duplex
Cable Type SM/MM, OM1, OM2, OM3, OM4
Material PC+ABS
Color Grey
Size 320*240*100mm
Weight 1.5kg
Network 4g, Wired LAN, Wireless Lan



Features

• Water-proof design with IP-66 Protection level.

Integrated with splice cassette and cable management rods.

Manage fibers in a reasonable fiber radius condition.

Easy to maintain and extend the capacity.

Fiber bend radius control more than 40mm.

Suitable for the fusion splice or mechanical splice.

1*8 and 1*16 Splitter can be installed as an option.

Efficient cable management.

24 ports cable entrance for drop cable.



Application

Telecommunication subscriber loop

Fiber to the Home (FTTH)

LAN/WAN



Configuration



Material Size Max Capacity     Weight Color
PC+ABS
320*240*100MM
SC
24 Ports
Box PLC
1x16(SC)
Tube PLC
1x8(SC)
1.5KG Grey





Details Picture

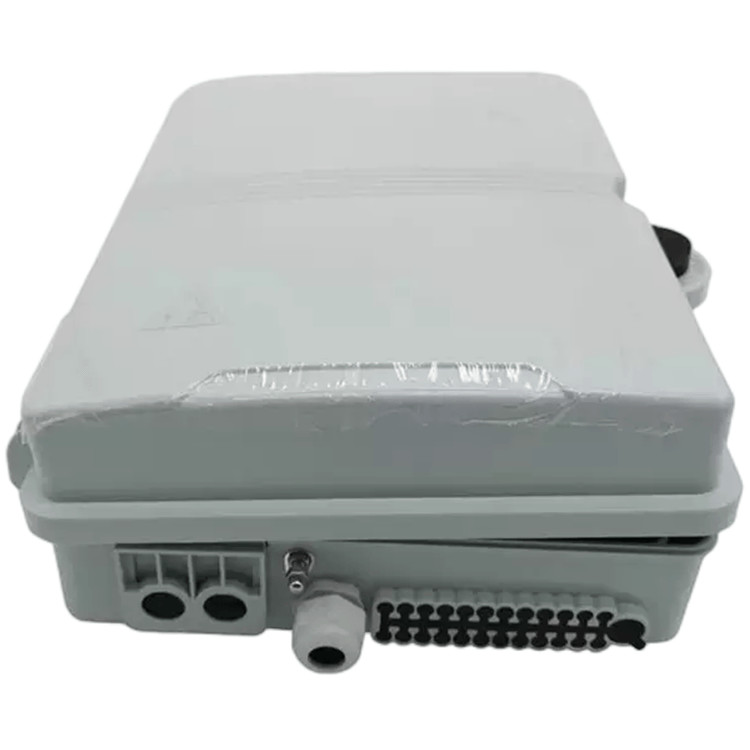

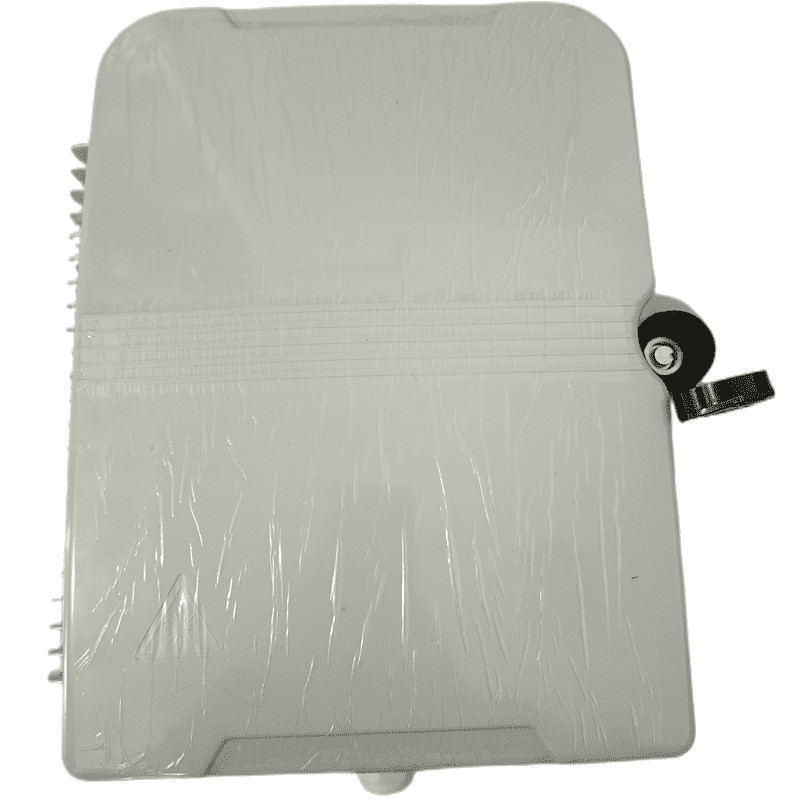

Simplex Fiber Optic Terminal Box OM3 / OM4 Fiber Splitter Distribution Box 0

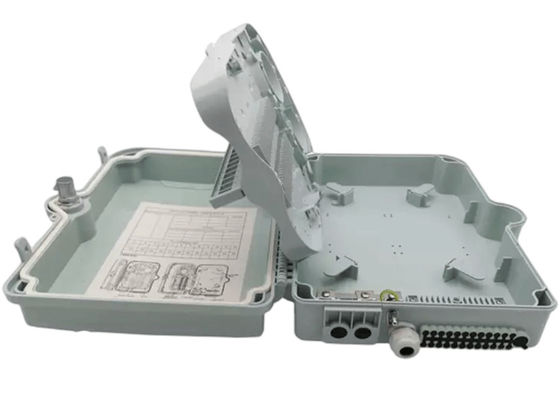

Simplex Fiber Optic Terminal Box OM3 / OM4 Fiber Splitter Distribution Box 1

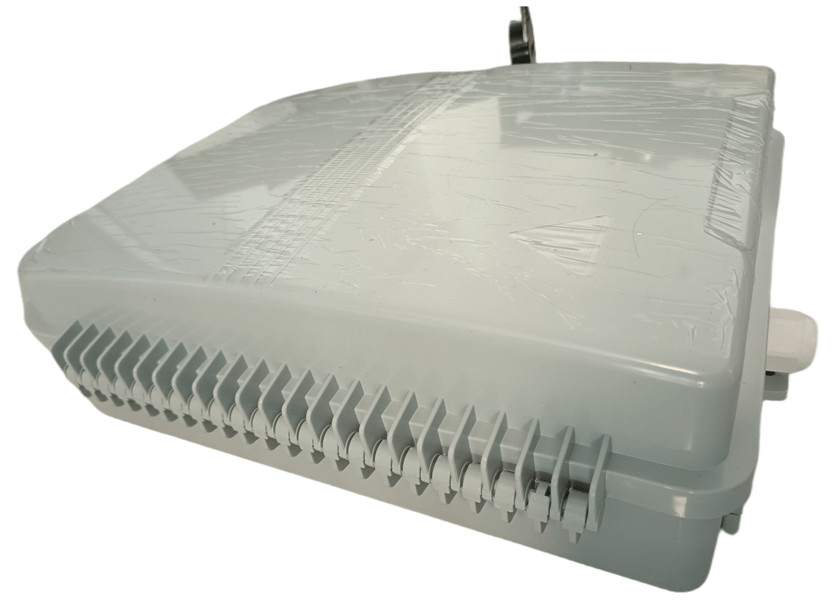

Simplex Fiber Optic Terminal Box OM3 / OM4 Fiber Splitter Distribution Box 2

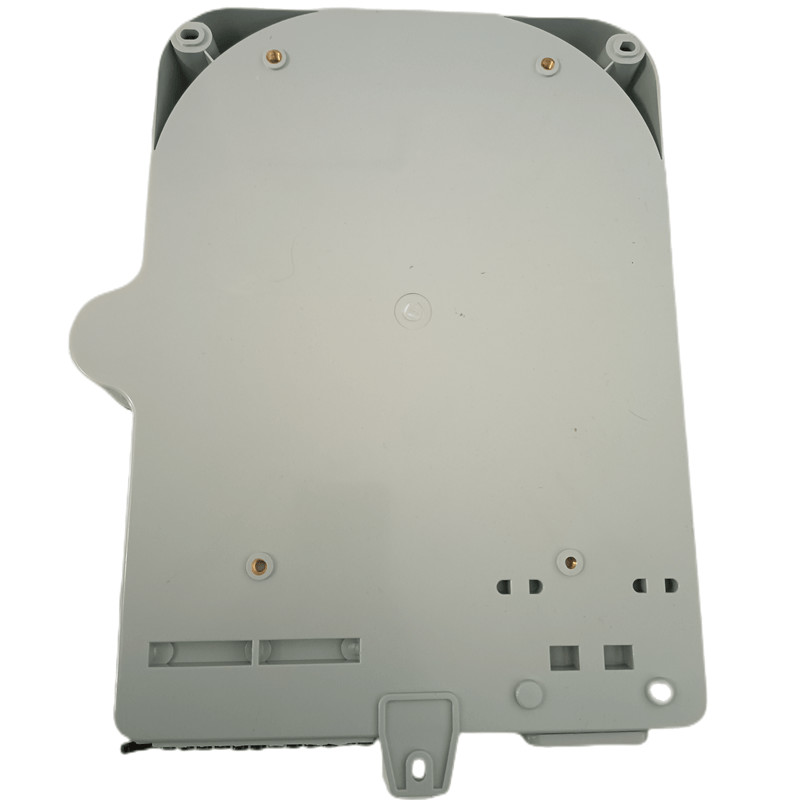

Simplex Fiber Optic Terminal Box OM3 / OM4 Fiber Splitter Distribution Box 3

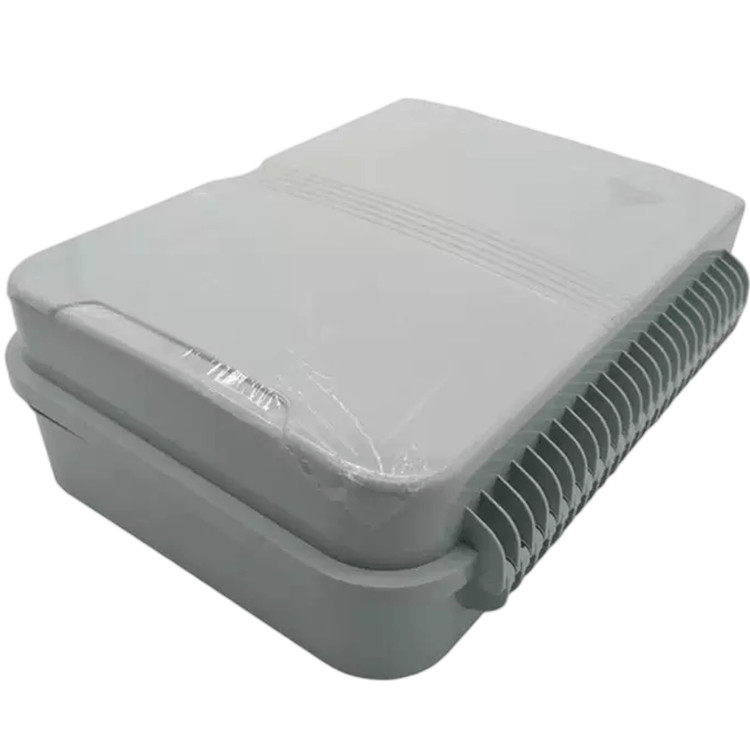

Simplex Fiber Optic Terminal Box OM3 / OM4 Fiber Splitter Distribution Box 4

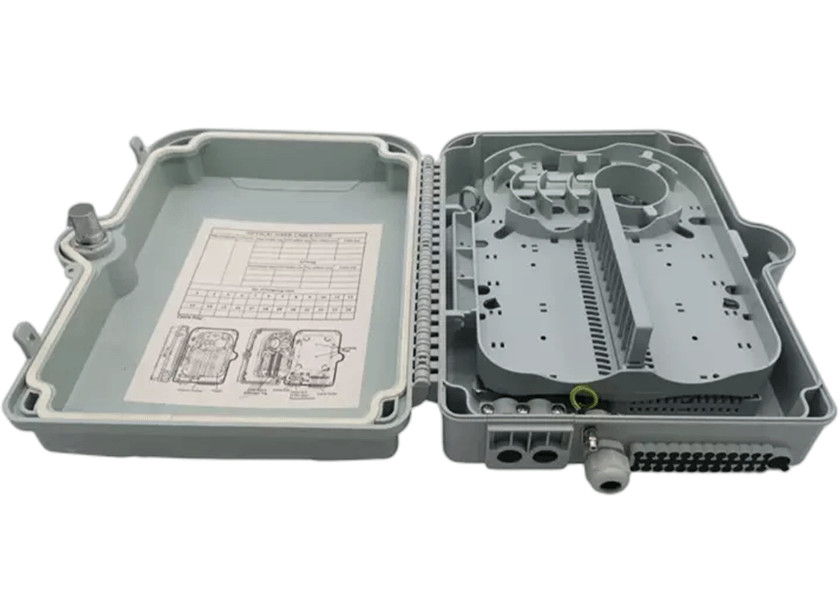

Simplex Fiber Optic Terminal Box OM3 / OM4 Fiber Splitter Distribution Box 5

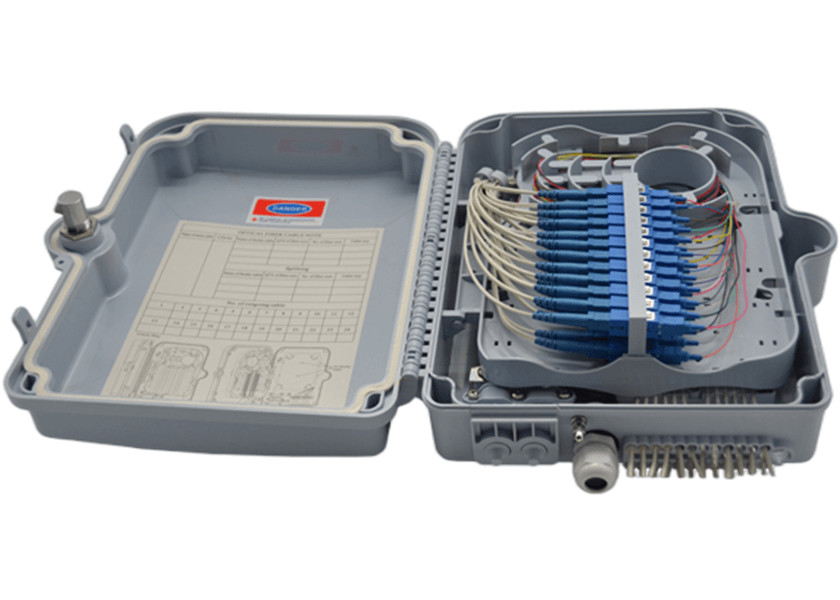

Simplex Fiber Optic Terminal Box OM3 / OM4 Fiber Splitter Distribution Box 6

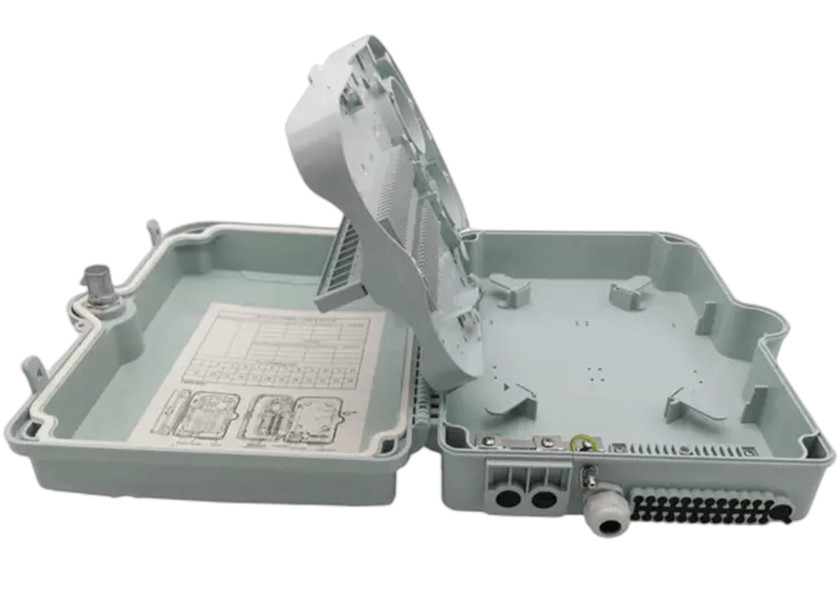

Simplex Fiber Optic Terminal Box OM3 / OM4 Fiber Splitter Distribution Box 7
