16Core Fiber Optic Terminal Box SC/LC/ST/FC UPC/APC FTTH FTTX FTTB
Description
This termination box is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitter, distribution, storage and cable connection in one solid protection box.
| Name | FTTH Distribution Box |
| Use | FTTH FTTX FTTB |
| Application Type | Indoor/Outdoor |
| Mount Type | Wall Mount/Pole Mount |
| Material | PC+ABS |
| Color | Light Grey |
| Adapter Type | SC/LC/ST/FC |
| Ferrule End-face | UPC/APC |
| Size | 220*140*55mm |
| Weight | 1kg |
Features
• Water-proof design with IP-66 Protection Level.
• Integrated with splice cassette and cable management rods.
• Manage fiber in a reasonable fiber radius condition.
• Easy to maintain and extend the capacity.
• Fiber bend radius control more than 40mm.
• 2 pcs 1X8 or 1 oc 1X16 splitter can be installed as an option.
• Efficient cable management.
• 16 ports cable entrance for drop cable.
Configuration
| Material | Size | Max Capacity | Weight | Color | |
| PC+ABS | 220*140*55mm | SC 16 Port | PLC 1X8 or 1X16 MINI PLC Splitter | 1KG | Light Grey |

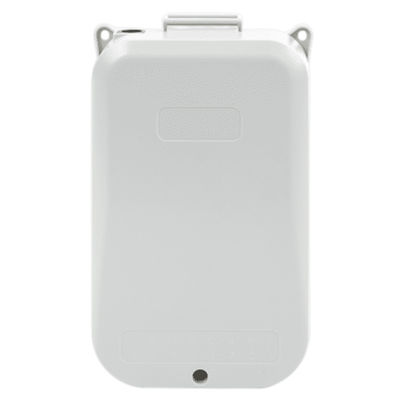

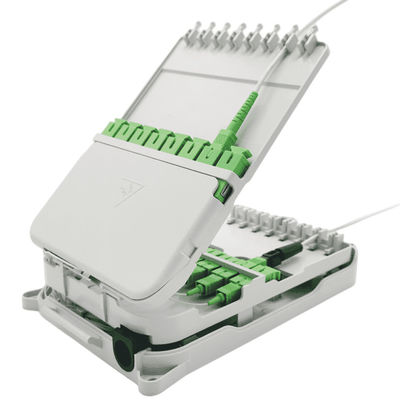

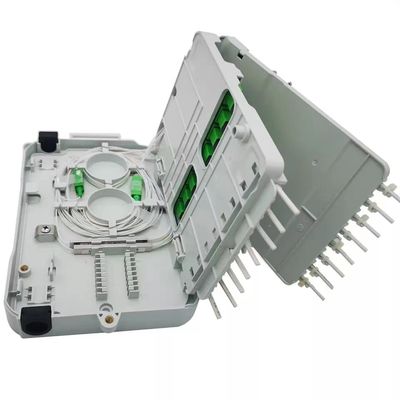

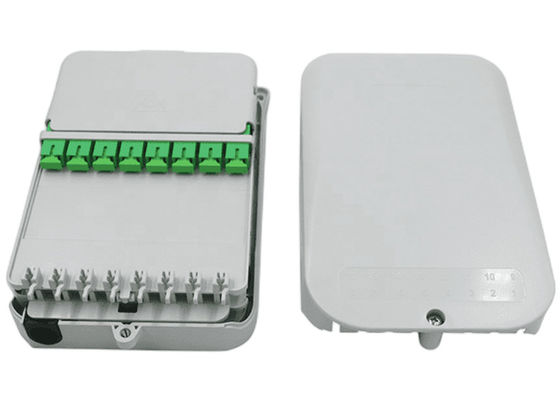

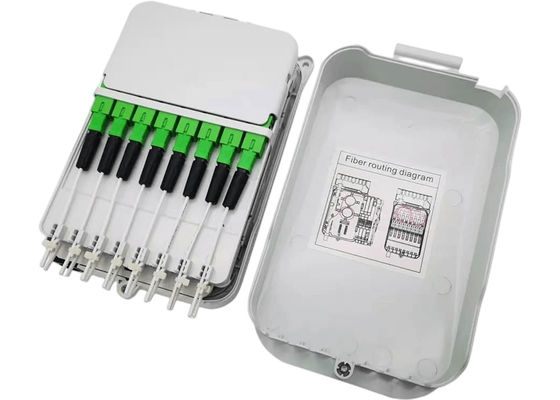

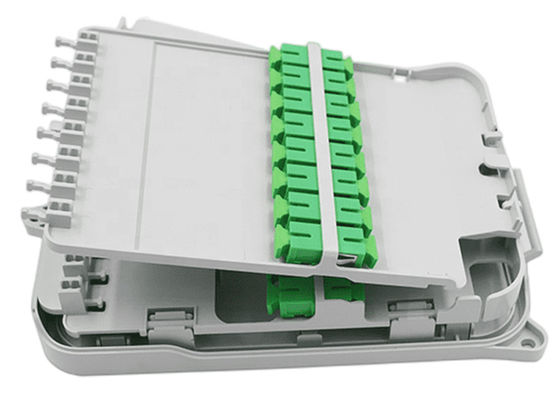

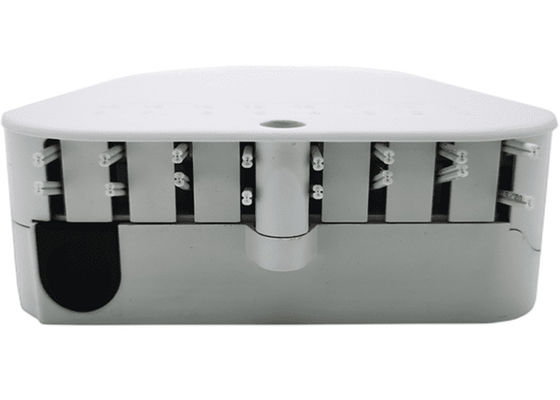

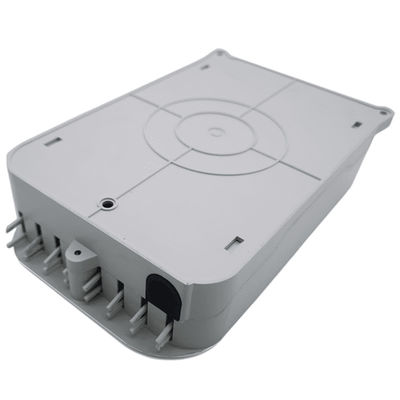

Details Picture
