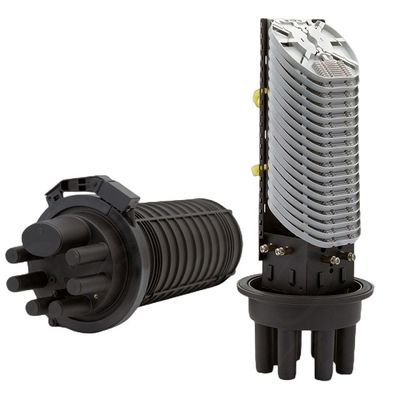

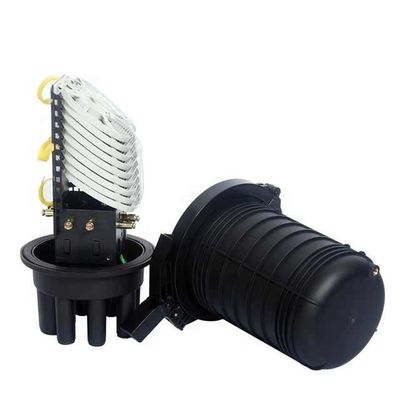

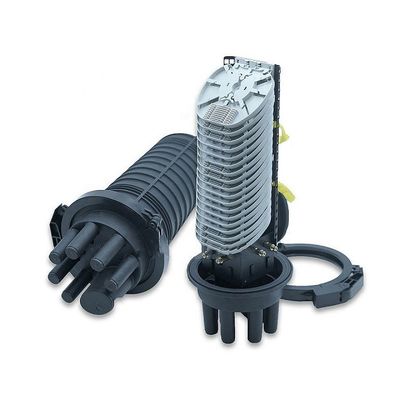

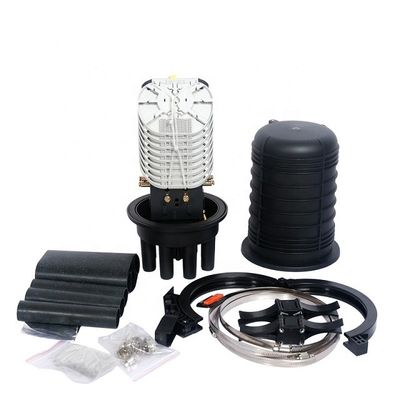

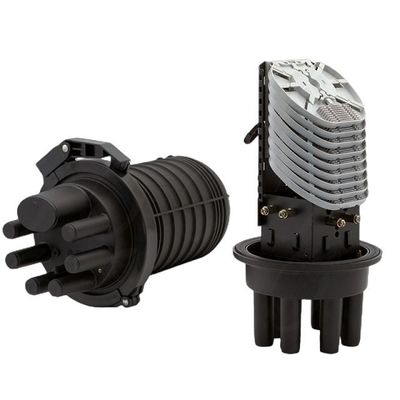

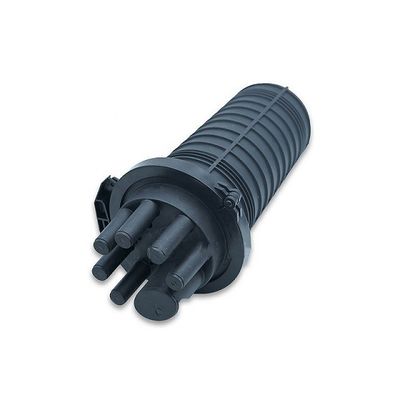

Vertical Dome Fiber Optic Closure Splice 144Core 288Core Dome fiber optical Joint Box
Product Description
A type of dome closure series, used for direct connection during optical fiber transmission process, and provides joint connection protection, with 6 small round cable holes and 1 large cable hole; heat sealing with heat shrinkable casing; can be used for overhead, pole, wall and buried installations. With good sealing performance, the simple installation and wide application range are the best choice for optical fiber connection.
Features
1. There are 7 cable ports: 1 large and 6 small circular holes, the large one can access 2 cables;
2. The box shell is made of high-strength engineering plastics, it has features of light weight, high mechanical strength, anti aging, strong corrosion resistance, lightning resistance, and long service life;

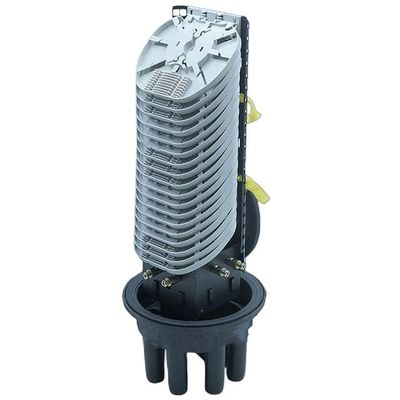

3. Stacked structure splice tray and independent insulation grounding device make the optical fiber core configuration, expansion and the cable grounding flexible, convenient and safe;
4. The splice tray is equipped with splicing slots and a PLC splitter holder, which can be configured at any time according to the needs of direct or divergent connection.
Application
1. Aerial cable installation

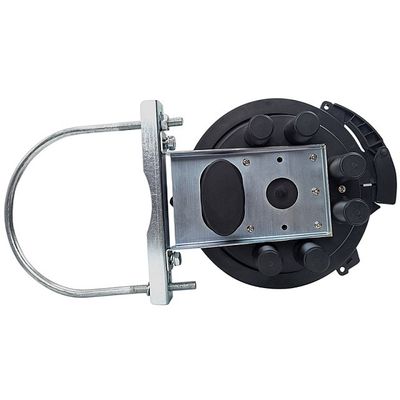

2. Pole mounted installation
3. Wall mounted installation
4. Man hole and hand hole installation
5. FTTH access laver
| Type | GJS-M7 / RS-B-288 | GJS-M7 / RS-B-144 |
| Size(mm) | 230 * 440 | 230 * 320 |
| splitter type | 1:4(2pcs)/1:8(1pc) | 1:4(2pcs)/1:8(2pc) |
| Cable diameter (mm) | 7~20 | 7~20 |
| Splice tray capacity | 16 (single core) | 16 (single core) |
| Cable in /out | 4 / 4 | 4 / 4 |
| Max quantity of splice tray | 18 | 9 |
| Max capacity | 288 (single core) | 144 (single core) |
| Sealing type | heat shrinkable tube, silicon rubber | heat shrinkable tube, silicon rubber |
►144 Core
►288 Core
