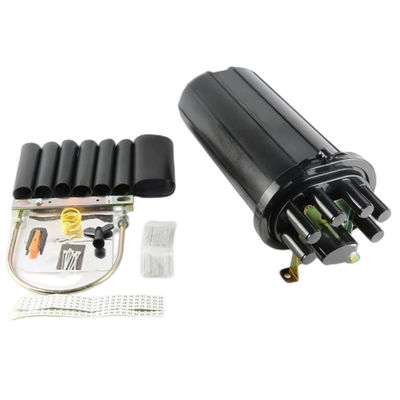

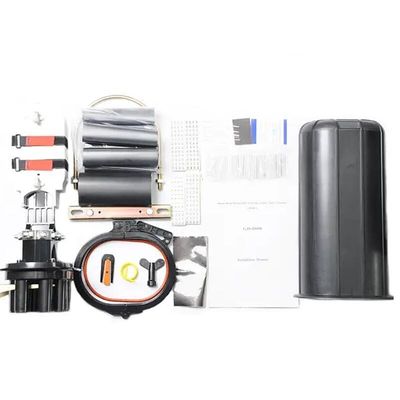

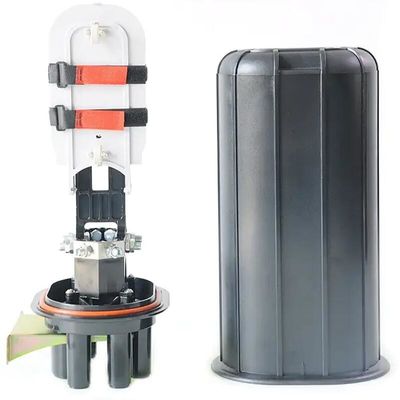

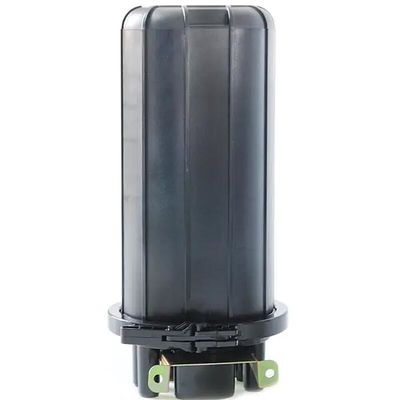

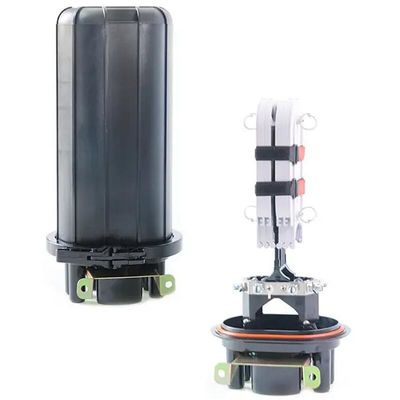

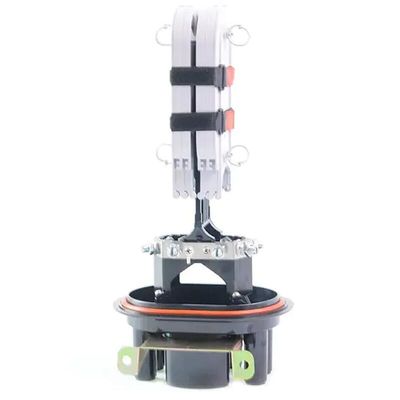

Dome Type Fiber Optic Cable Joint Closure 144 Core Fiber Aerial Terminal Closure
Product Description
GJS-D008 Fiber Optic Splice Closure can be installed in aerial, pole mounting, wall mounting, direct buried and duct mounting.
Features
1. Heat shrinkable sealing structure
2. Suitable for cable diameter 5mm-38mm
3. aerial , underground , pipeline , man holes , hand holes
4. Protection level IP68
5. 360 degrees access , fiber bending > 40mm .
6. Max capacity : 240F single or 576F ribbon
7. Number of trays : 10 pcs x 24F .
Application
1. Aerial cable installation
2. Pole mounted installation
3. Wall mounted installation
4. Man hole and hand hole installation
5. FTTH access laver
| Model | GJS-D008 |
| Type | Dome type |
| Sealing Structure | Heat shrinkable |
| Number of Inlet/Outlet ports | 7 ports |
| Cable Diameter | 1 port×36mm; 6 ports×21mm |
| Maximum Capacity | Bunchy: 240 fibers; Ribbon: 756 fibers |

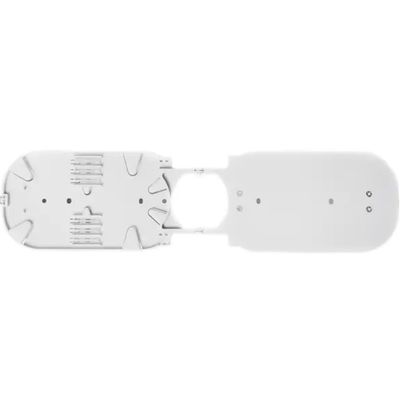

| Capacity per Splice Tray | Bunchy: single layer: 12 fibers; dual layers: 24 fibers; Ribbon: standard: 3pcs; max.: 6pcs |
| Quantity of Splice Tray | 10pcs |
| Body Material | PC |
| Sealing Material | Thermoplastic rubber |
| Assembling method | Aerial, direct buried, pipelined, wall mounting, manhole |
| Dimension | 455(H)×220(D)mm |
| Net Weight | 3~3.6KG |
| Temperature | -40℃~65℃ |
