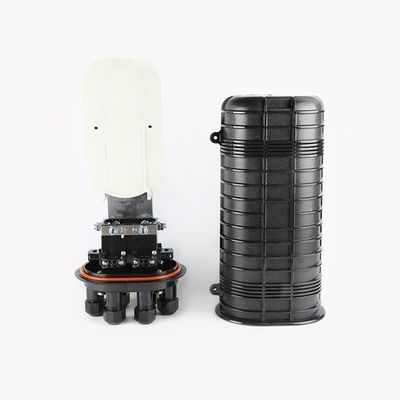

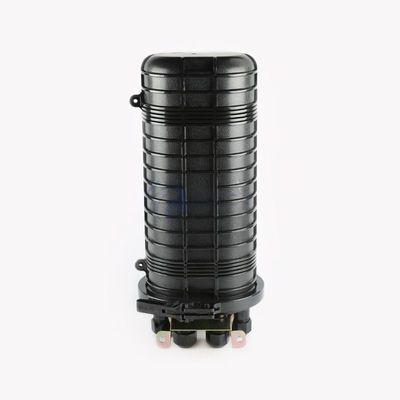

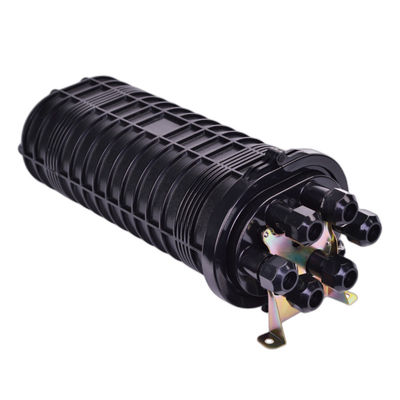

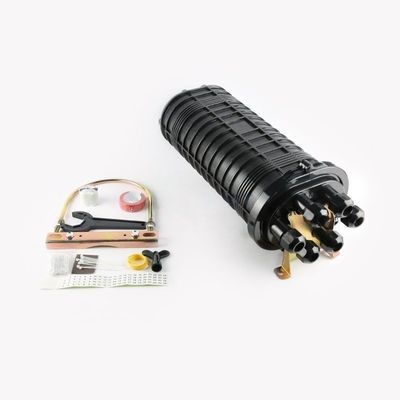

288 Core Fiber Optic Joint Enclosure Ftth Fiber Optic Splice Closure 6 Port Mechanical Seal
Product Description

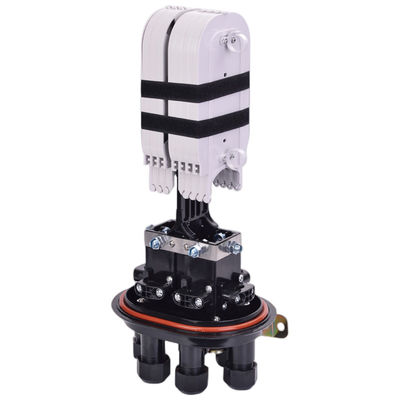

There are 4 fiber optic cable access holes for the splice tray, which meet the requirements of all angles to enter the fiber. The splice tray is injection molded with high-strength engineering plastics. Characteristics: flame retardant, high strength and `mechanical Seal, it can be welded to the maximum of 288 cores. It also can be accommodated 20% additional splice tray in future. The bending radius of the fiber is more than 30mm.
Data
Dimension:480mm×220mm
Capacity of FOSC:Bunchy:48(cores)
Cable entry ports:4 pieces
Diameter of Cable:Φ8mm～Φ16 mm
Assemmbling method:Aerial,Pipeline,Underground,hand-holes
Protection level:IP68
Outter carton size:810*430*325mm
Inner carton size:205*155*305mm
number of Packing:10 pcs/ctn
weight:1800~1910g/pcs
Features
Easy to re-enter Cable entry/exit ports
Pressure testing valve and earth deriving device
Intergrated seal, air tight and water proof
Ideal for cable repair
RoHS compliant
Can be used in through, branch or mid span splice locations
Suitable for aerial, underground duct or direct burial applications
Material : PC
IP68
Application
1.Aerial cable installation
2.Pole mounted installation
3.Wall mounted installation
4.Man hole and hand hole installation
5.FTTH access laver
| Model | GJS-D011 |
| Type | Dome type |
| Sealing Structure | mechanical Seal |
| Number of Inlet/Outlet ports | 6 ports |
| Cable Diameter | Φ8 mm-Φ18 mm |
| Maximum Capacity | 288core |
| Capacity per Splice Tray | 48core |
| Quantity of Splice Tray | 6pcs |
| Body Material | PC |
| Assembling method | Aerial, direct buried, pipelined, wall mounting, manhole |
| Dimension | 480(H)×220(D)mm |
| Net Weight | 3.0~3.6KG |
| Temperature | -40℃~65℃ |
