Outdoor Wall Pole Mounted Fiber Splice Closure 96core Joint Box Fiber Optic Equipment
Product Description

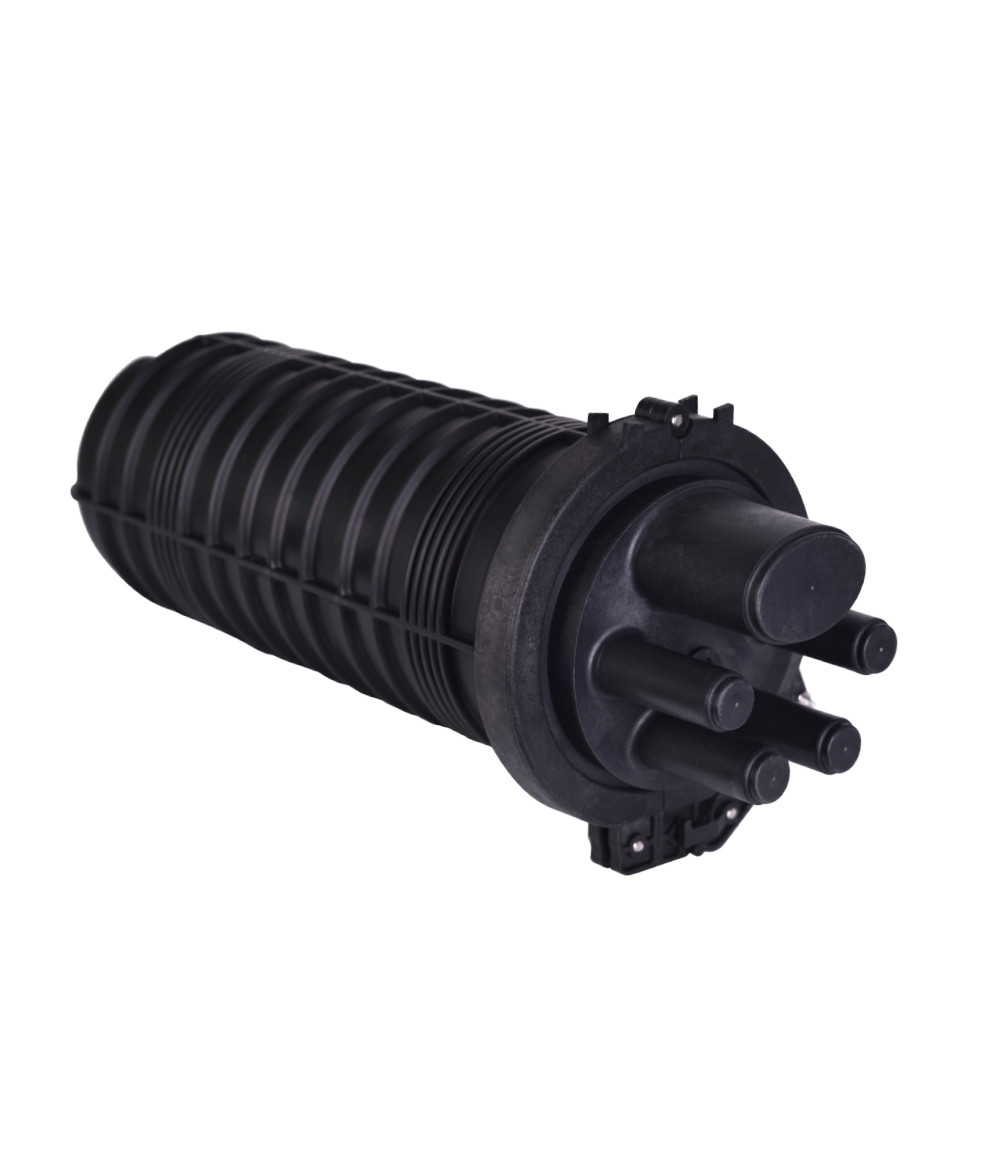

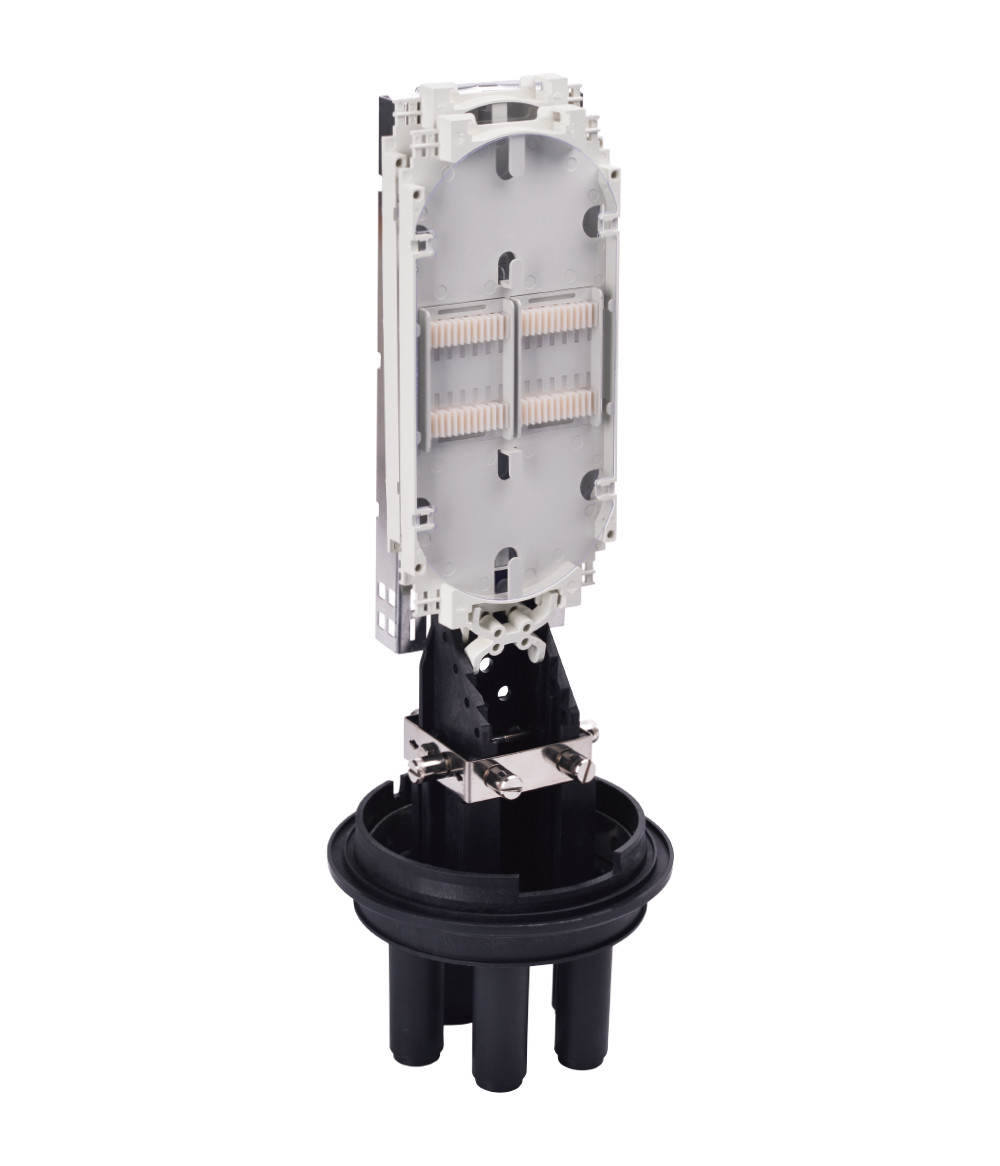

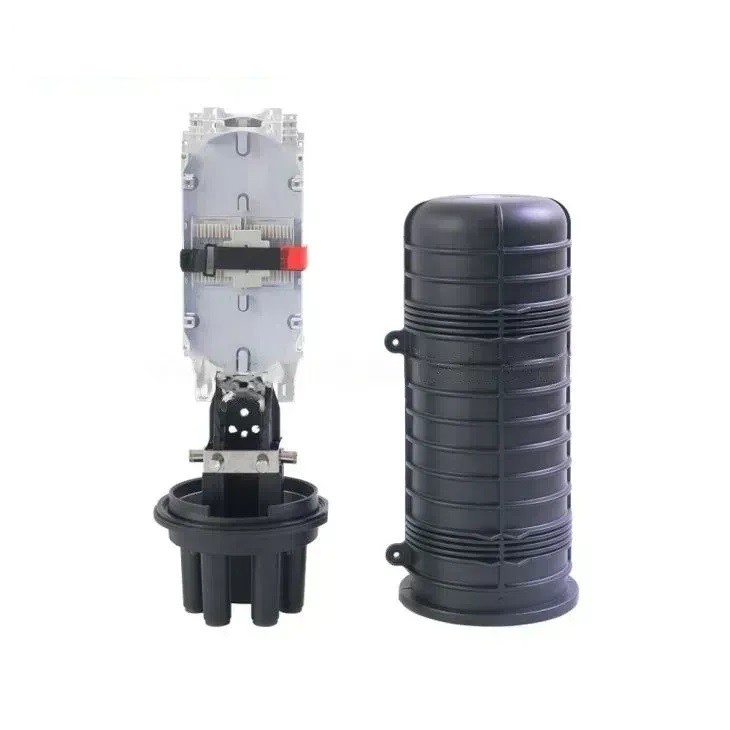

Dome Fiber Optic Splice Closure is used in aerial, wall-mounting applications, for the straight-through and branching splice of the fiber cable. The closure has 5 entrance ports on the end (4 round ports and 1 oval port). The shell of the product is made from Strenathen Polymer Plastic. The shell and the base are sealed by pressing the silicone rubber with clamp allocated. The entry ports are sealed by heat-shrinkable tube. The closures can be opened again after be sealed, reused again without changing the sealing material.
Features
1. Suitable for aerial, duct, and underground application.
2. Intergrated seal, air tight and water proof
3. Quick open clamped design, Easy to re-enter
4. Reliable gasket sealing, reopened repeatedly without changing sealing material
5. Suitable for ribbon fibers,Ideal for cable repair
Application
1. Aerial cable installation
2. Pole mounted installation
3. Wall mounted installation
4. Man hole and hand hole installation
5. FTTH access laver
| Model | TW-GJS-D017 |
| Type | Dome type |
| Sealing Structure | Heat shrinkable |
| Number of Inlet/Outlet ports | 5 ports |
| Cable Diameter | 5-38mm |
| Maximum Capacity | 96 Cores |

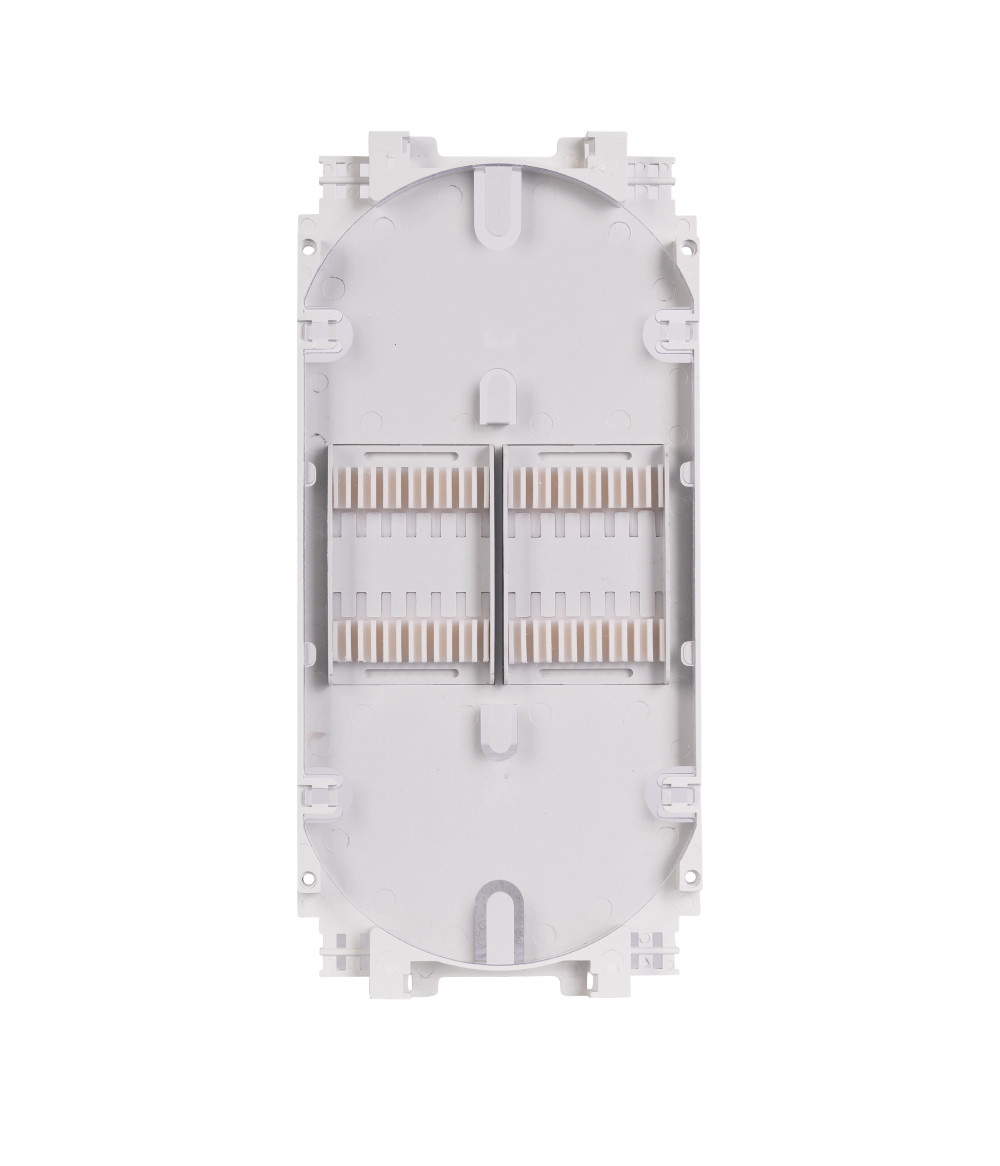

| Capacity per Splice Tray | 24 Cores |
| Quantity of Splice Tray | 4pcs |
| Body Material | Strenathen Polymer Plastic |
| Sealing Material | Thermoplastic rubber |
| Assembling method | Aerial, direct buried, pipelined, wall mounting, manhole |
| Dimension | 460(H)×205(D)mm |
| Net Weight | 2.3KG |
| Temperature | -40℃~65℃ |
