12Cores Fiber Optic Terminal Box SC/LC/FC/ST Simplex/Duplex Indoor/Outdoor

Negotiate
MOQ
Negotiate
Price
12Cores Fiber Optic Terminal Box SC/LC/FC/ST Simplex/Duplex Indoor/Outdoor
Features Gallery Product Description Request A Quote
Features
Specifications
Name: 12/24Ports Fibra Optica Termination Enclosure
Use: FTTH FTTX FTTB Solutions
Application Type: Indoor/Outdoor
Material: PC+ABS
Color: Light Gray
Adaper Type: SC/LC/FC/ST
Fiber Type: SM/MM
Max Capacity: 12Cores (SC), 24Cores (LC), 1X8PLC (SC)
Adapter Mode: Simplex/Duplex
Work Temperature: -40℃ - +70℃
Basic Infomation
Place of Origin: China
Brand Name: Twilight Optic
Model Number: TW-FAT-12C
Payment & Shipping Terms
Packaging Details: 20 pcs/ Carton, Size:57x46x52cm, G/W:23.5KG
Delivery Time: 3-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/day
Product Description

12Cores Fiber Optic Terminal Box SC/LC/FC/ST Simplex/Duplex Indoor/Outdoor



Description



FAT-12C fiber access termination box is able to hold up to 12 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Name 12/24Ports Fibra Optica Termination Enclosure
Use FTTH FTTX FTTB Solutions
Application Type Indoor/Outdoor
Mounting Type Wall-mounte/Pole-mounted
Material PC+ABS
Color Light Gray
Adaper Type SC/LC/FC/ST
Fiber Type                                       SM/MM
Max Capacity 12Cores (SC), 24Cores (LC), 1X8PLC (SC)
Adapter Mode Simplex/Duplex
Size
250*200*72mm
Weight 1.0kg
Working temperature -40℃ - +85℃
Atmospheric pressure                         70KPa - 106Kpa





Features



♦ Water-proof design with IP-66 Protection level.

Integrated with splice cassette and cable management rods.

Manage fibers in a reasonable fiber radius condition.

Easy to maintain and extend the capacity.

Fiber bend radius control more than 40mm.

Suitable for the fusion splice or mechanical splice.

1 pcs of 1*12 Splitter can be installed as an option.

Efficient cable management.

12 ports cable entrance for drop cable.


Configuration

Material Size Max Capacity     Weight Color
PC+ABS
250*200*72MM

SC

12Cores

LC

24Cores

PLC

1*8 (SC)

1.0kg Light Gray



Details Picture

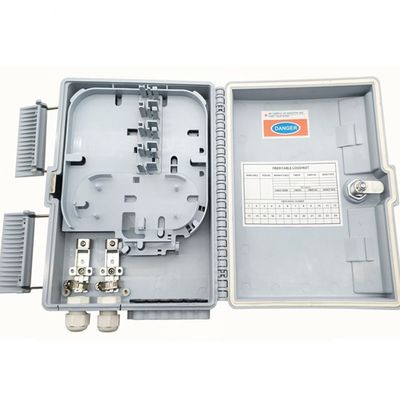

12Cores Fiber Optic Terminal Box SC/LC/FC/ST Simplex/Duplex Indoor/Outdoor 0

12Cores Fiber Optic Terminal Box SC/LC/FC/ST Simplex/Duplex Indoor/Outdoor 1

12Cores Fiber Optic Terminal Box SC/LC/FC/ST Simplex/Duplex Indoor/Outdoor 2

12Cores Fiber Optic Terminal Box SC/LC/FC/ST Simplex/Duplex Indoor/Outdoor 3

12Cores Fiber Optic Terminal Box SC/LC/FC/ST Simplex/Duplex Indoor/Outdoor 4
