Fiber Optic Terminal Box 8Core SM/DX SC/LC/ST/FC Light Gray/Black IP 66

Negotiate
MOQ
Negotiate
Price
Fiber Optic Terminal Box 8Core SM/DX SC/LC/ST/FC Light Gray/Black IP 66
Features Gallery Product Description Request A Quote
Features
Specifications
Name: 8cores Fiber Optic Terminal Distribution Enclosure
Application: FTTH FTTX
Application Type: Indoor Or OutdoorIndoor Or Outdoor
Water Proof Grade: IP 66
Fiber Type: SM/MM
Adapter Mode: SM/DX
Connecting Adapter: SC/LC/ST/FC
Max Capacity: 8Core (SC), 16Core (LC), 1X8 PLC (SC)
Material: PC+ABS
Color: Light Gray/Black
Basic Infomation
Place of Origin: China
Brand Name: Twilight Optic
Model Number: TW-FAT-8C-B
Payment & Shipping Terms
Packaging Details: 20 pcs/ Carton, Size:61x46x24cm, G/W:14KG
Delivery Time: 3-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/day
Product Description

Fiber Optic Terminal Box 8Core SM/DX SC/LC/ST/FC Light Gray/Black IP 66



Description



FAT-8C-B fiber access termination box is able to hold up to 8 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Name 8cores Fiber Optic Terminal Distribution Enclosure
Application FTTH FTTX
Application Type                                 Indoor or Outdoor
Water Proof Grade IP 66
Fiber type SM/MM
Adapter Mode SM/DX
Connecting Adapter SC/LC/ST/FC
Max Capacity 8Core (SC), 16Core (LC), 1X8 PLC (SC)
Material PC+ABS
Color Light Gray/Black
Size 225*220*55mm
Weight  0.6KG





Features

§  Water-proof design with IP-66 Protection level.

§  Integrated with splice cassette and cable management rods.

§  Manage fibers in a reasonable fiber radius condition.

§  Easy to maintain and extend the capacity.

§  Fiber bend radius control more than 40mm.

§  Suitable for the fusion splice or mechanical splice.

§  1*8 Splitter can be installed as an option.

§  Efficient cable management.

§  8 ports cable entrance for drop cable.


Configuration

Material Size Max Capacity Weight Color
PC+ABS 225*220*55MM

SC

8Core

LC

16Core

PLC

1X8 (SC)

0.6KG Light Gray/Black


Application

§  Local Area Network

§  CATV Network

§  FTTX System

§  Wide Area Network

§  Data commnication

§  Network





Details Picture

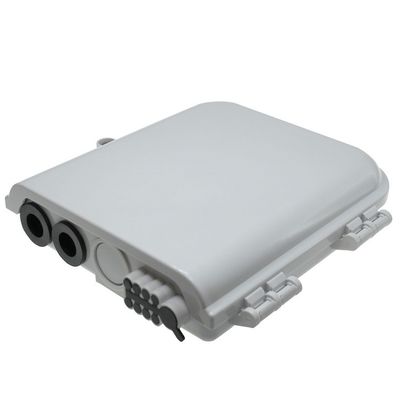

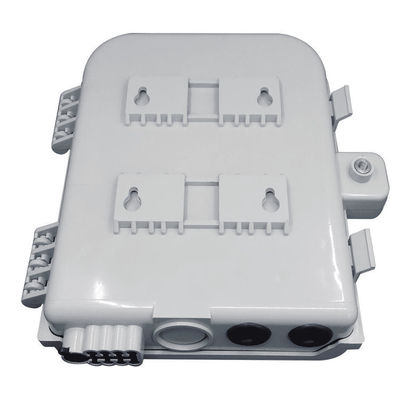

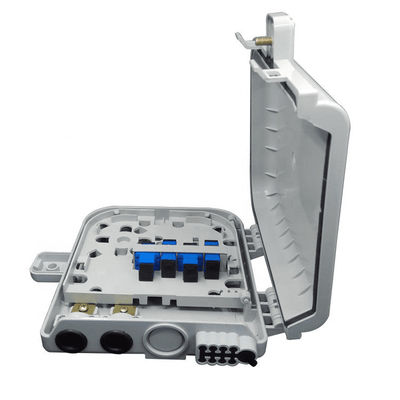

Fiber Optic Terminal Box 8Core SM/DX SC/LC/ST/FC Light Gray/Black IP 66 0

Fiber Optic Terminal Box 8Core SM/DX SC/LC/ST/FC Light Gray/Black IP 66 1

Fiber Optic Terminal Box 8Core SM/DX SC/LC/ST/FC Light Gray/Black IP 66 2



Packaging Details

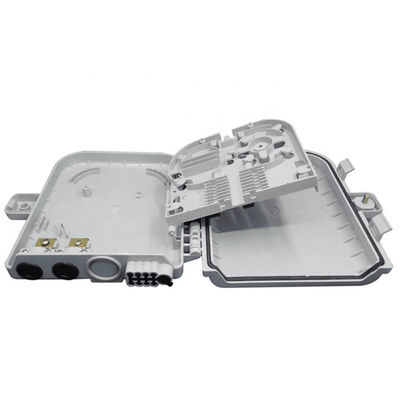

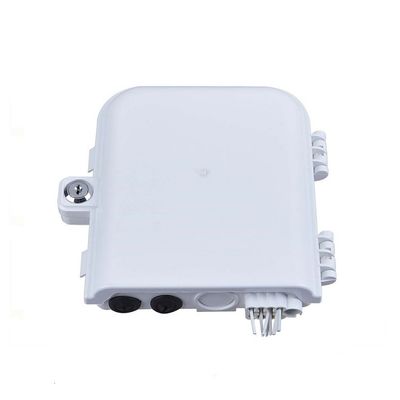

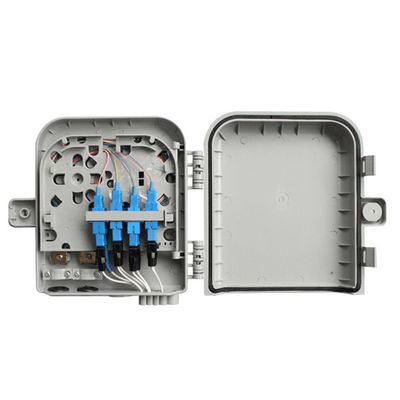

Fiber Optic Terminal Box 8Core SM/DX SC/LC/ST/FC Light Gray/Black IP 66 3

Fiber Optic Terminal Box 8Core SM/DX SC/LC/ST/FC Light Gray/Black IP 66 4

Fiber Optic Terminal Box 8Core SM/DX SC/LC/ST/FC Light Gray/Black IP 66 5
