Abs Plastic Din Rail Mount Optical Fiber Terminal Box 12 Adapters Lc/Upc Simplex

Negotiable
MOQ
Negotiable
Price
Abs Plastic Din Rail Mount Optical Fiber Terminal Box 12 Adapters Lc/Upc Simplex
Features Gallery Product Description Request A Quote
Features
Specifications
Name: DIN Rail Fibre Enclosure
Material: ABS Plastic
Size: 129x130x35mm.
Adapter: LC/UPC Simplex
Color: White
Weight: 0.22kg
Nnumber Of Cable Entries: 2
Basic Infomation
Place of Origin: Guangdong
Brand Name: Twilight Optic
Model Number: TW-DRB06
Payment & Shipping Terms
Packaging Details: Inner box and carton box,20PCS/CTN, Carton Size:42*42*36CM, GW: 6.8KG.
Delivery Time: 7-10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs per week
Product Description

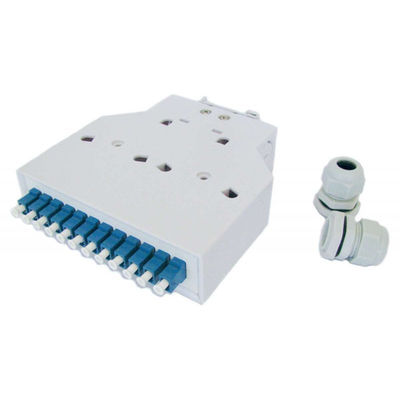

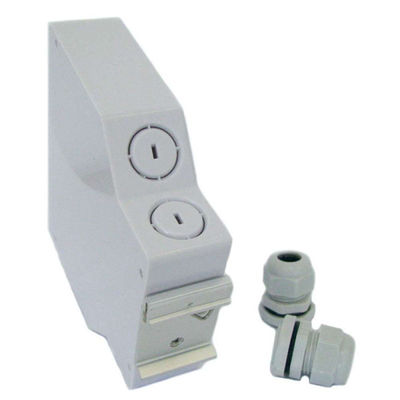

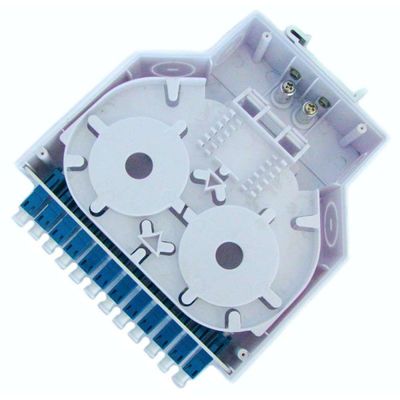

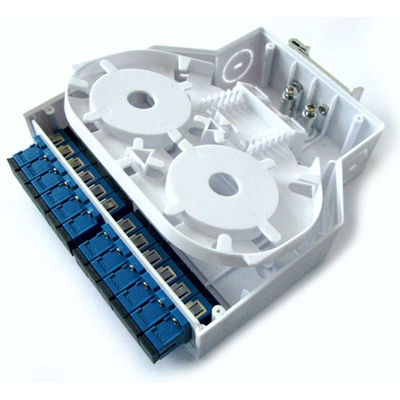

Abs Plastic Din Rail Mount Optical Fiber Terminal Box 12 Adapters Lc/Upc Simplex


Description:

Fiber optic DIN rail mounted terminal box is available for the distribution and terminal connection for various kinds of optical fiber system, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected.



Specification:

Dimension Material Adapter port Max capacity Cable port Application
129*130*40mm PC+ABS 12 LC Simplex 12 fibers 2 ports DIN rail mounted





Accessories:

Item Name Specification Unit Qty
1 Heat shrinkable protection sleeves 45*2.6*1.2mm pcs As per using capacity
2 Cable tie 3*120mm white pcs 2



Features :

a. Total enclosed structure;
b. PC+ABS,wet-proof,water-proof,dust-proof,anti-aging, protection level up to IP65;
c. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one;
d. Cable,pigtails,patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance;
e. Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation;
f. Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.

Abs Plastic Din Rail Mount Optical Fiber Terminal Box 12 Adapters Lc/Upc Simplex 0

Abs Plastic Din Rail Mount Optical Fiber Terminal Box 12 Adapters Lc/Upc Simplex 1Abs Plastic Din Rail Mount Optical Fiber Terminal Box 12 Adapters Lc/Upc Simplex 2Abs Plastic Din Rail Mount Optical Fiber Terminal Box 12 Adapters Lc/Upc Simplex 3
