Fiber Optic Terminal Box 12Port SC/LC/ST/FC IP-66 UPC/APC Light Gray FTTH

Negotiate
MOQ
Negotiate
Price
Fiber Optic Terminal Box 12Port SC/LC/ST/FC IP-66 UPC/APC Light Gray FTTH
Features Gallery Product Description Request A Quote
Features
Specifications
Name: 12/24Cores Fiber Optic Distribution Terminal Enclosure
Application: FTTX FTTH
Material: PC ABS
Color: Light Gray
Network: 4g, Wired LAN, Wireless Lan
Waterproof: IP-66 Protection Level
Suitable Adapter: SC/LC/ST/FC
Ferrule End-face: PC, UPC/APC
Demention: 225*200*65MM
Weight: 0.85KG
Basic Infomation
Place of Origin: China
Brand Name: Twilight Optic
Model Number: TW-FAT-12A
Payment & Shipping Terms
Packaging Details: 20 pcs/ Carton, Size:76x45x25cm, G/W:18.5KG
Delivery Time: 3-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/day
Product Description

Fiber Optic Terminal Box 12Port SC/LC/ST/FC IP-66 UPC/APC Light Gray FTTH



Description



FAT-12A fiber access termination box is able to hold up to 12 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Name 12/24Cores Fiber Optic Distribution Terminal Enclosure
Application FTTX FTTH
Material                                PC ABS
Color Light Gray
Network 4g, Wired LAN, Wireless Lan
Waterproof IP-66 Protection level
Suitable Adapter SC/LC/ST/FC
Ferrule End-face PC, UPC/APC
Demention 225*200*65MM
Weight 0.85KG





Features

► Water-proof design with IP-66 Protection level.

► Integrated with splice cassette and cable management rods.

► Manage fibers in a reasonable fiber radius condition.

► Easy to maintain and extend the capacity.

► Fiber bend radius control more than 40mm.

► Suitable for the fusion splice or mechanical splice.

► 1*8 Splitter can be installed as an option.

► Efficient cable management.

► 12 ports cable entrance for drop cable.


Configuration



Material
Size
Max Capacity

Installation size
Weight
Color
PC+ABS
A*B*C(mm)
225*200*65
SC
12 Ports
LC
24 Ports
PLC
1x8(SC)
D*E(mm)
168*210
0.85kg
Light Gray

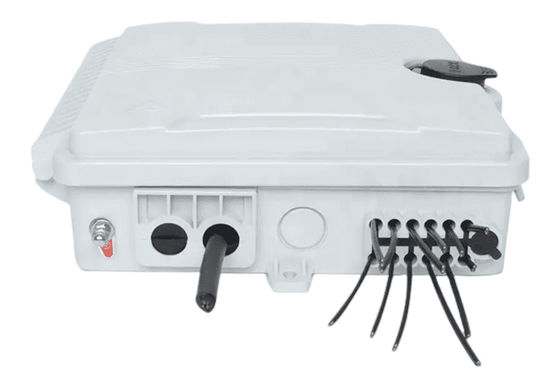

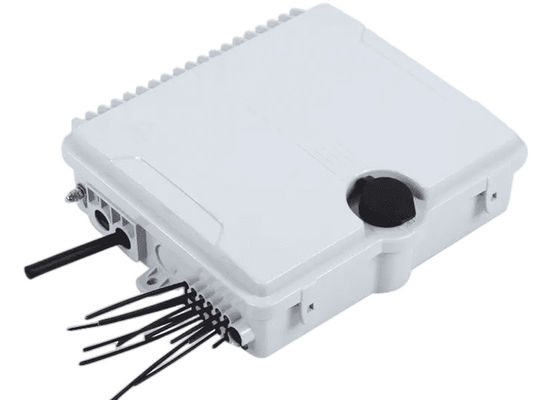

Fiber Optic Terminal Box 12Port SC/LC/ST/FC IP-66 UPC/APC Light Gray FTTH 0

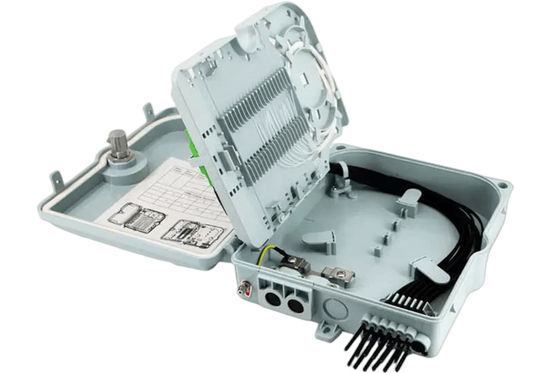

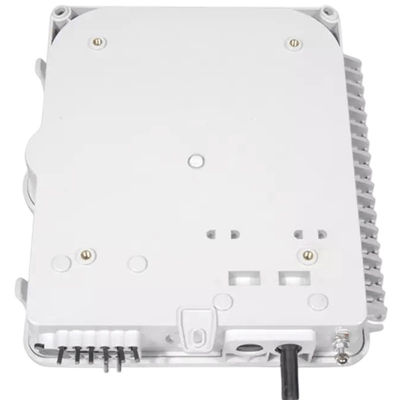

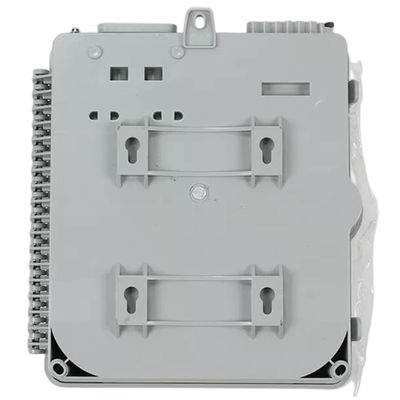

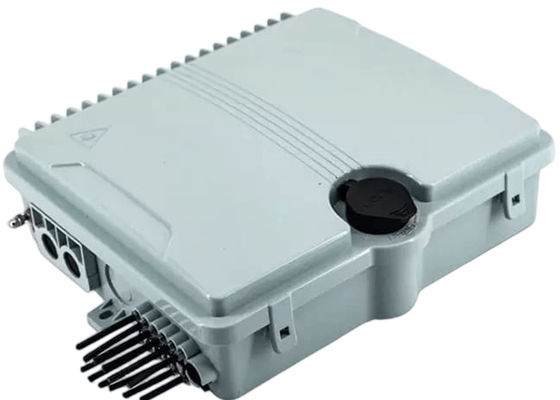

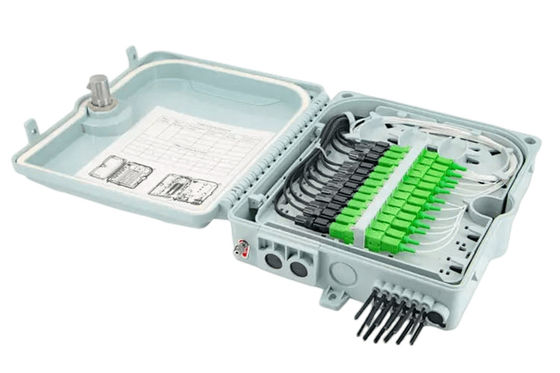

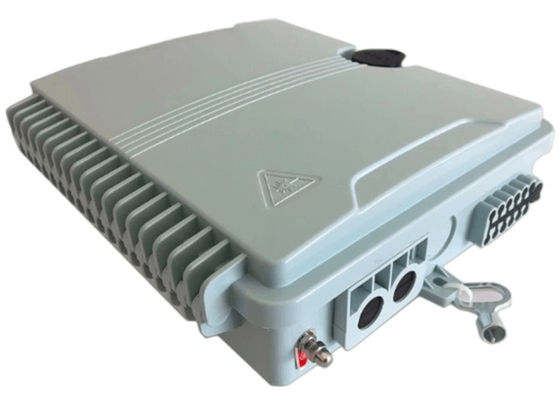

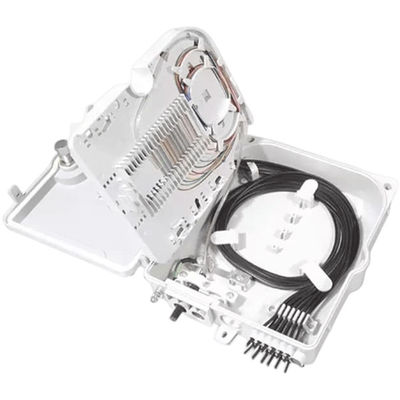

Details Picture

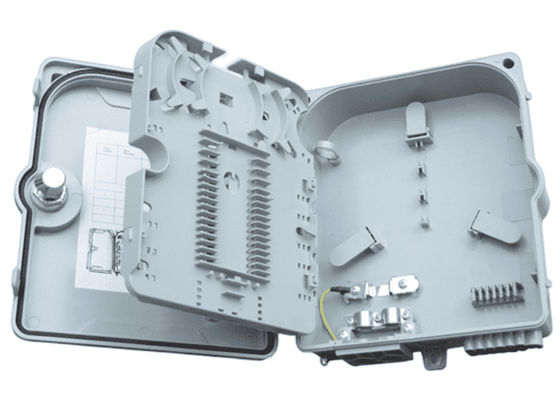

Fiber Optic Terminal Box 12Port SC/LC/ST/FC IP-66 UPC/APC Light Gray FTTH 1

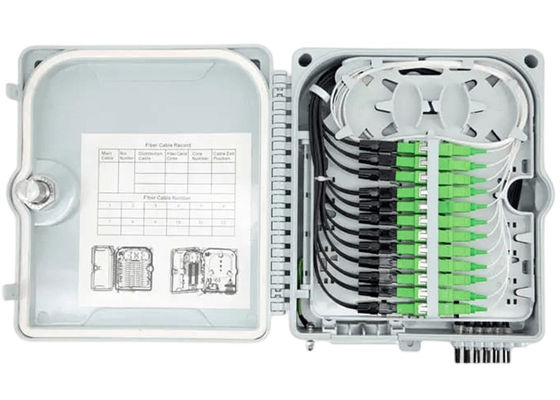

Fiber Optic Terminal Box 12Port SC/LC/ST/FC IP-66 UPC/APC Light Gray FTTH 2

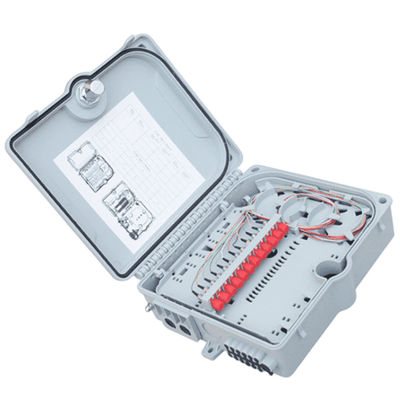

Fiber Optic Terminal Box 12Port SC/LC/ST/FC IP-66 UPC/APC Light Gray FTTH 3

Fiber Optic Terminal Box 12Port SC/LC/ST/FC IP-66 UPC/APC Light Gray FTTH 4

Fiber Optic Terminal Box 12Port SC/LC/ST/FC IP-66 UPC/APC Light Gray FTTH 5

Fiber Optic Terminal Box 12Port SC/LC/ST/FC IP-66 UPC/APC Light Gray FTTH 6

Fiber Optic Terminal Box 12Port SC/LC/ST/FC IP-66 UPC/APC Light Gray FTTH 7

Fiber Optic Terminal Box 12Port SC/LC/ST/FC IP-66 UPC/APC Light Gray FTTH 8

Fiber Optic Terminal Box 12Port SC/LC/ST/FC IP-66 UPC/APC Light Gray FTTH 9

Fiber Optic Terminal Box 12Port SC/LC/ST/FC IP-66 UPC/APC Light Gray FTTH 10

Fiber Optic Terminal Box 12Port SC/LC/ST/FC IP-66 UPC/APC Light Gray FTTH 11







► Pole-Mounted can also be made as an option





Fiber Optic Terminal Box 12Port SC/LC/ST/FC IP-66 UPC/APC Light Gray FTTH 12















Packaging Details





Fiber Optic Terminal Box 12Port SC/LC/ST/FC IP-66 UPC/APC Light Gray FTTH 13

Fiber Optic Terminal Box 12Port SC/LC/ST/FC IP-66 UPC/APC Light Gray FTTH 14
