8Port Fiber Optic Terminal Box IP-66 Protection Level SM SC Wall Pole Mount

Negotiate
MOQ
Negotiate
Price
8Port Fiber Optic Terminal Box IP-66 Protection Level SM SC Wall Pole Mount
Features Gallery Product Description Request A Quote
Features
Specifications
Name: 8Port Fibre Optique Distribution Enclosure
Use: FTTX Solutions
Mount Type: Wall Or Pole Mount
Fiber Type: SM Or MM (OM1, OM2, OM3, OM4)
Protection Level: IP-66
Connecting Adapter: SC, LC, ST, FC
Insertion Loss: <0.2dB
Operating Temperature: -40-+75℃
Size: 213*163*47MM
Weight: 0.8kg
Basic Infomation
Place of Origin: China
Brand Name: Twilight Optic
Model Number: TW-FAT-8A
Payment & Shipping Terms
Packaging Details: 20 pcs/ Carton, Size:61x27x42cm, G/W:12.5KG
Delivery Time: 3-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/day
Product Description

8Port Fiber Optic Terminal Box IP-66 Protection Level SM SC Wall Pole Mount



Description



FAT-8A fiber access termination box is able to hold up to 8 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Name 8Port Fibre Optique Distribution Enclosure
Use FTTX Solutions
Mount Type Wall or Pole Mount
Fiber type SM or MM (OM1, OM2, OM3, OM4)
Protection Level IP-66
Connecting Adapter SC, LC, ST, FC
Insertion loss <0.2dB
Operating Temperature -40-+75℃
Size 213*163*47MM
Weight 0.8KG





Features



• Water-proof design with IP-66 Protection level.

• Integrated with splice cassette and cable management rods.

• Manage fibers in a reasonable fiber radius condition.

• Easy to maintain and extend the capacity.

• Fiber bend radius control more than 40mm.

• Suitable for the fusion splice or mechanical splice.

• Efficient cable management.

• 8 ports cable entrance for drop cable.


Configuration

Material Size Max Capacity Weight Color
PC+ABS
A*B*C(mm)
213*163*47
SC
8 Ports
0.8kg
White





Details Picture

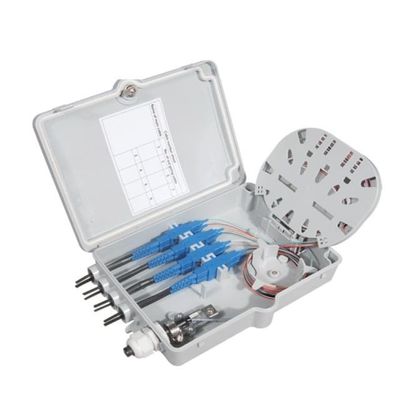

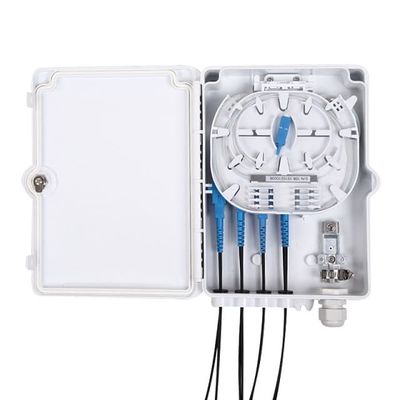

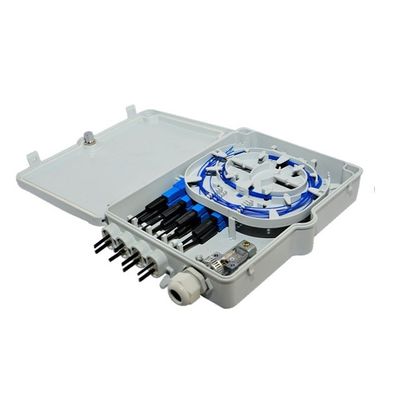

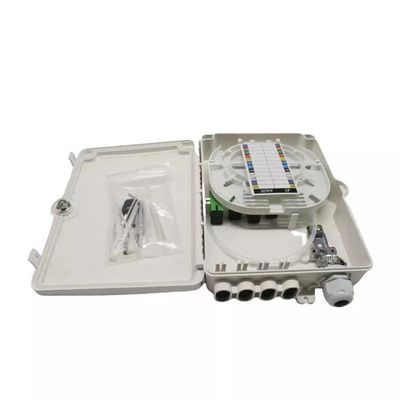

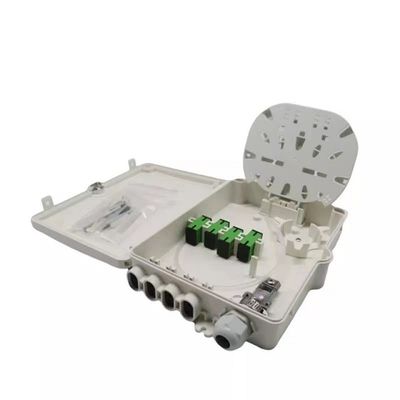

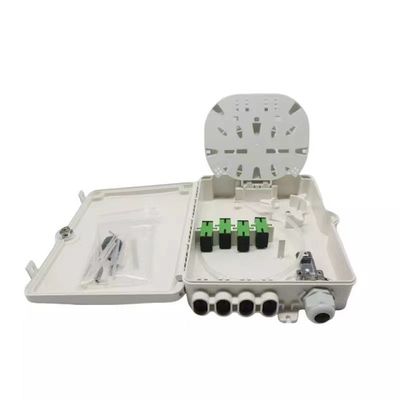

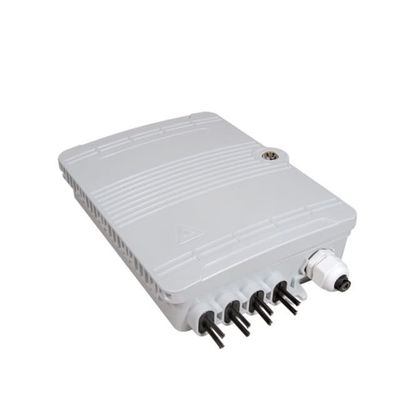

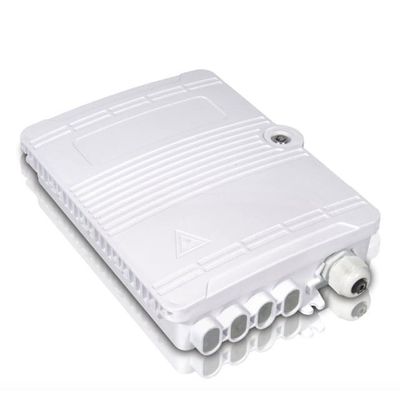

8Port Fiber Optic Terminal Box IP-66 Protection Level SM SC Wall Pole Mount 0

8Port Fiber Optic Terminal Box IP-66 Protection Level SM SC Wall Pole Mount 1

8Port Fiber Optic Terminal Box IP-66 Protection Level SM SC Wall Pole Mount 2

8Port Fiber Optic Terminal Box IP-66 Protection Level SM SC Wall Pole Mount 3

8Port Fiber Optic Terminal Box IP-66 Protection Level SM SC Wall Pole Mount 4
