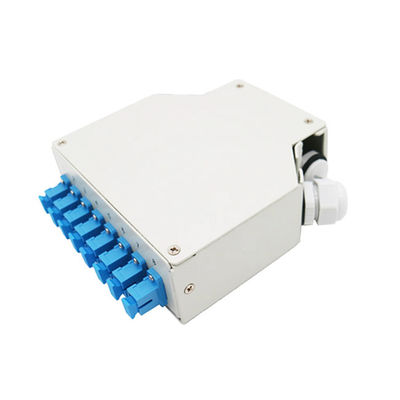

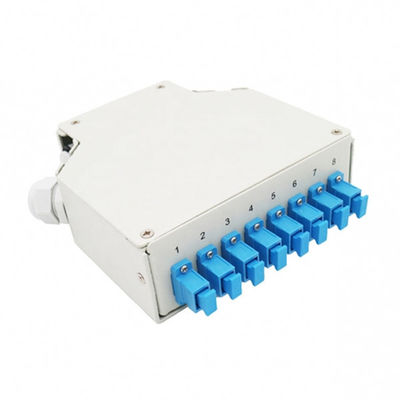

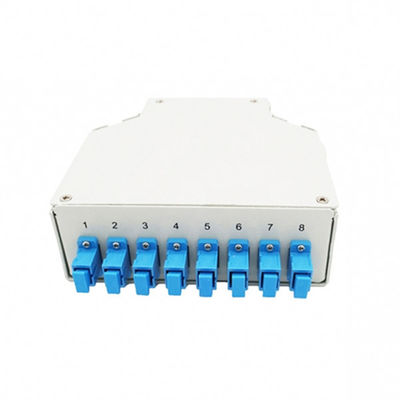

8 Port DIN rail mounted Fiber Optic DIN Rail Terminal Box With SC/UPC Adapter singemode pigtails
DIN Rail Fiber optic terminal box is available for the distribution and terminal connection for various kinds of optical fiber system, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected. All of the Din Rail Boxes can be fully populated.
Features:
Aluminum, electrostatic painting
Suitalbe for different adapters: FC, SC, ST, LC …
2pcs cable entry/exit ports; 12pcs pigtail entry/exit ports

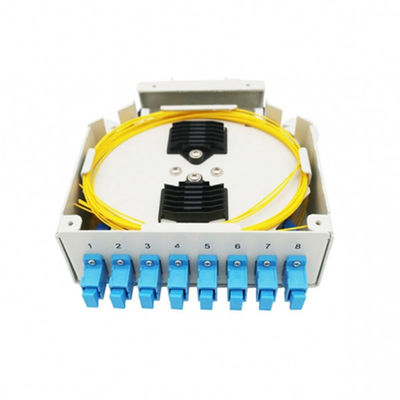

Splicing module of 12 fibers inside
Max. 12pcs adapters can be loaded
Specification:
| Dimension | Material | Adapter | Max capacity | Cable port | Application |
| 129*130*40mm | Cold-Roll Steel | 8 SC Simplex | 8 fibers | 2 ports | DIN rail mounted |
Accessories:
| Item | Name | Specification | Unit | Qty |
| 1 | Heat shrinkable protection sleeves | 45*2.6*1.2mm | pcs | As per using capacity |
| 2 | Cable tie | 3*120mm white | pcs | 2 |
Application:
Suitable for Pigtail, ribbon and bunch cable connect distribution
Used for wall-mounted applications
Used in FTTH, Telecommunications, CATV ect.
