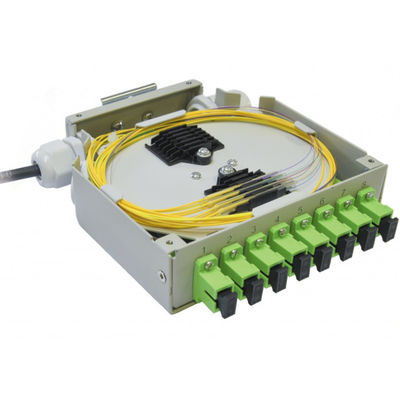

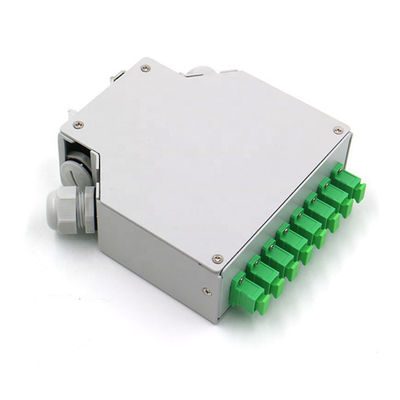

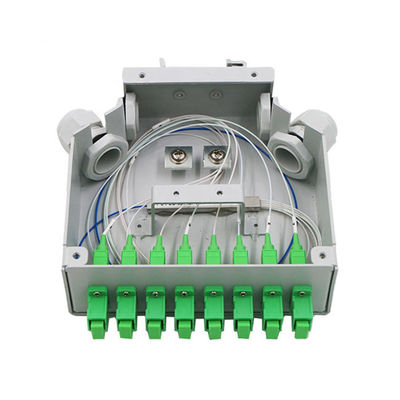

8 Fibers Sc/Apc Fiber Optic Din Rail Terminal Box Grey Cold Rolled Steel

Negotiable
MOQ
Negotiable
Price
8 Fibers Sc/Apc Fiber Optic Din Rail Terminal Box Grey Cold Rolled Steel
Features Gallery Product Description Request A Quote
Features
Specifications
Name: DIN Rail Fiber Optic Terminal Box
Material: Cold Rolled Steel
Adapter Port: SC Simplex
Capacity: 8 Fibers
Adapter Type: SC/APC
Color: Grey
Size: 129*130*40MM
Application: FTTH FTTB FTTX Network
Basic Infomation
Place of Origin: Guangdong
Brand Name: Twilight Optic
Model Number: TW-DRB02-8SCSX
Payment & Shipping Terms
Packaging Details: Inner box and carton box,30 pcs/Carton Carton Size :60*33*37cm G/W: 24KG
Delivery Time: 7-15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs per week
Product Description

8 Fibers SC/APC Fiber Optic DIN Rail Terminal Box Grey Cold Rolled Steel



Fiber Optic DIN Rail Terminal Box with 8 sc simplex adapter is metal box special designed to be snapped on din rail ,DIN RAIL fiber box accepts one modular panel making it ideal for smaller fibre count applications of up to 8 fibers.This compact enclosure makes it possible to direct terminations or fusion splices in much smaller protected areas.



Features:
● Integrated splice holders (fusion splices)
● 2pcs cable entry/exit ports; 8pcs pigtail entry/exit ports
● IP20 protection

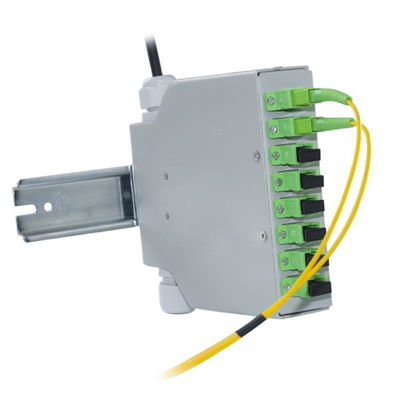

● Rear or aside DIN rail fixation
● 2x rear entries (PG 11 cable gland)
● Grey color



Specification:

Dimension Material Adapter port Splicing capacity Cable port Application
129*130*40mm Cold-Roll Steel 8 SC Simplex Max. 8 fibers 4 ports DIN rail mounted





Accessories:

Item Name Specification Unit Qty
1 Heat shrinkable protection sleeves 45*2.6*1.2mm pcs As per using capacity
2 Cable tie 3*120mm white pcs 2



Application:
Suitable for Pigtail, ribbon and bunch cable connect distribution Used for wall-mounted applications.
Used in FTTH, Telecommunications, CATV etc.
