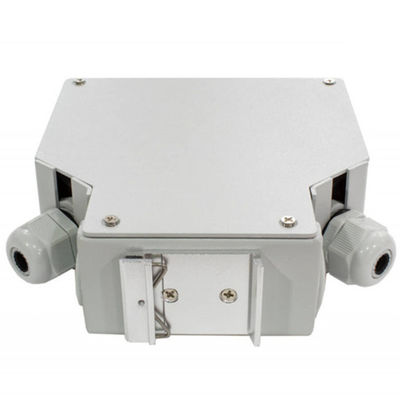

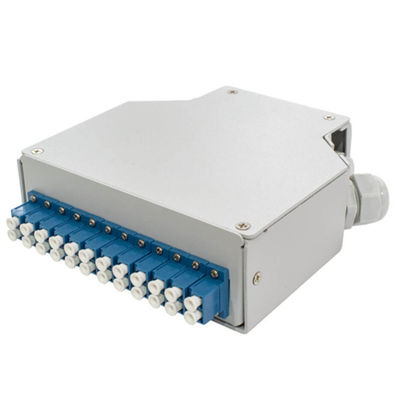

24 core Fiber Optic DIN Rail Terminal Box With 12 Pcs LC/APC Duplex Aadapter

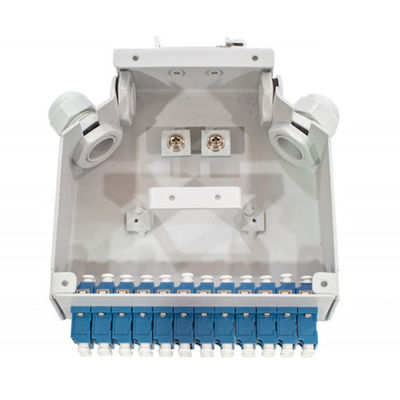

The din rail termination box comes with 12xLC duplex adapter holes. This splicing equipment is suitable for
distribution and termination of various kinds of optical fiber cables, especially for mini networks in which the optical cables,
atch cords, adaptors and pigtails are connected.
Specification:
| Dimension | Material | Adapter port | Max capacity | Cable port | Application |
| 129*130*40mm | Cold-Roll Steel | 12 LC Duplex | 24 fibers | 4 ports | DIN rail mounted |
Features:
Aluminum, electrostatic painting
Suitalbe for different adapters: FC, SC, ST, LC …
2pcs cable entry/exit ports; 12pcs pigtail entry/exit ports

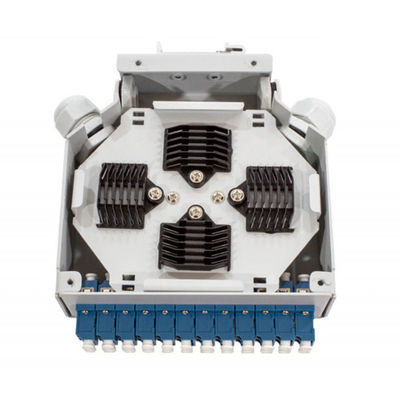

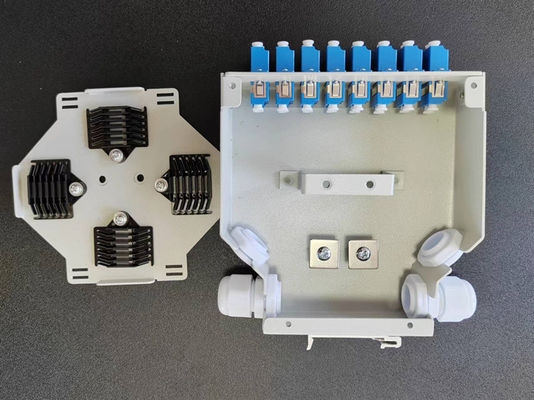

Splicing module of 12 fibers inside
Max. 12pcs adapters can be loaded
Accessories:
| Item | Name | Specification | Unit | Qty |
| 1 | Heat shrinkable protection sleeves | 45*2.6*1.2mm | pcs | As per using capacity |
| 2 | Cable tie | 3*120mm white | pcs | 2 |
Application:
Suitable for Pigtail, ribbon and bunch cable connect distribution
Used for wall-mounted applications
Used in FTTH, Telecommunications, CATV ect.
Front Panels:
| 6 SC duplex adapters |
| 6 ST/LC duplex adapters |
| 4/6 ST simplex adapters |
| 8 LC simplex adapters |
| 8 LC Duplex adapters |
| 12 SC/LC simplex adapters |
| 12 LC duplex adapters |
| 12 ST simplex adapters |
|
Others on request
|
