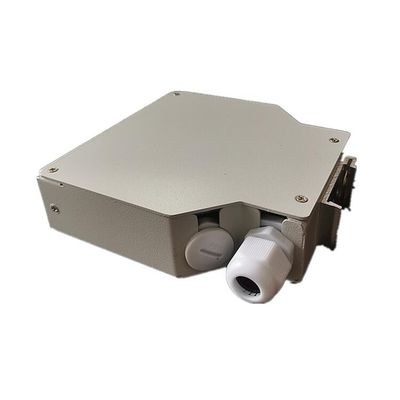

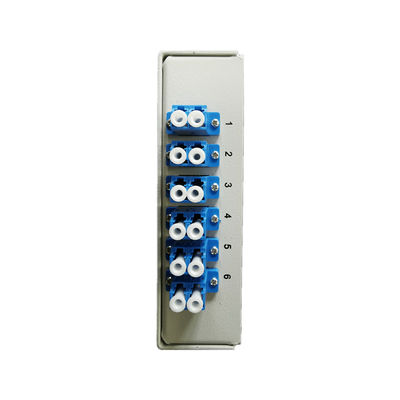

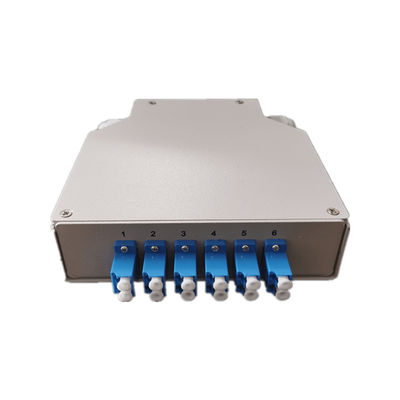

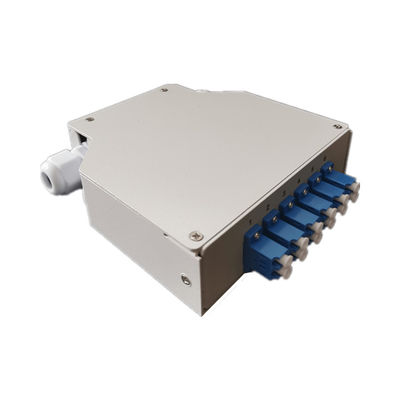

12 Core Cold Rolled Steel Fiber Optic Din Rail Terminal Box With Lc Duplex Adapter
The Fibre Optic Terminal Box with DIN Rail is available for connection, distribution and termination of various types of fibre optic systems. It is particularly suitable for terminal distribution in mini-networks in which optical cables, patch cores or pigtails are connected. All DIN Rail terminal boxes can be fully equipped.
Features:

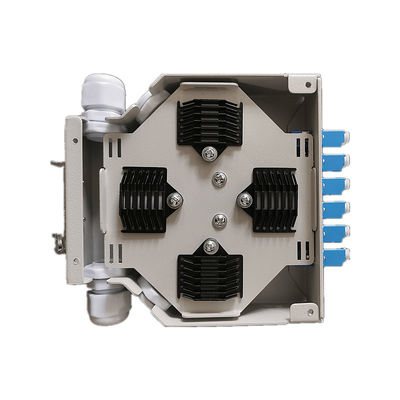

● Integrated splice holders (fusion splices)
● 2pcs cable entry/exit ports; 12pcs pigtail entry/exit ports
● IP20 protection

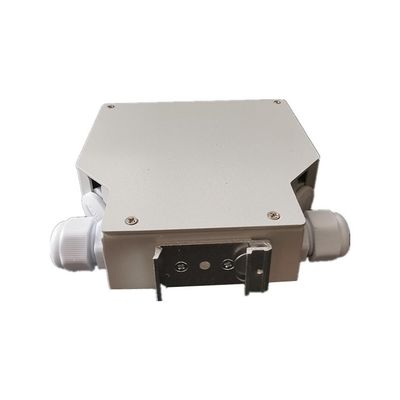

● Rear or aside DIN rail fixation
● 2x rear entries (PG 11 cable gland)
● Grey color
Specification:
| Dimension | Material | Adapter port | Splicing capacity | Cable port | Application |
| 129*130*40mm | Cold-Roll Steel | 6 LC Duplex | Max. 12 fibers | 4 ports | DIN rail mounted |
Accessories:
| Item | Name | Specification | Unit | Qty |
| 1 | Heat shrinkable protection sleeves | 45*2.6*1.2mm | pcs | As per using capacity |
| 2 | Cable tie | 3*120mm white | pcs | 2 |
Application:
Suitable for Pigtail, ribbon and bunch cable connect distribution Used for wall-mounted applications.
Used in FTTH, Telecommunications, CATV etc.
