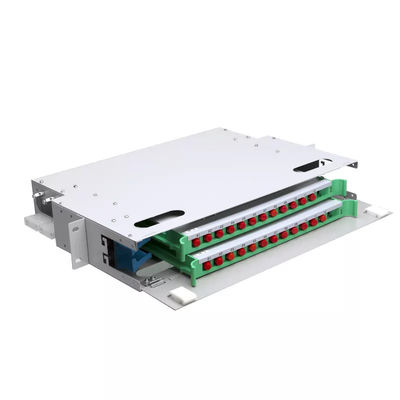

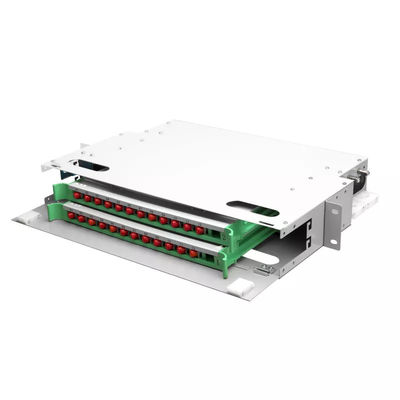

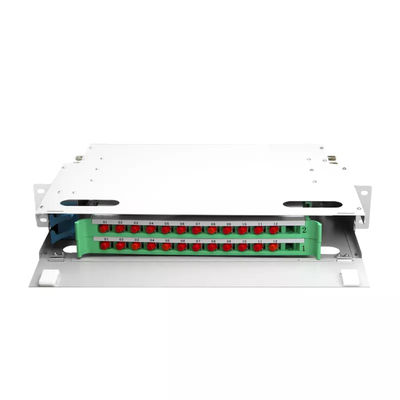

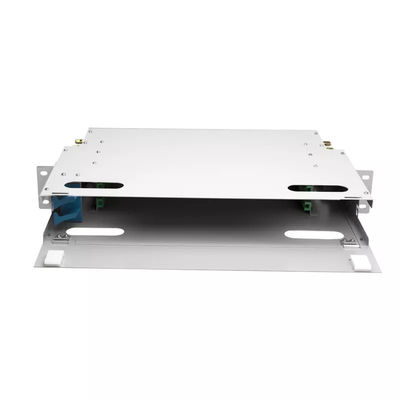

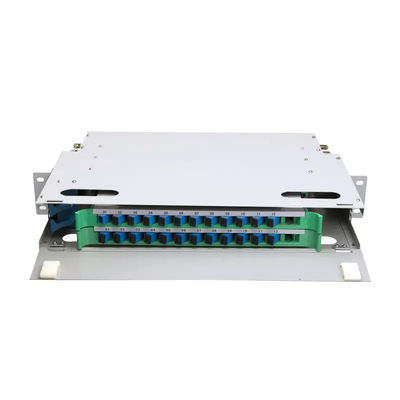

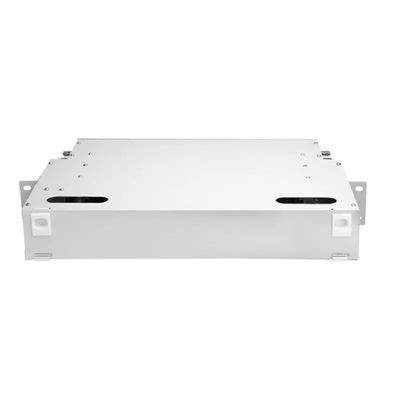

FTTH 1U Fiber Panel 24 Core 19 Inch Rack Patch Panel ODF Unit

1pcs
MOQ
18usd per pcs
Price
FTTH 1U Fiber Panel 24 Core 19 Inch Rack Patch Panel ODF Unit
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Cold Rolled Steel Sheet
Size: 485×300×72mm
Suitable Adapter: SC, FC, ST, LC
Splice Tray Max Capacity: 24 Cores
Application: 19'', 23'' Standard Distribution Frame
Color: Grey White
Installation Type: Rack Mount
Height: 1U,2U,4U Optional
Highlight:

FTTH 1U Fiber Panel

,

1U Fiber Panel

,

19 Inch Rack Patch Panel ODF

Basic Infomation
Place of Origin: Guangdong
Brand Name: Twilight Optic
Model Number: TW-ODF24
Payment & Shipping Terms
Packaging Details: 5 pcs/Carton Carton Size : 520*330*480mm G/W: 27.5KG
Delivery Time: 7-10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs per week
Product Description

24 Core 19'' 1U Rack Mount Cold Rolled Steel Fiber Distribution Frame ODF Unit



ODF Optical Distribution Frame,It is modulized design with plastic drawable trays inside. It could be pre-installedwith various kinds of fiber optic adapters and pigtails.It is with standard 19 inch size and properly designed to control the bend radius of the cable inside the enclosure to avoid extra optical loss. This patch panel is ideal for indoor fiber optic cables connection storage, distribution and management.


Features:
1. Modular design with splicing and distribution function
2. Splice tray inside changeable
3. Standard size, can be used in 19'', 23'' standard distribution frame
4. Suitable for SC, FC, ST, LC adapters
5. Front mark on the plate is easy for identification and operation
6. Max. capacity 24 cores
7. Front door and rear door for front and rear access

8. High quality cold-rolled steel material, electrostatic spraying, nice surface.



Application:
Telecommunications
Fiber to the home (FTTH)
LAN/WAN
CATV



Specification :

Capacity Height Dimension Remark
24 fibers

1U

485*300*72mm 2pc splice tray, each tray 12 fibers
48 fibers 2U 485*300*125mm 4pcs splice tray, each tray12 fibers
72 fibers 3U 485*300*178mm 6pcs splice tray, each tray12 fibers



FTTH 1U Fiber Panel 24 Core 19 Inch Rack Patch Panel ODF Unit 0

FTTH 1U Fiber Panel 24 Core 19 Inch Rack Patch Panel ODF Unit 1

FTTH 1U Fiber Panel 24 Core 19 Inch Rack Patch Panel ODF Unit 2
