6-Port Metal Dinrail Mountable Fiber Optic Din Rail Terminal Box

Negotiable
MOQ
Negotiable
Price
6-Port Metal Dinrail Mountable Fiber Optic Din Rail Terminal Box
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: 6ports SC Fiber Optic Din Rail Box
Connector: SC Or LC
Material: Cold Rolled Steel
Size: 129*130*40MM
Color: Grey White
Application: Din-rail Mounting
Basic Infomation
Place of Origin: Guangdong
Brand Name: Twilight Optic
Model Number: TW-DRB-6SC
Payment & Shipping Terms
Packaging Details: Inner box and carton box
Delivery Time: 7-15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs per week
Product Description

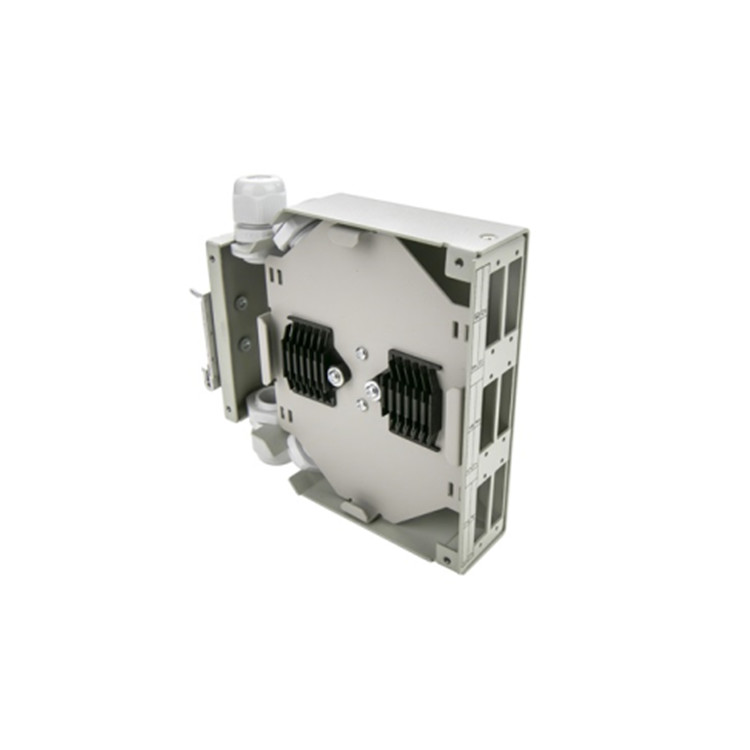

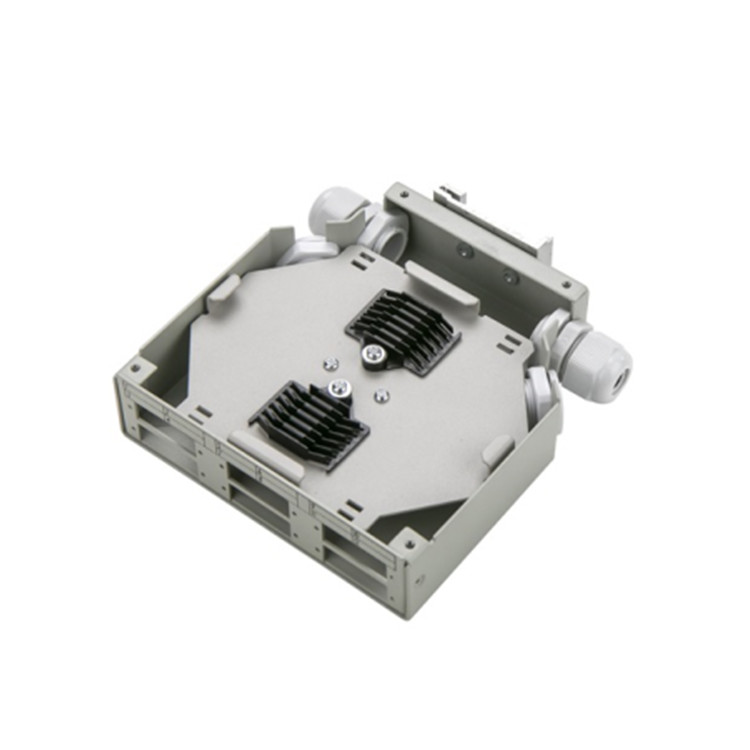

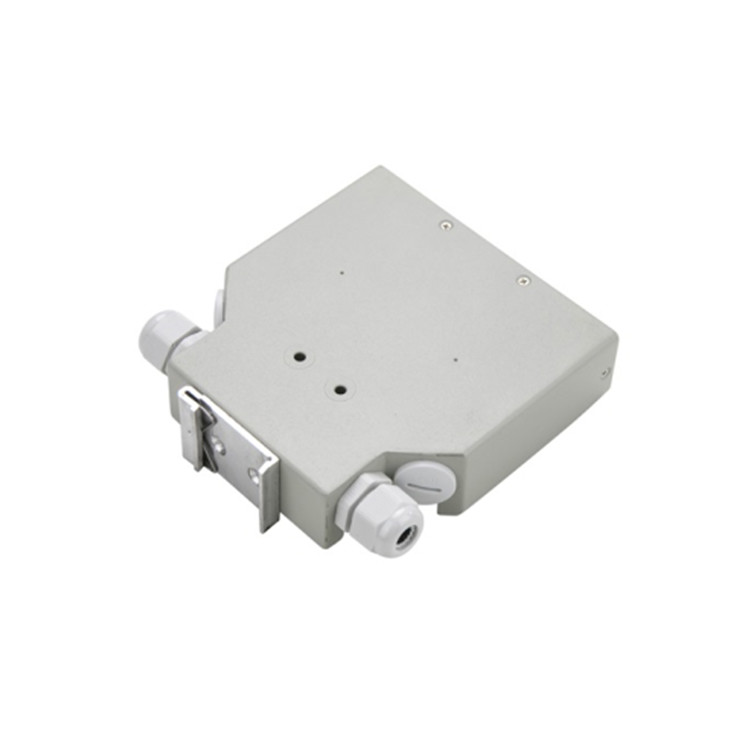

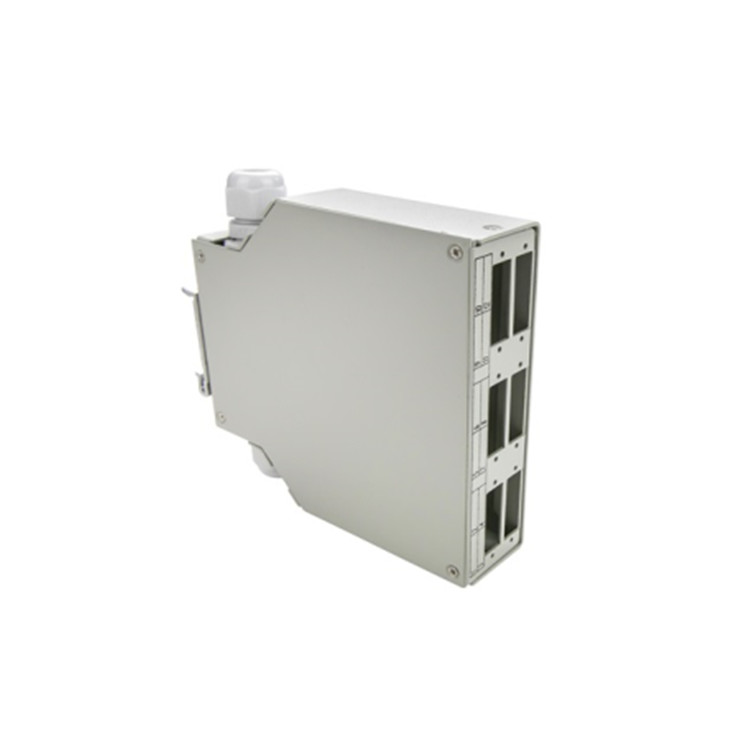

             6-Port Metal Dinrail Mountable Fiber Optic Din Rail Terminal Box

6-port industrial din-rail mount patch panels are designed for either to support direct termination or fusion splicing of the fibers

Product details

Product name 6ports SC Fiber Optic Din rail box
Connector Type Singlemode or multimode
Size 129*130*40MM
Simplex or Duplex Duplex or Quad
Connector SC or LC
Material cold rolled steel
Application Din-rail mounting
Color Grey White





Feature:

Cold-roll steel, electrostatic painting

Suitable for different adapters: FC, SC, ST, LC …

Max. 6pcs sc duplex or adapters can be loaded

Integrated splice holders (fusion splices)

2pcs cable entry/exit ports; 12pcs pigtail entry/exit ports

IP20 protection

Rear or aside DIN rail fixation

2x rear entries (PG 11 cable gland)

Grey color

Dimensions : 129*130*40MM





Application:

Suitable for Pigtail, ribbon and bunch cable connect distribution

Used for wall-mounted applications

Used in FTTH, Telecommunications, CATV etc





6-port SC Duplex Adapter LC Quad Adapter Fiber Optic Patch Panel Din Rail Box supplier6-port SC Duplex Adapter LC Quad Adapter Fiber Optic Patch Panel Din Rail Box supplier6-port SC Duplex Adapter LC Quad Adapter Fiber Optic Patch Panel Din Rail Box supplier

6-port SC Duplex Adapter LC Quad Adapter Fiber Optic Patch Panel Din Rail Box supplier
