144 Cores Optical Cable Junction Box Dome Type 6 Port Fiber Splice Closure PC Plastic
| Place of Origin | China |
|---|---|
| Brand Name | Twilight Optic |
| Model Number | TW-GJSD033 |
| Minimum Order Quantity | Negotiable |
| Price | Negotiable |
| Packaging Details | Standard export carton packing. |
| Delivery Time | 10-15 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 Piece/Pieces per Week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | GJS-D033 | Size (mm) | 475*210 |
|---|---|---|---|
| Accessible Cables | 2in, 4 Out | Cable Diameter (mm) | 10~25 |
| Maximum Core For Splice Try | 24 (single Core) | Maximum Quantity Of Splice Tray | 6 |
| Capacity(core) | 144 (single Core) | Sealing Type | Thread Mechanical Sealing |
| High Light | 144Cores Optical Cable Junction Box,Dome 6Port Fiber Splice Closure |
||
Product Description

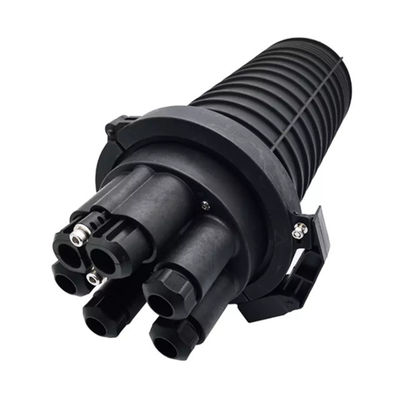

144 Cores optical cable junction box Dome Type 6 port fiber splice closure PC Plastic
Product Description
DOME type fiber optic splice closure is also called asvertical closure , it is suitable for FTTH accessing . Theinput and output are on the same side . An oval hole andfour round holes facilitates the operation . It is suitable foraerial , underground , conduct installation
Feature
Full mechanical sealing structure
High quality industrial plastic body material .

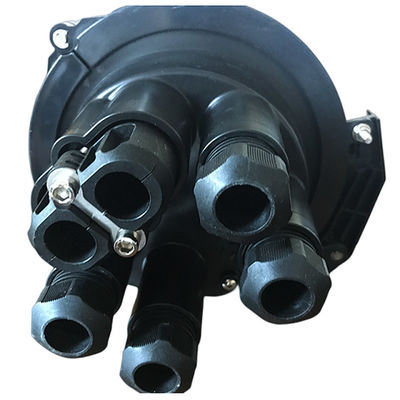

One oval hole and four round holes for cable entrancee
Suitable for cable diameter 10mm-25mm
Aerial , pole-mounting , direct buried and handheld application .
Protection level reaches IP68
360 degrees access , fiber bending > 40mm
.Maximum capacity : 144F single or 864F ribbon

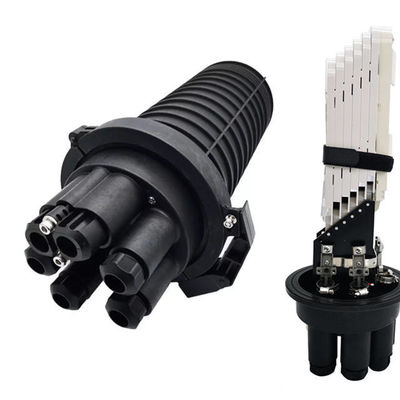

Number of trays : 6 pcs x 24F .
| Type | GJS-D033 |
| Size(mm) | 470*210 |
| Accessible cable | 2in 4out |
| Cable Diameter(mm) | 10-25 |
| Max Core for splice try | 24core |
| Max of splice tray | 6 |
| Capacity(Core) | 144Core |
