UTP Network Patch Panel Integrated RJ45 1U 24 Port Patch Panel

Negotiate
MOQ
Negotiate
Price
UTP Network Patch Panel Integrated RJ45 1U 24 Port Patch Panel
Features Gallery Product Description Request A Quote
Features
Specifications
Name: 24Port 1U Rackmount Shielded RJ45 Keystone Network Patch Panel Cat6 Cat6A Integrated Design
Application: Network Cabling System ; Telecommunication
Product Type: Blank
Color: Black
Technology: Cat5/5e; Cat6; Cat6a; DisplayPort; HDMI; USB 2.0 (High Speed)
Number Of Ports: 24Ports
Connecter Type: RJ45 Jacks
Connecter Ports: Keystone Jack Cutout
High Light:

UTP Network Patch Panel

,

Network Patch Panel RJ45

,

1U 24 Port Patch Panel

Basic Infomation
Place of Origin: China
Brand Name: Twilight Optic
Model Number: TW-PN-09-C6C6A
Payment & Shipping Terms
Packaging Details: 10 pcs/ Carton, Size:59x33x51cm, G/W:17KG
Delivery Time: 3-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/day
Product Description

1U 24Port CAT6/6A UTP Network Patch Panel Integrated RJ45 Keystones Black Loaded



Description

The TW-PN-09-C6C6A 1U Rack-Mount Shielded Blank Keystone/Multimedia Patch Panel manages and organizes the cabling in your network. The 24 blank cutouts accommodate all Tripp Lite keystone jacks, and some other keystone jacks in the market, including RJ45 Ethernet, HDMI audio/video, voice and USB applications. The rear cable manager keeps cables neat, tidy and efficiently organized on the back of the panel. Ports are clearly numbered to help you identify connections. Mounts easily into 1U of an EIA-standard 19-inch two-post rack or wall-mount rack enclosure. Made from fully shielded, heavy-duty steel. Grounding wire included.



Name 24Port 1U Rackmount Shielded RJ45 Keystone Network Patch Panel Cat6 Cat6A Integrated Design
Application Network Cabling System ; Telecommunication
Product Type Blank
Color Black
Technology Cat5/5e; Cat6; Cat6a; DisplayPort; HDMI; USB 2.0 (High Speed)
Number of Ports 24Ports
Connecter Type RJ45 Jacks
Connecter Ports Keystone Jack Cutout
Installation 19''; 24 Ports; 4Modules
Material SPCC steel with powder coating, Phosphor Bronze, PC. (Injection molding)



Features

EFFICIENT: High-density 24 port, 1U design provides space efficiency

SECURE: Rear support bar strengthens the patch panel to provide secure cable management

SPECIAL MODULE: Front Removable Module Design



The empty patch panels are available to snap in by Cat
5e and cat6 and Cat 6A keystone jacks or couplers
Label and inlaid marks are available for the identification of cabling management

Strong noise removal ability
Snap-in structure, easy to install and unload the module
Integrated Module Design

4PIN 4PIN gold pin compound design



Main Technical Parameters

IDC Phosphor Bronze, Silver Plating (20~50uiLZh)
Suitable Cable: 22, 24 and 26AWG (0.64, 0.5 and 0.4mm)
Life Span: ≥ 250
Contact Pin Phosphor Bronze
Gold Plating (20~50uiLZh)
Pin and Socket can be repeatedly use: ≥ 750
Flame Resistance PPO+PC (Injection molding) ; ISO
Contact Resistance ≤ 2.5m Ω (Normal atmospheric pressure; No bulk resistor)
Insulation resistance ≥ 1000MΩ (Normal atmospheric pressure)
Dielectric Intensity

DC 1000V (AC, 700V); No breakdown and flashover within 1min

Standard

ISO/IEC11801; TIA/EIA568



Application

Manages and organizes input and output cable connections in your network.

Customizable solution for a variety of applications, including Ethernet, voice, audio/video and USB.

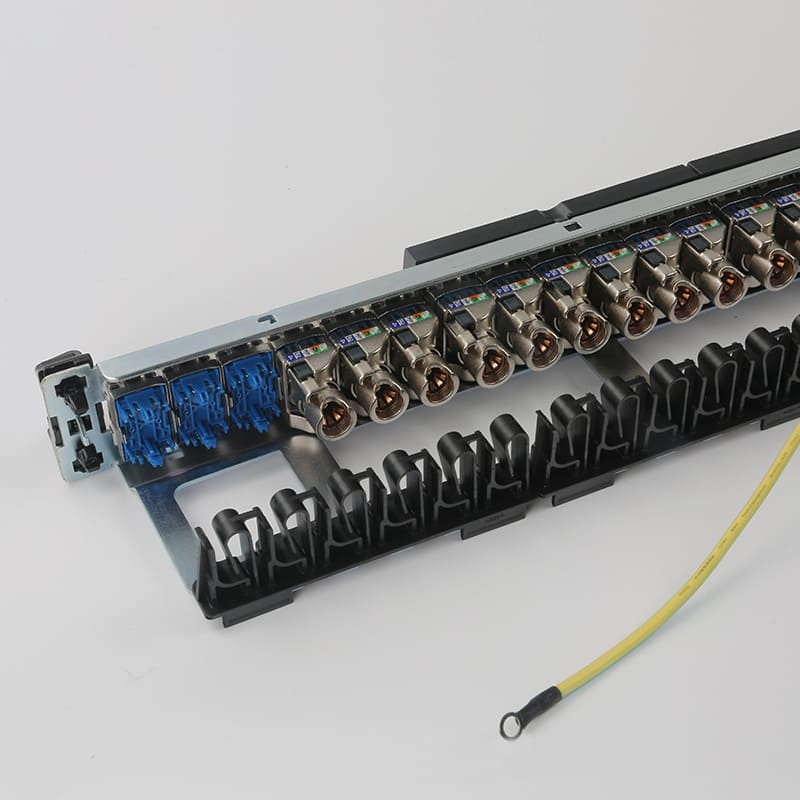

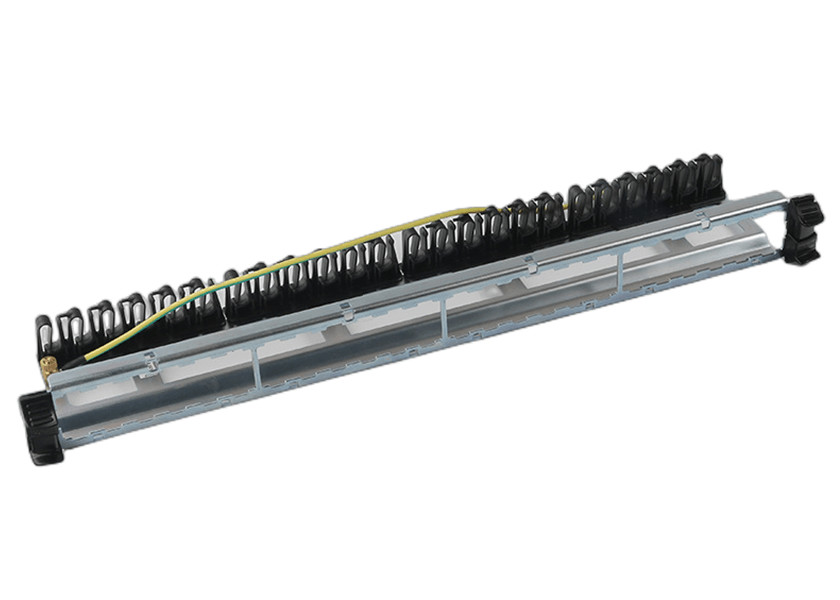

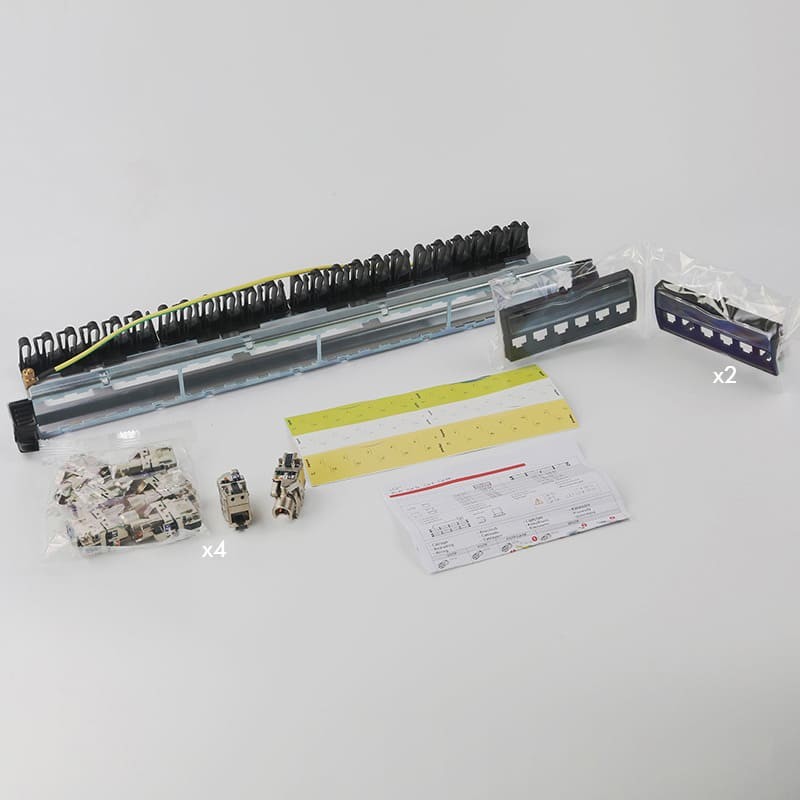

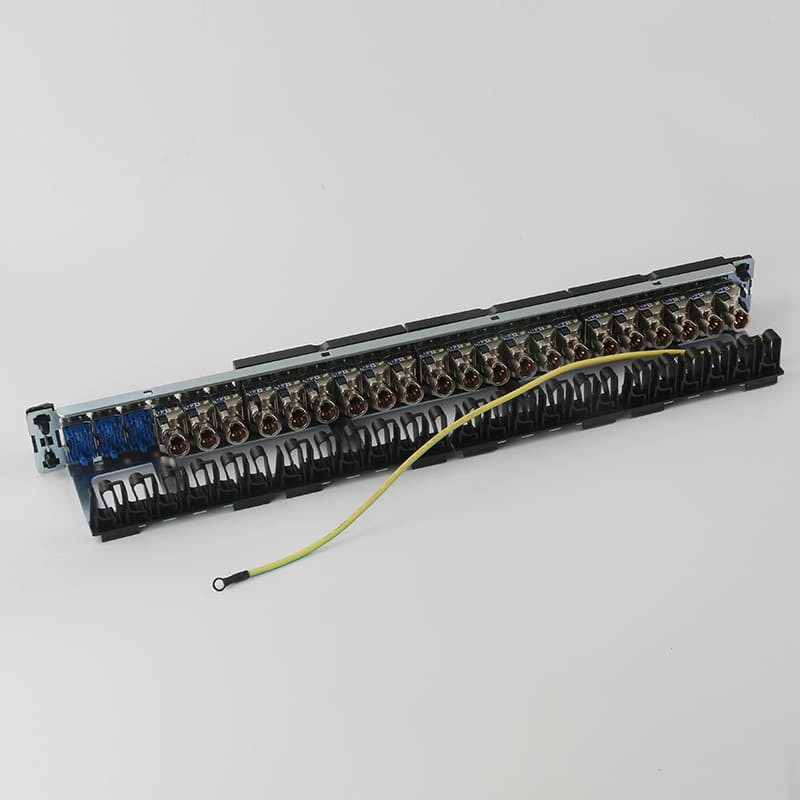

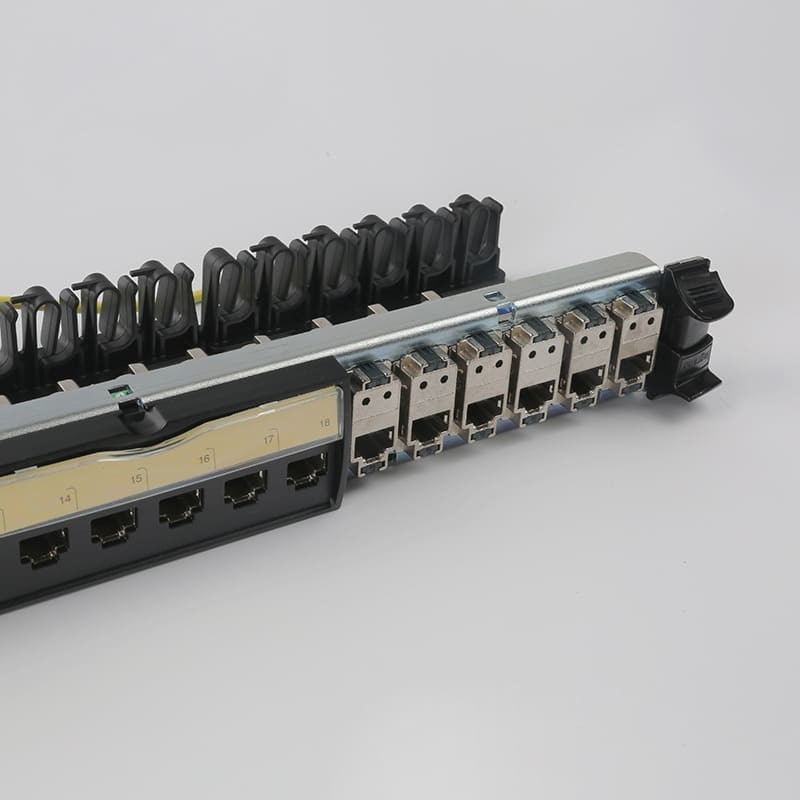

Details Picture
