RJ45 Network Patch Panel 24 Port 1U Keystone C5 / C5E C6 With Mangement Bar

Negotiate
MOQ
Negotiate
Price
RJ45 Network Patch Panel 24 Port 1U Keystone C5 / C5E C6 With Mangement Bar
Features Gallery Product Description Request A Quote
Features
Specifications
Name: 24Port 1U Rackmount Blank Keystone/Multimedia Patch Panel, RJ45 Ethernet, USB, HDMI, Cat5e/6
Application: Network Cabling System ; Telecommunication
Product Type: Blank
Color: Black
Technology: Cat5/5e; Cat6; Cat6a; DisplayPort; HDMI; USB 2.0 (High Speed)
Number Of Ports: 24Ports
Connecter Type: RJ45 Jacks
Connecter Ports: Keystone Jack Cutout
High Light:

1U Network Patch Panel

,

Network Patch Panel Keystone

,

Patch Panel 24 Port 1U

Basic Infomation
Place of Origin: China
Brand Name: Twilight Optic
Model Number: TW-P-13
Payment & Shipping Terms
Packaging Details: 10 pcs/ Carton, Size:59x33x51cm, G/W:17KG
Delivery Time: 3-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/day
Product Description

24Ports 1U Blank Network Patch Panel With Mangement Bar RJ45 Keystone C5/C5E C6



Description

The TW-P-13 24-Port 1U Rack-Mount Shielded Blank Keystone/Multimedia Patch Panel manages and organizes the cabling in your network. The 24 blank cutouts accommodate all Tripp Lite keystone jacks, and some other keystone jacks in the market, including RJ45 Ethernet, HDMI audio/video, voice and USB applications. The rear cable manager keeps cables neat, tidy and efficiently organized on the back of the panel. Ports are clearly numbered to help you identify connections. Mounts easily into 1U of an EIA-standard 19-inch two-post rack or wall-mount rack enclosure. Made from fully shielded, heavy-duty steel. Grounding wire included.



Name 24Port 1U Rackmount Blank Keystone/Multimedia Patch Panel, RJ45 Ethernet, USB, HDMI, Cat5e/6
Application Network Cabling System ; Telecommunication
Product Type Blank
Color Black
Technology Cat5/5e; Cat6; Cat6a; DisplayPort; HDMI; USB 2.0 (High Speed)
Number of Ports 24Ports
Connecter Type RJ45 Jacks
Connecter Ports Keystone Jack Cutout
Installation 19''; 24 Ports
Material SPCC steel with powder coating, Phosphor Bronze, PC. (Injection molding)



Features

Manages and Organizes a Wide Variety of Cabling
  ♦ 24 blank cutouts accommodate all Tripp Lite keystone jacks, and some other keystone jacks in the market

For use with RJ45 Ethernet, HDMI audio/video, voice, USB and other applications

Ports are numbered for easy connection identification

Fully shielded, heavy-duty steel construction
Cable Manager on Rear
  ♦ Keeps cabling neat, tidy and organized
Quick, Easy Installation

Mounts easily into 1U of EIA-standard 19 in. 2-post rack or wall-mount rack enclosure

Includes grounding wire



Main Technical Parameters

IDC Phosphor Bronze, Silver Plating (20~50uiLZh)
Suitable Cable: 22, 24 and 26AWG (0.64, 0.5 and 0.4mm)
Life Span: ≥ 250
Contact Pin Phosphor Bronze
Gold Plating (20~50uiLZh)
Pin and Socket can be repeatedly use: ≥ 750
Flame Resistance PPO+PC (Injection molding) ; ISO
Contact Resistance ≤ 2.5m Ω (Normal atmospheric pressure; No bulk resistor)
Insulation resistance ≥ 1000MΩ (Normal atmospheric pressure)
Dielectric Intensity DC 1000V (AC, 700V); No breakdown and flashover within 1min
Standard ISO/IEC11801; TIA/EIA568



Application

Manages and organizes input and output cable connections in your network.

Customizable solution for a variety of applications, including Ethernet, voice, audio/video and USB.

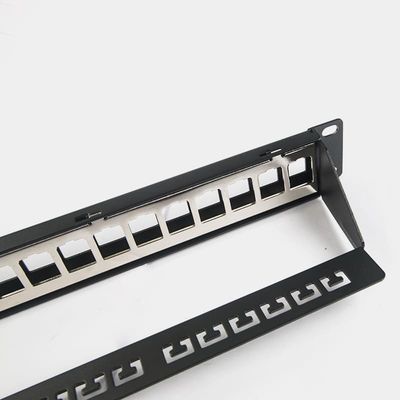

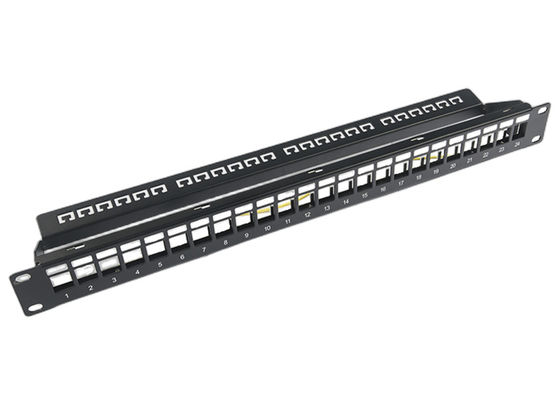

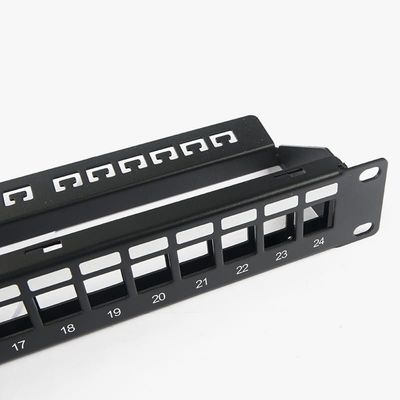

Details Picture

RJ45 Network Patch Panel 24 Port 1U Keystone C5 / C5E C6 With Mangement Bar 0



FAQ



► What’s your advantage? Why we choose you?



1) 10 Years experience of fiber optic equipment and R&D. We have the most professional techniques and team. More advantage in price.



2) Great production capacity Sustainable Supply. According to customer requirements, We support the customized include package.



3) We use 100% new materials and the best production process, in consequence our defective rate is lower than 0.01%.



► What’s the Payment?



T/T would be better with quick transfer and few bank fees. LC could also be accept, but the procedure is complex and the fee is high. You can also use Western Union and Paypal. For large quantity, sea shipping can be provided.



► Are you a factory or trading company?


We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.



► How can I get some samples?


We are honored to offer you samples. New clients are expected to pay for the courier cost, the samples are free for you, this charge will be deducted from the payment for formal order.



► When can I get the price?


We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.



► How long can I expect to get the sample?



After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3-5 workdays.



You can use your own express account or prepay us if you do not have an account.
