Black UTP 1U Keystone Patch Panel 24 Port CAT6 Blank RJ45 Jacks

Black UTP 1U Keystone Patch Panel 24 Port CAT6 Blank RJ45 Jacks
Features Gallery Product Description Request A Quote
Name: 24-Port 1U Rack-Mount Shielded Blank KeystonenJack Network Patch Panel RJ45 Cat6
Application: Network Cabling System ; Telecommunication
Product Type: Blank
Color: Black
Technology: Cat5/5e; Cat6; Cat6a; DisplayPort; HDMI; USB 2.0 (High Speed)
Number Of Ports: 24Ports
Connecter Type: RJ45 Jacks
Connecter Ports: Keystone Jack Cutout
High Light:

UTP 1U Keystone Patch Panel


1U Keystone Patch Panel


UTP Patch Panel 24 Port CAT6

Basic Infomation
Place of Origin: China
Brand Name: Twilight Optic
Model Number: TW-P-07
Payment & Shipping Terms
Packaging Details: 10 pcs/ Carton, Size:59x33x51cm, G/W:17KG
Delivery Time: 3-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/day
Product Description

24-Port CAT6 UTP Network Patch Panel Blank 1U Keystones Black RJ45 Jacks



The TW-P-07 24-Port 1U Rack-Mount Shielded Blank Keystone/Multimedia Patch Panel manages and organizes the cabling in your network. The 24 blank cutouts accommodate all Tripp Lite keystone jacks, and some other keystone jacks in the market, including RJ45 Ethernet, HDMI audio/video, voice and USB applications. The rear cable manager keeps cables neat, tidy and efficiently organized on the back of the panel. Ports are clearly numbered to help you identify connections. Mounts easily into 1U of an EIA-standard 19-inch two-post rack or wall-mount rack enclosure. Made from fully shielded, heavy-duty steel. Grounding wire included.


Name 24-Port 1U Rack-Mount Shielded Blank KeystonenJack Network Patch Panel RJ45 Cat6
Application Network Cabling System ; Telecommunication
Product Type Blank
Color Black
Technology Cat5/5e; Cat6; Cat6a; DisplayPort; HDMI; USB 2.0 (High Speed)
Number of Ports 24Ports
Connecter Type RJ45 Jacks
Connecter Ports Keystone Jack Cutout
Installation 19''; 24 Ports; 3Groups, 8 Keystone Jack/Group
Material SPCC steel with powder coating, Phosphor Bronze, PC. (Injection molding)



► EASY IDENTIFICATION: Bold numbering of the ports on the front which are organized in groups of 8

EFFICIENT: High-density 24 port, 1U design provides space efficiency

SECURE: Rear support bar strengthens the patch panel to provide secure cable management


Main Technical Parameters

IDC Phosphor Bronze, Silver Plating (20~50uiLZh)
Suitable Cable: 22, 24 and 26AWG (0.64, 0.5 and 0.4mm)
Life Span: ≥ 250
Contact pin Phosphor Bronze
Gold Plating (20~50uiLZh)
Pin and Socket can be repeatedly use: ≥ 750
Flame Resistance PPO+PC (Injection molding) ; ISO
Contact Resistance ≤ 2.5m Ω (Normal atmospheric pressure; No bulk resistor)
Insulation Resistance ≥ 1000MΩ (Normal atmospheric pressure)
Dielectric Intensity

DC 1000V (AC, 700V); No breakdown and flashover within 1min


ISO/IEC11801; TIA/EIA568



Manages and organizes input and output cable connections in your network.

Customizable solution for a variety of applications, including Ethernet, voice, audio/video and USB.

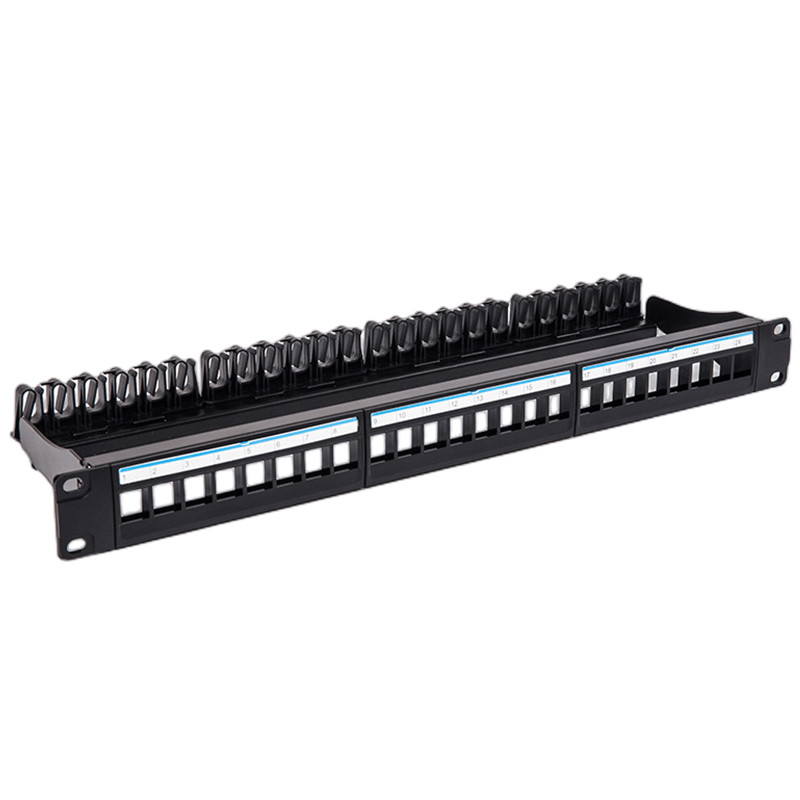

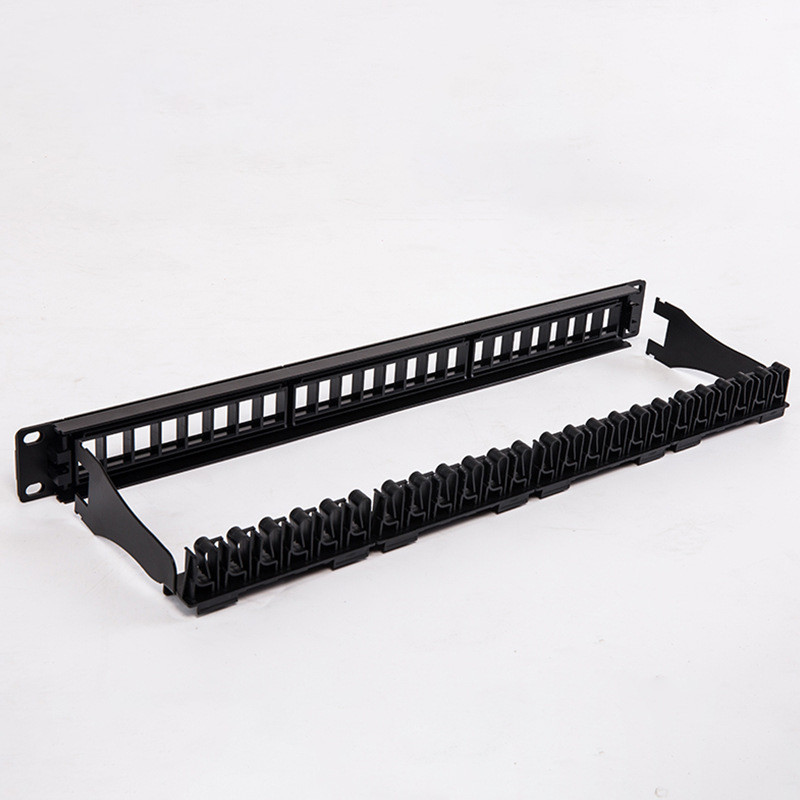

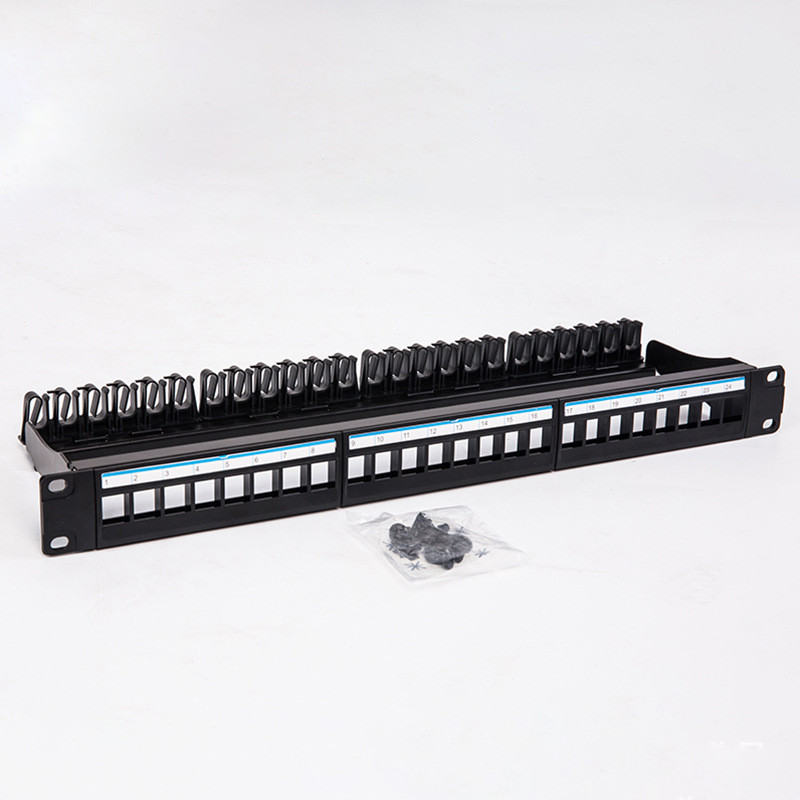

Details Picture

Black UTP 1U Keystone Patch Panel 24 Port CAT6 Blank RJ45 Jacks 0




► What’s your advantage? Why we choose you?


1) 10 Years experience of fiber optic equipment and R&D. We have the most professional techniques and team. More advantage in price.


2) Great production capacity Sustainable Supply. According to customer requirements, We support the customized include package.


3) We use 100% new materials and the best production process, in consequence our defective rate is lower than 0.01%.


► What’s the Payment?


T/T would be better with quick transfer and few bank fees. LC could also be accept, but the procedure is complex and the fee is high. You can also use Western Union and Paypal. For large quantity, sea shipping can be provided.


► Are you a factory or trading company?

We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.


► How can I get some samples?

We are honored to offer you samples. New clients are expected to pay for the courier cost, the samples are free for you, this charge will be deducted from the payment for formal order.


► When can I get the price?

We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.


► How long can I expect to get the sample?


After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3-5 workdays.


You can use your own express account or prepay us if you do not have an account.
